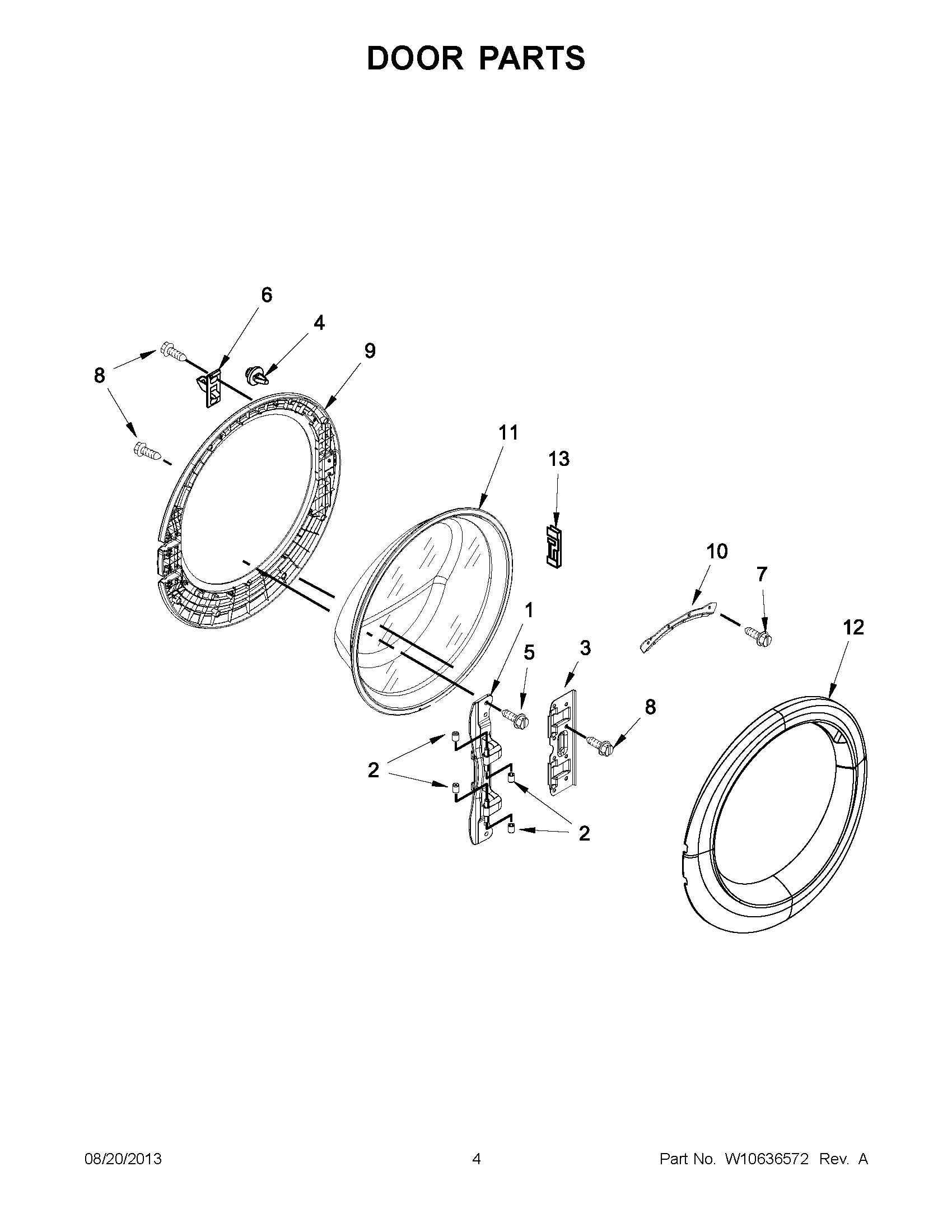

7MWFW86HEBC0 03 – DOOR PARTS

Products

Position	Product
1	HINGE
2	WPW10208398 Whirlpool Hinge Pin Cap
3	WPW10208419 Whirlpool Plate
4	8572266 Whirlpool Bumper Assembly
5	SCREW
6	WPW10488048 Whirlpool Strike
7	W11230114 Whirlpool Screw Assembly
8	WP8534022 Whirlpool Screw
9	WPW10208275 Whirlpool Inner Door Assembly
10	W10295703 Whirlpool Clamp Assembly
11	WPW10208263 Whirlpool Glass Door
12	DOOR, OUTER ASSEMBLY
13	CLAMP, GLASS SUPPORT
