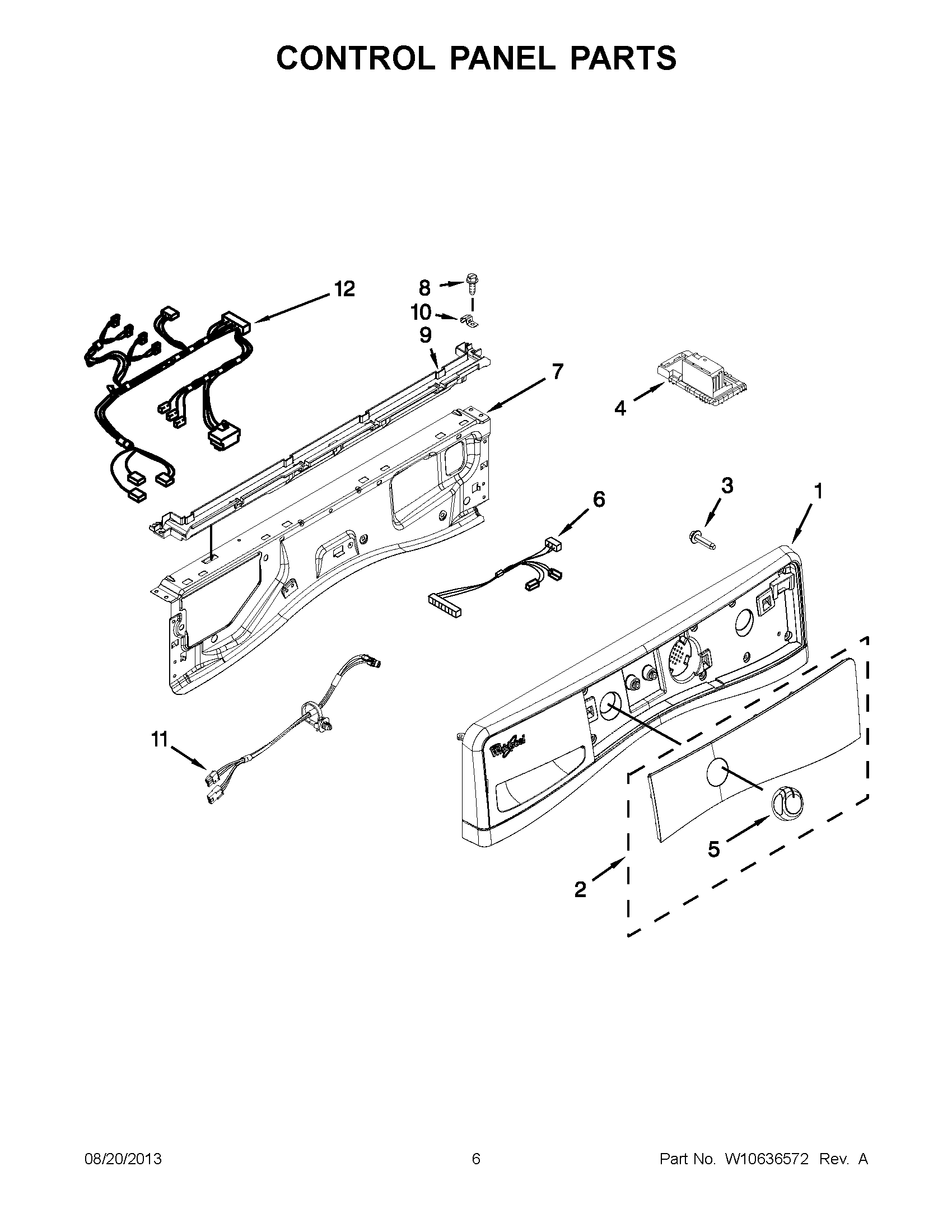

7MWFW86HEBC0 04 – CONTROL PANEL PARTS

7MWFW86HEBC0 04 – CONTROL PANEL PARTS

Written by

in

7MWFW86HEBC0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONSOLE (CHROME SHADOW)
2WPW10558235 Whirlpool Control Panel
3W10589828 Whirlpool Screw
4CONTROL UNIT, CENTRAL
5KNOB ASSEMBLY
6WPW10486216 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11WPW10486571 Whirlpool Wire Harness
12W10422436 Whirlpool Wire Harness
