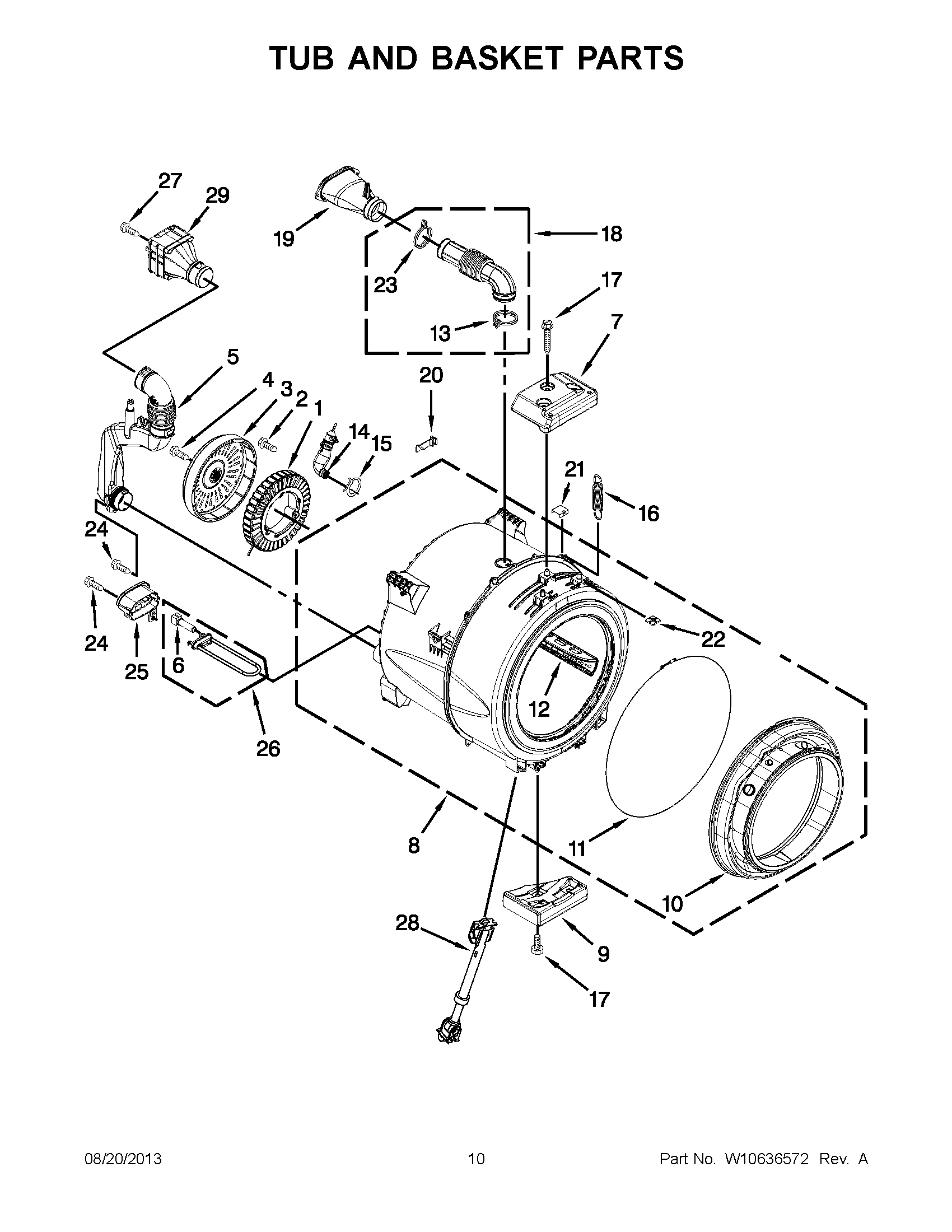

7MWFW86HEBC0 06 – TUB AND BASKET PARTS

7MWFW86HEBC0 06 – TUB AND BASKET PARTS

Written by

in

7MWFW86HEBC0 06 – TUB AND BASKET PARTS

Products

PositionProduct
1W10365754 Whirlpool Stator
2WPW10253476 Whirlpool Screw
3W10365755 Whirlpool Rotor
4W11253212 Whirlpool Dryer Screw
5PIPE, VENTILATION ASSEMBLY
6WPW10467289 Whirlpool Sensor
7W10452854 Whirlpool Counterweight
8WPW10737541 Whirlpool Outer Tub Assembly
9COUNTERWEIGHT, BOTTOM
10W11106747 Whirlpool Washer Front Load Door Boot
11W11218344 Whirlpool Boot Seal Retaining Ring
12W10697830 Whirlpool Baffle
13W10353599 Whirlpool Hose Clamp
14WPW10260500 Whirlpool Trap Assembly
15WP285655 Whirlpool Hose Clamp
16W11266650 Whirlpool Spring
17W10261496 Whirlpool Screw
18WPW10568614 Whirlpool Hose
19WPW10352818 Whirlpool Vent Pipe
20W10316388 Whirlpool Clip Assembly
21WP8540092 Whirlpool Clamp
22WP8182512 Whirlpool Nut Assembly
23W10273034 Whirlpool Clamp
24W10306501 Whirlpool Screw
25W10318155 Whirlpool Cover
26WPW10426377 Whirlpool Heater Assembly
27WP8540282 Whirlpool Screw
28SHOCK-ABSR
29FAN, VENTILATION ASSEMBLY
