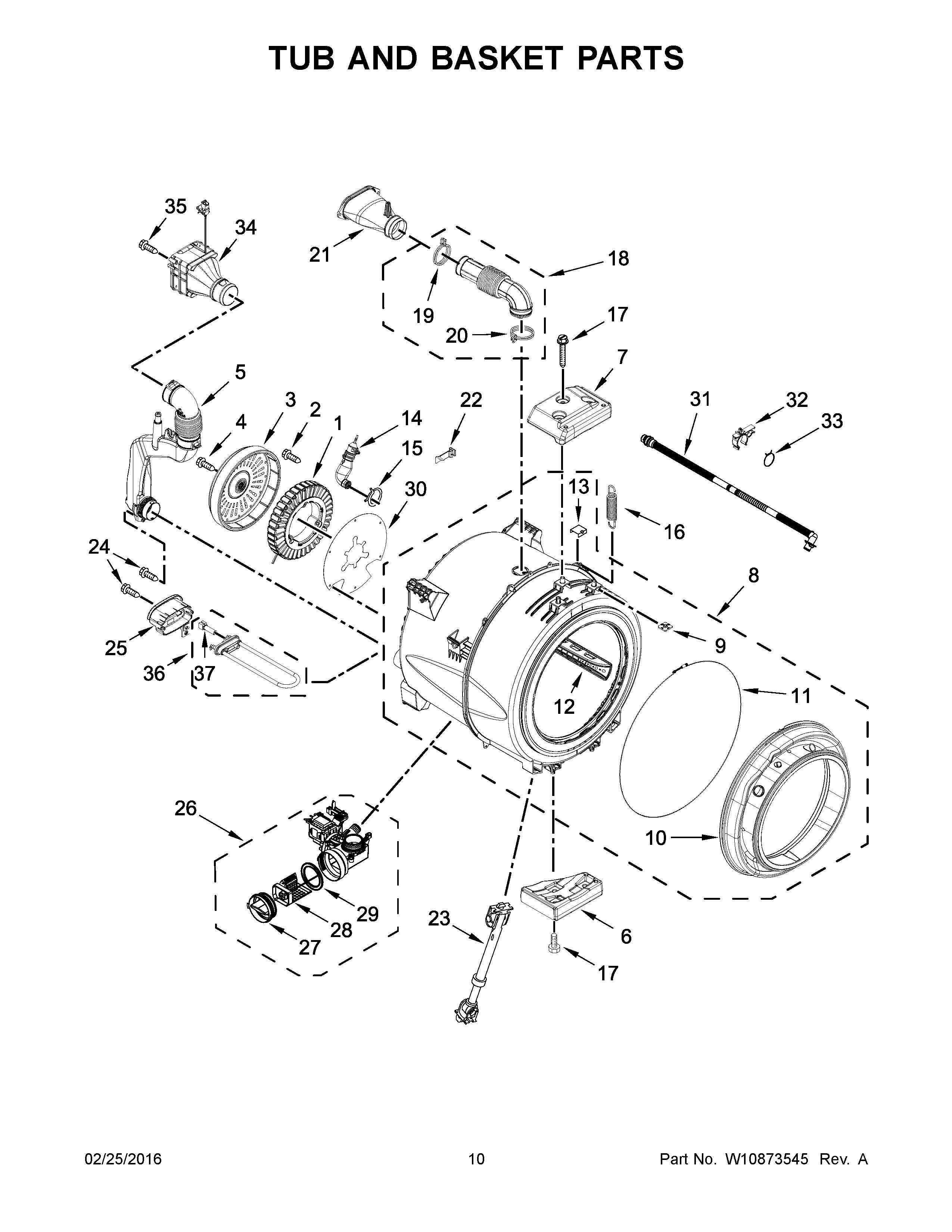

7MWFW90HEFC0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	W10870751 Whirlpool Stator
2	WPW10253476 Whirlpool Screw
3	WPW10544980 Whirlpool Rotor
4	W11253212 Whirlpool Dryer Screw
5	PIPE, VENTILATION ASSEMBLY
6	W10237535 Whirlpool Counterweight
7	W10253014 Whirlpool Counterweight
8	W10901030 Whirlpool Tub Assembly
9	WP8182512 Whirlpool Nut Assembly
10	W11106747 Whirlpool Washer Front Load Door Boot
11	W11218344 Whirlpool Boot Seal Retaining Ring
12	WPW10597205 Whirlpool Washer Drum Baffle
13	W10793364 Whirlpool Clamp
14	W10903220 Whirlpool Trap Assembly
15	CLAMP, HOSE
16	W11266650 Whirlpool Spring
17	W10261496 Whirlpool Screw
18	WPW10568614 Whirlpool Hose
19	W10273034 Whirlpool Clamp
20	W10353599 Whirlpool Hose Clamp
21	WPW10352818 Whirlpool Vent Pipe
22	W10316388 Whirlpool Clip Assembly
23	SHOCK-ABSR
24	W10306501 Whirlpool Screw
25	W10318155 Whirlpool Cover
26	WPW10605427 Whirlpool Washer Drain Pump
27	W11568579 Whirlpool Cap
28	W11712579 Whirlpool Filter
29	W11673307 Whirlpool Washer Seal
30	W10870753 Whirlpool Shield
31	WPW10562025 Whirlpool Hose
32	W10441646 Whirlpool Clip Assembly
33	WP285655 Whirlpool Hose Clamp
34	WPW10434964 Whirlpool Fan Assembly
35	WP8540282 Whirlpool Screw
36	HEATER
37	WPW10467289 Whirlpool Sensor
