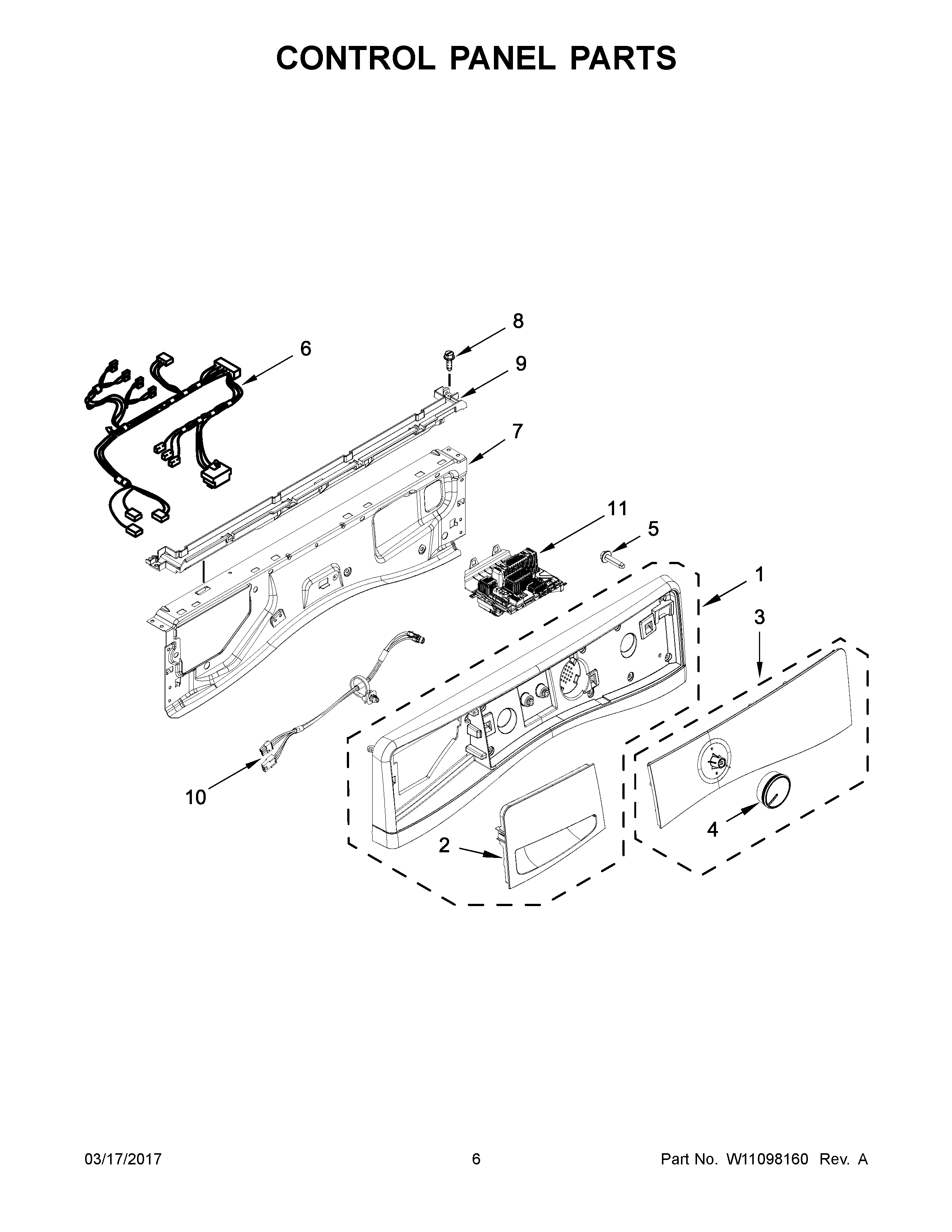

7MWFW90HEFC1 04 – CONTROL PANEL PARTS

Products

Position	Product
1	W11218392 Whirlpool Console
1A	ASSEMBLY, CONSOLE (CHROME SHADOW)
2	W11223724 Whirlpool Handle
2A	HANDLE, DRAWER (CHROME SHADOW)
3A	W11213905 Whirlpool Control Panel
3	W11213904 Whirlpool Control Panel
4	W10875909 Whirlpool Timer Knob
5	W10589828 Whirlpool Screw
6	W10685628 Whirlpool Wire Harness
7	W10208197 Whirlpool Bracket
8	WP489464 Whirlpool Refrigerator Screw
9	WPW10653575 Whirlpool Channel
10	WPW10442440 Whirlpool Wire Harness
11	W11201287-includeCORE Whirlpool W11201287 Washer Electronic Control Board + Core
