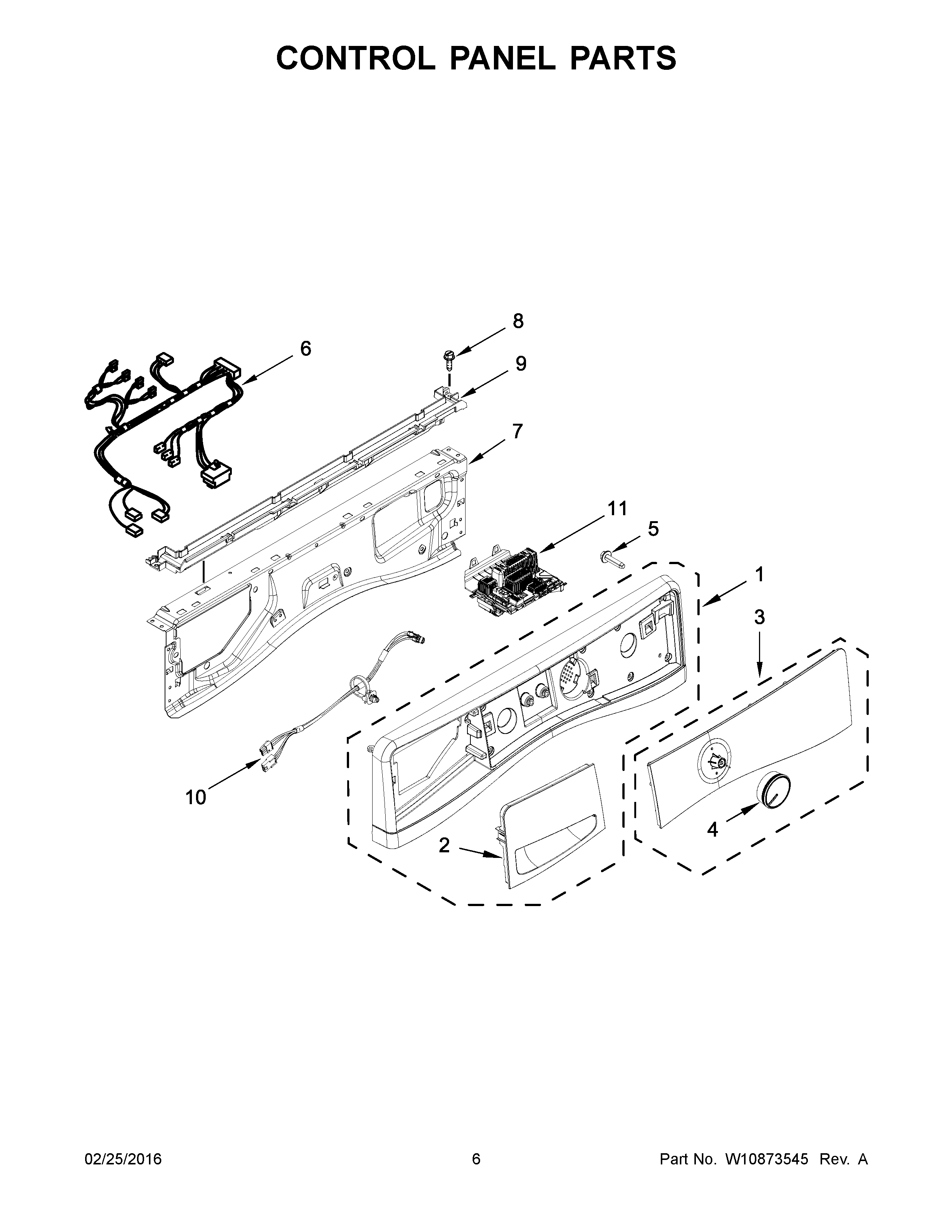

7MWFW90HEFW0 04 – CONTROL PANEL PARTS

7MWFW90HEFW0 04 – CONTROL PANEL PARTS

Written by

in

7MWFW90HEFW0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1W11218392 Whirlpool Console
1AASSEMBLY, CONSOLE (CHROME SHADOW)
2W11223724 Whirlpool Handle
2AHANDLE, DRAWER (CHROME SHADOW)
3AW11213905 Whirlpool Control Panel
3W11213904 Whirlpool Control Panel
4W10875909 Whirlpool Timer Knob
5W10589828 Whirlpool Screw
6W10685628 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10WPW10442440 Whirlpool Wire Harness
11W11201287-includeCORE Whirlpool W11201287 Washer Electronic Control Board + Core
