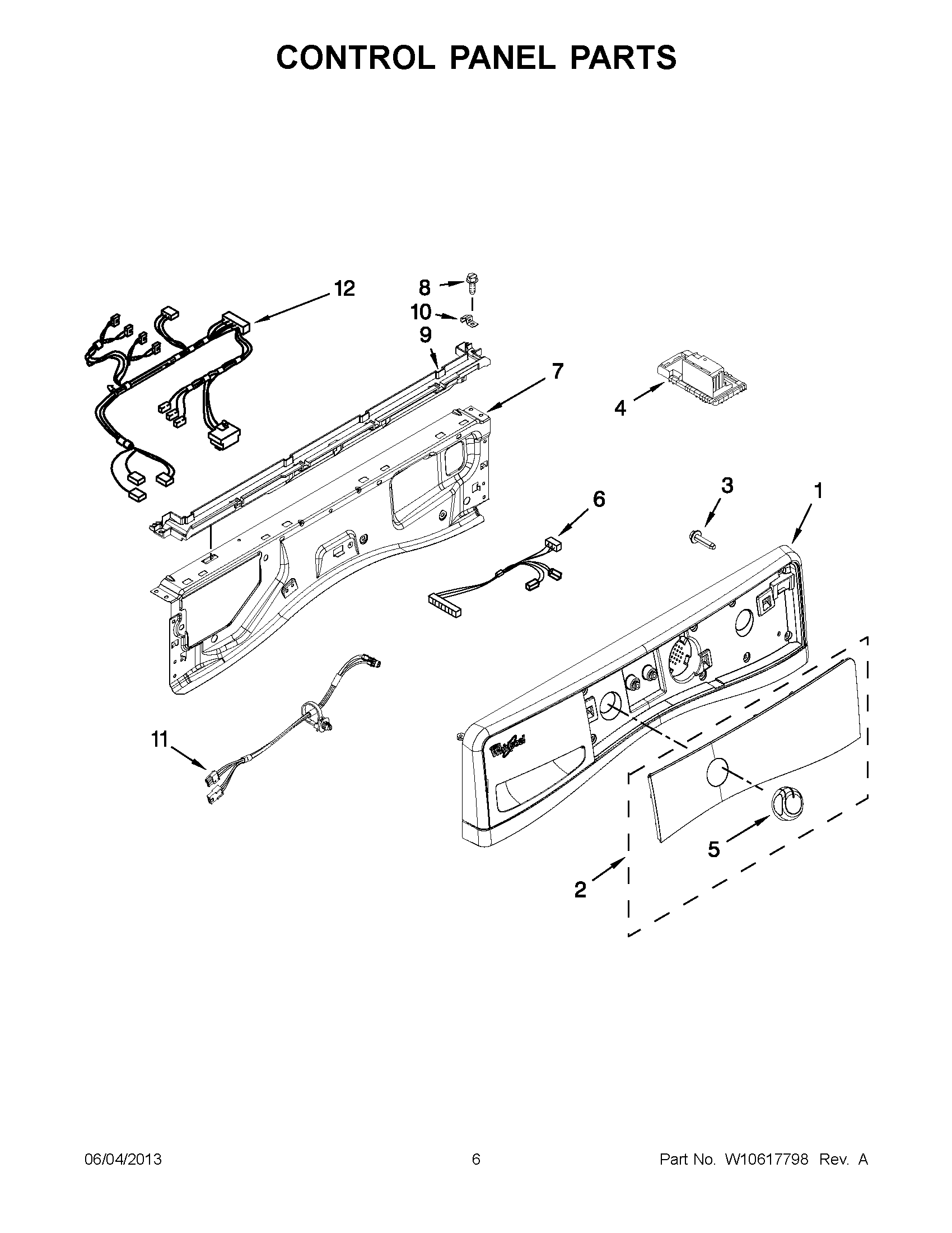

7MWFW94HEBU0 03 – CONTROL PANEL PARTS

7MWFW94HEBU0 03 – CONTROL PANEL PARTS

Written by

in

7MWFW94HEBU0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10858319 Whirlpool Console
2WPW10570749 Whirlpool Control Panel
3W11501418 Whirlpool Refrigerator Screw
4W10422889-includeCORE Whirlpool W10422889 Washer Electronic Control Board + Core
5KNOB ASSEMBLY
6HARNESS, UI JUMPER
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11W10485684 Whirlpool Wire Harness
12W10422437 Whirlpool Wire Harness
