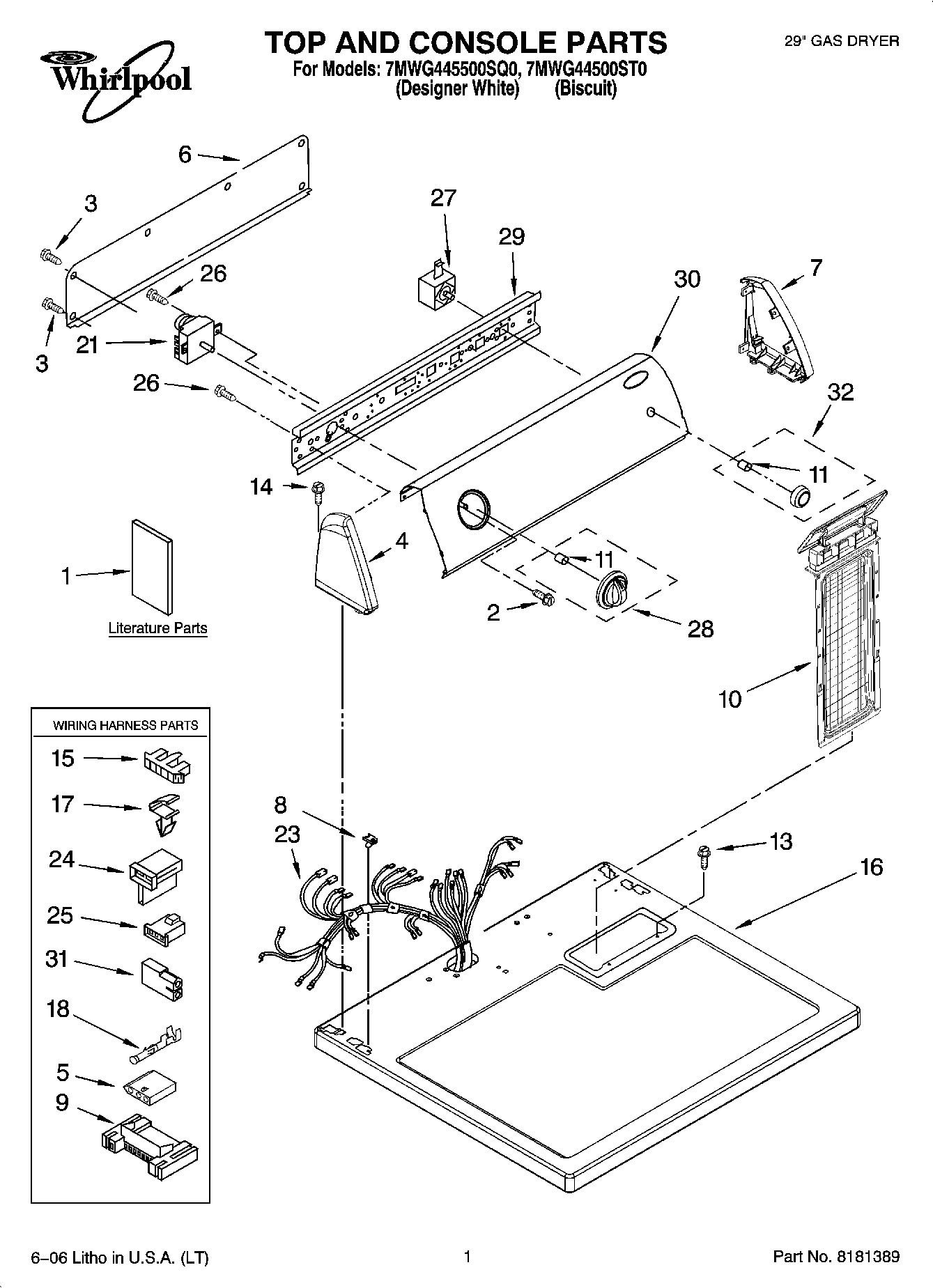

7MWG44500ST0 01 – TOP AND CONSOLE PARTS

7MWG44500ST0 01 – TOP AND CONSOLE PARTS

Written by

in

7MWG44500ST0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Sheet, Cycle Feature
1Use And Care Guide
1Installation Instructions
1Wiring Diagram
1WPL 677818
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (Biscuit)
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7Cap, End (R.H.) (Biscuit)
7W10820038 Whirlpool Endcap
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10WP8557862 Whirlpool Screen
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
21WP3976584 Whirlpool Timer Assembly
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP90767 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28WP8566061 Whirlpool Knob
28Timer Knob Assembly (Biscuit)
29Bracket, Control
30Panel, Control (White)
30Panel, Control (Biscuit)
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32Knob, Push-To-Start (Biscuit)
32WP8566065 Whirlpool Knob
