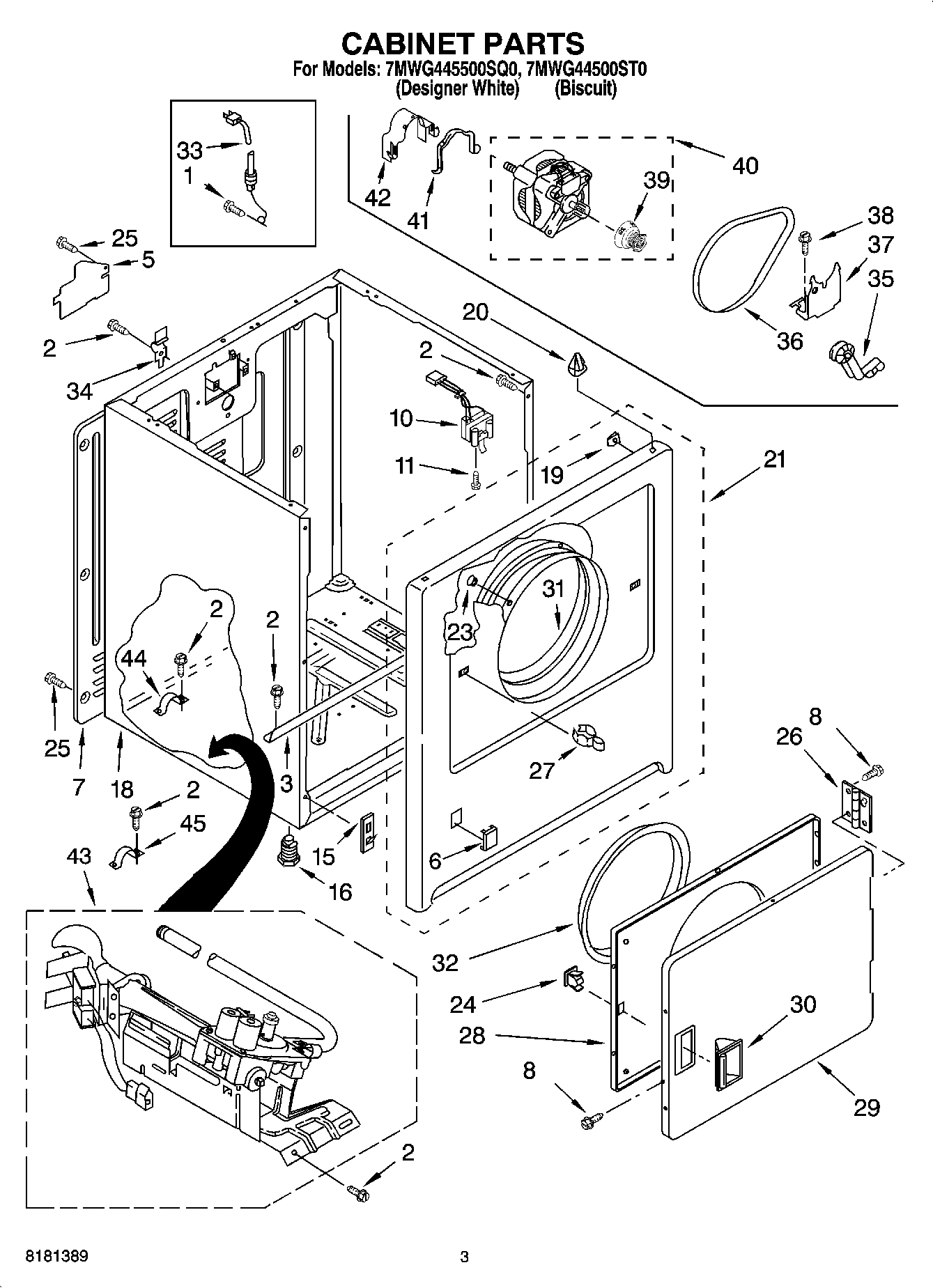

7MWG44500ST0 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	Plug, Front Panel (Biscuit)
6	Plug, Front Panel (White)
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
10	WP3406102 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
18	Cabinet (Biscuit)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (Biscuit)
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	WP693995 Whirlpool Screw
26	WP348023 Whirlpool Hinge
27	279570 Whirlpool Dryer Door Latch Kit
28	280077 Whirlpool Door
29	WP348205 Whirlpool Door
29	3978598 Whirlpool Door
30	WP686711 Whirlpool Door Handle
30	3978592 Whirlpool Handle
31	279264 Whirlpool Bearing and Seal Kit
32	W11613302 Whirlpool Door Seal
33	W11222083 Whirlpool Power Cord
34	WP8066217 Whirlpool Hinge
35	WP691366 Whirlpool Dryer Idler Pulley Assembly
36	341241 Whirlpool Dryer Drum Belt
37	WP348780 Whirlpool Base
38	3400500 Whirlpool Screw
39	WP8066184 Whirlpool Dryer Motor Pulley
40	279827 Whirlpool Dryer Drive Motor
41	WP660658 Whirlpool Clamp
42	WP3404162 Whirlpool Clamp
43	W10823508 Whirlpool Gas Burner
45	341029 Whirlpool Clamp
