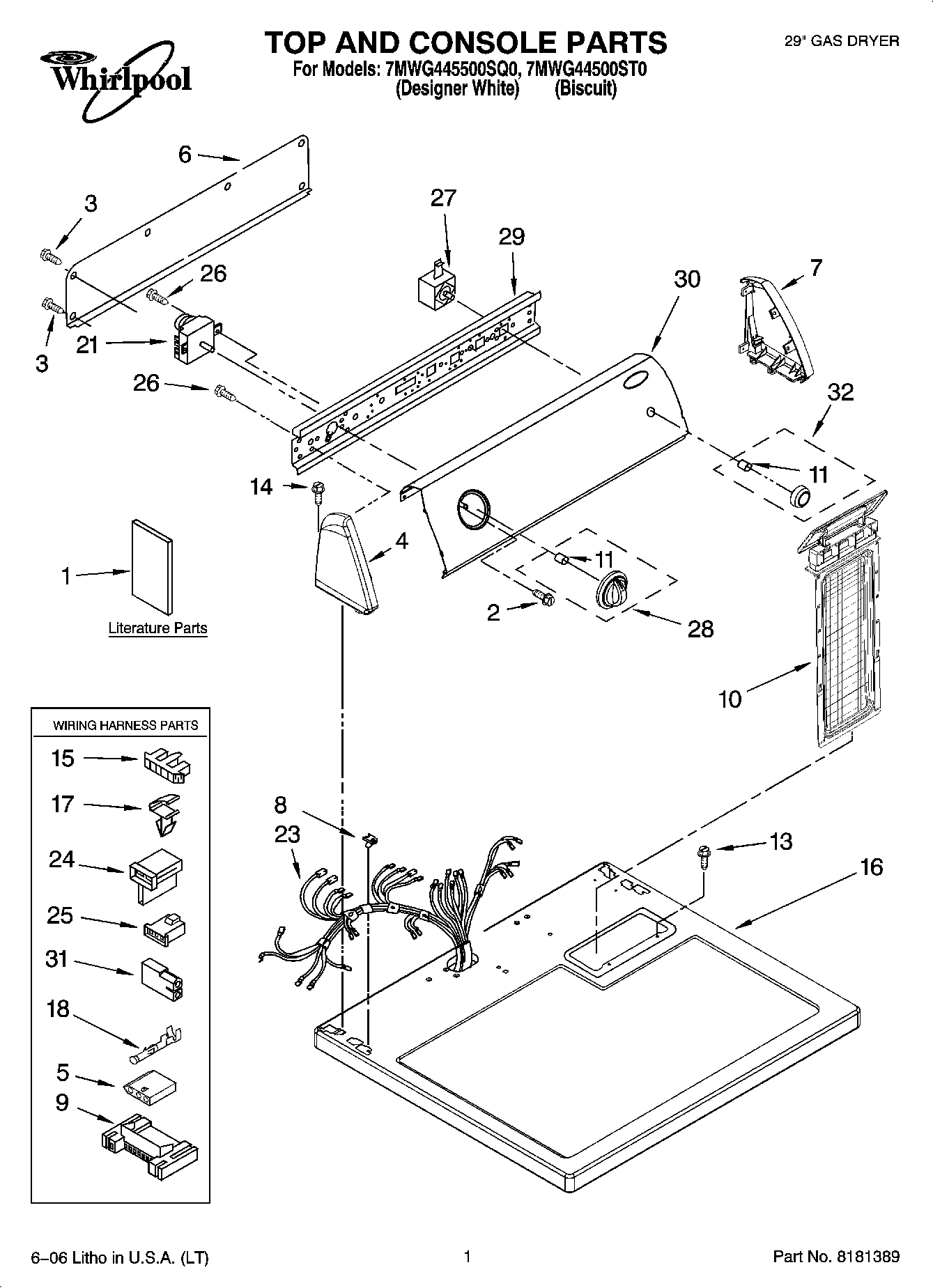

7MWG445500SQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WPL 677818
1	Wiring Diagram
1	Installation Instructions
1	Use And Care Guide
1	Sheet, Cycle Feature
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	3400859 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (Biscuit)
5	3936144 Whirlpool Connector
6	W10103406 Whirlpool Rear Panel
7	Cap, End (R.H.) (Biscuit)
7	W10820038 Whirlpool Endcap
8	WP357213 Whirlpool Hinge Stopper
9	3395683 Whirlpool Connector
10	WP8557862 Whirlpool Screen
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top
16	Top
17	WP3394427 Whirlpool Clip
18	WP94614 Whirlpool Terminal
21	WP3976584 Whirlpool Timer Assembly
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	WP90767 Whirlpool Screw
27	WP3977456 Whirlpool Start Switch
28	WP8566061 Whirlpool Knob
28	Timer Knob Assembly (Biscuit)
29	Bracket, Control
30	Panel, Control (Biscuit)
30	Panel, Control (White)
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	Knob, Push-To-Start (Biscuit)
32	WP8566065 Whirlpool Knob
