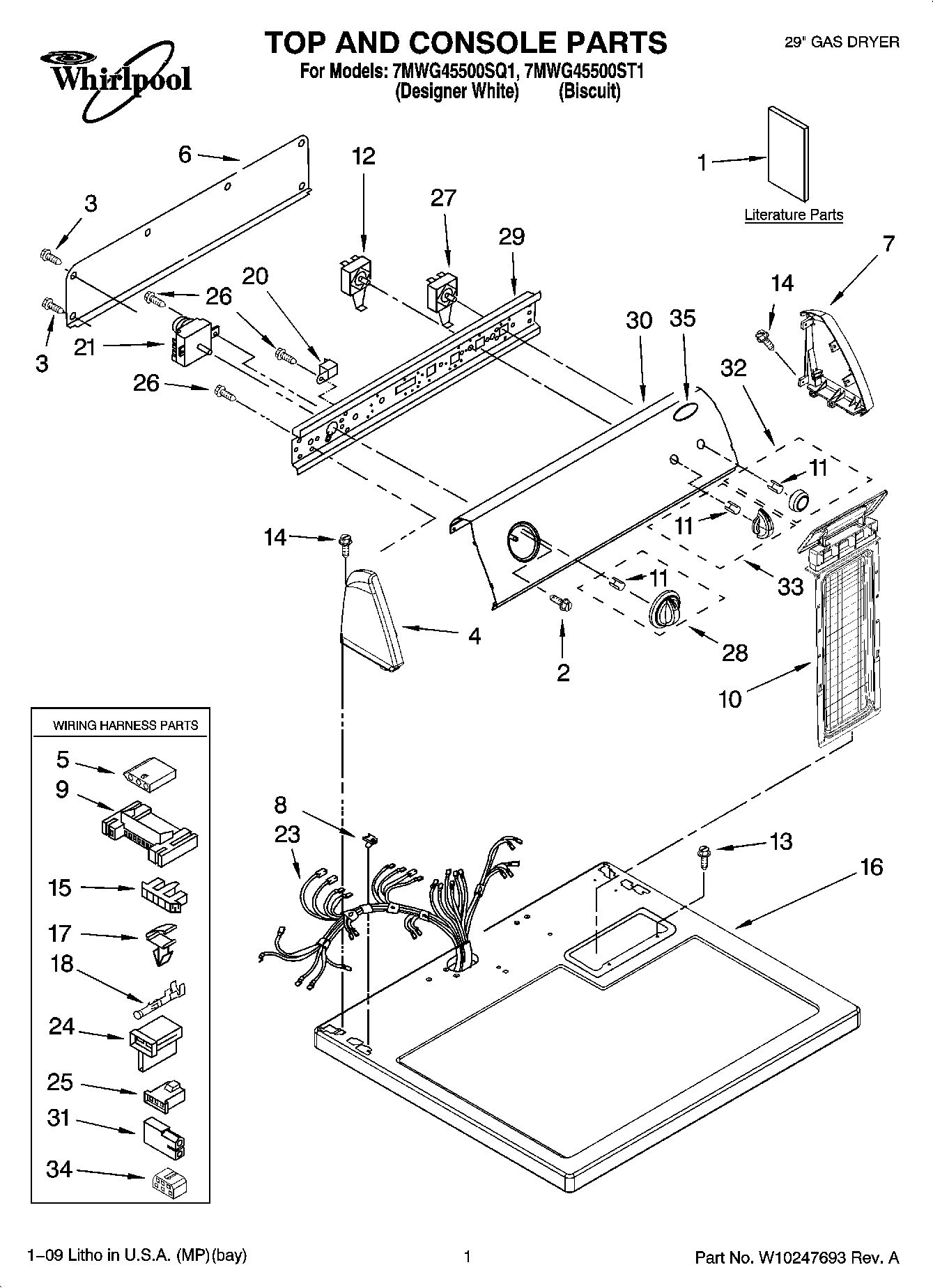

7MWG45500SQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	Sheet, Cycle Feature
1	Use And Care Guide
1	Installation Instructions
2	3400859 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
5	3936144 Whirlpool Connector
6	W10103406 Whirlpool Rear Panel
7	WPL 8271362
7	W10820038 Whirlpool Endcap
8	WP357213 Whirlpool Hinge Stopper
9	3395683 Whirlpool Connector
10	WP8557862 Whirlpool Screen
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	3405152 Whirlpool Switch Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top
16	Top
17	WP3394427 Whirlpool Clip
18	WP94614 Whirlpool Terminal
20	WP694419 Whirlpool Buzzer Adjuster
21	WPW10185969 Whirlpool Timer
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	WP90767 Whirlpool Screw
27	WP3977456 Whirlpool Start Switch
28	WP8566061 Whirlpool Knob
28	Timer Knob Assembly (Biscuit)
29	Bracket, Control
30	Panel, Control (White)
30	Panel, Control (Biscuit)
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	WP8566065 Whirlpool Knob
32	Knob, Push-To-Start (Biscuit)
33	Knob, Control (B
33	Knob, Control
34	Block, Disconnect
35	WPL 3400985
