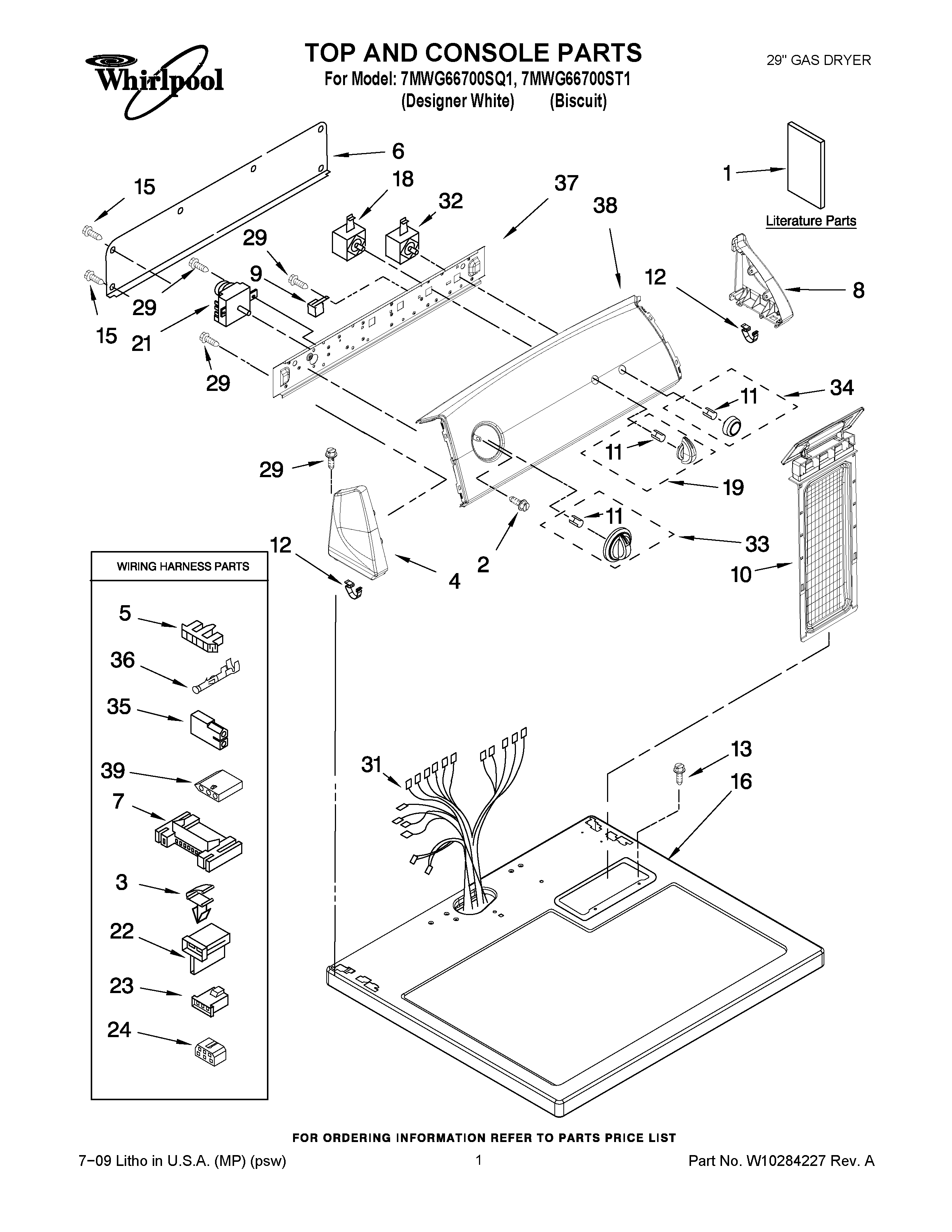

7MWG66700SQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	Installation Instructions
1	Sheet, Cycle Feature
1	Use And Care Guide
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.) (Includes Item 19)
4	WP8565957 Whirlpool Endcap Assembly
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (Includes Item 19)
8	WP8565954 Whirlpool Endcap
9	WP694419 Whirlpool Buzzer Adjuster
10	Screen, Lint (Biscuit)
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP8312709 Whirlpool Endcap Clip
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	WP8563663 Whirlpool Top Assembly
16	Top (Biscuit)
18	WP3399639 Whirlpool Switch
19	Knob, Control
19	Knob, Control (B
21	WPW10185981 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
24	Block, Disconnect
29	WP90767 Whirlpool Screw
31	W10740201 Whirlpool Wire Harness
32	WP3398095 Whirlpool Dryer Start Relay
33	WP8566061 Whirlpool Knob
33	Timer Knob Assembly (Biscuit)
34	WP8566073 Whirlpool Appliance Knob
34	8566076 Whirlpool Knob Assembly
35	Receptacle, Latching (2-Way) (Uses Terminal 94614)
36	WP94614 Whirlpool Terminal
37	8566052 Whirlpool Bracket
38	Panel, Control (White)
38	Panel, Control (Biscuit)
39	3936144 Whirlpool Connector
