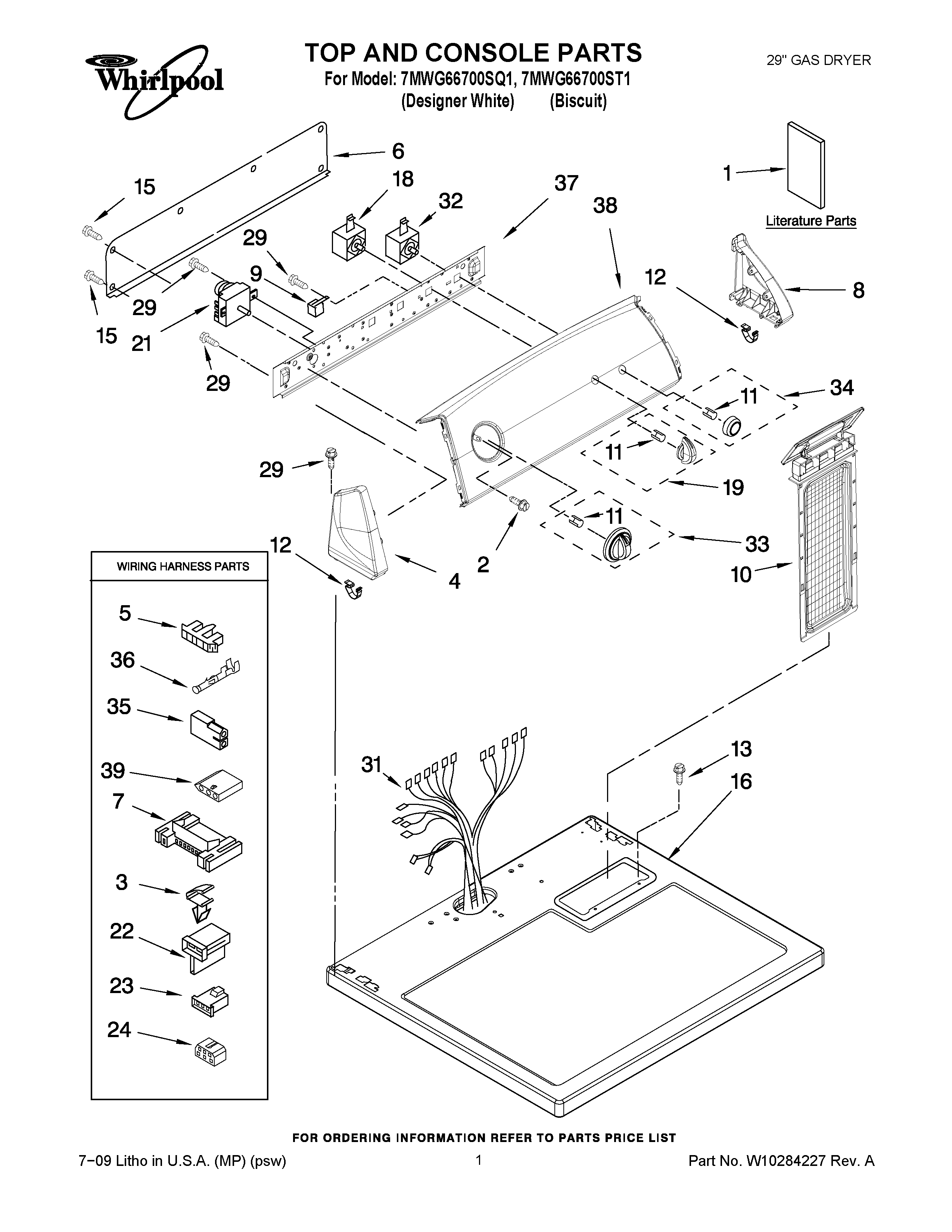

7MWG66700ST1 01 – TOP AND CONSOLE PARTS

7MWG66700ST1 01 – TOP AND CONSOLE PARTS

Written by

in

7MWG66700ST1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Sheet, Cycle Feature
1Use And Care Guide
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (Includes Item 19)
4WP8565957 Whirlpool Endcap Assembly
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8Cap, End (R.H.) (Includes Item 19)
8WP8565954 Whirlpool Endcap
9WP694419 Whirlpool Buzzer Adjuster
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
16Top (Biscuit)
18WP3399639 Whirlpool Switch
19Knob, Control
19Knob, Control (B
21WPW10185981 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24Block, Disconnect
29WP90767 Whirlpool Screw
31W10740201 Whirlpool Wire Harness
32WP3398095 Whirlpool Dryer Start Relay
33WP8566061 Whirlpool Knob
33Timer Knob Assembly (Biscuit)
34WP8566073 Whirlpool Appliance Knob
348566076 Whirlpool Knob Assembly
35Receptacle, Latching (2-Way) (Uses Terminal 94614)
36WP94614 Whirlpool Terminal
378566052 Whirlpool Bracket
38Panel, Control (White)
38Panel, Control (Biscuit)
393936144 Whirlpool Connector
