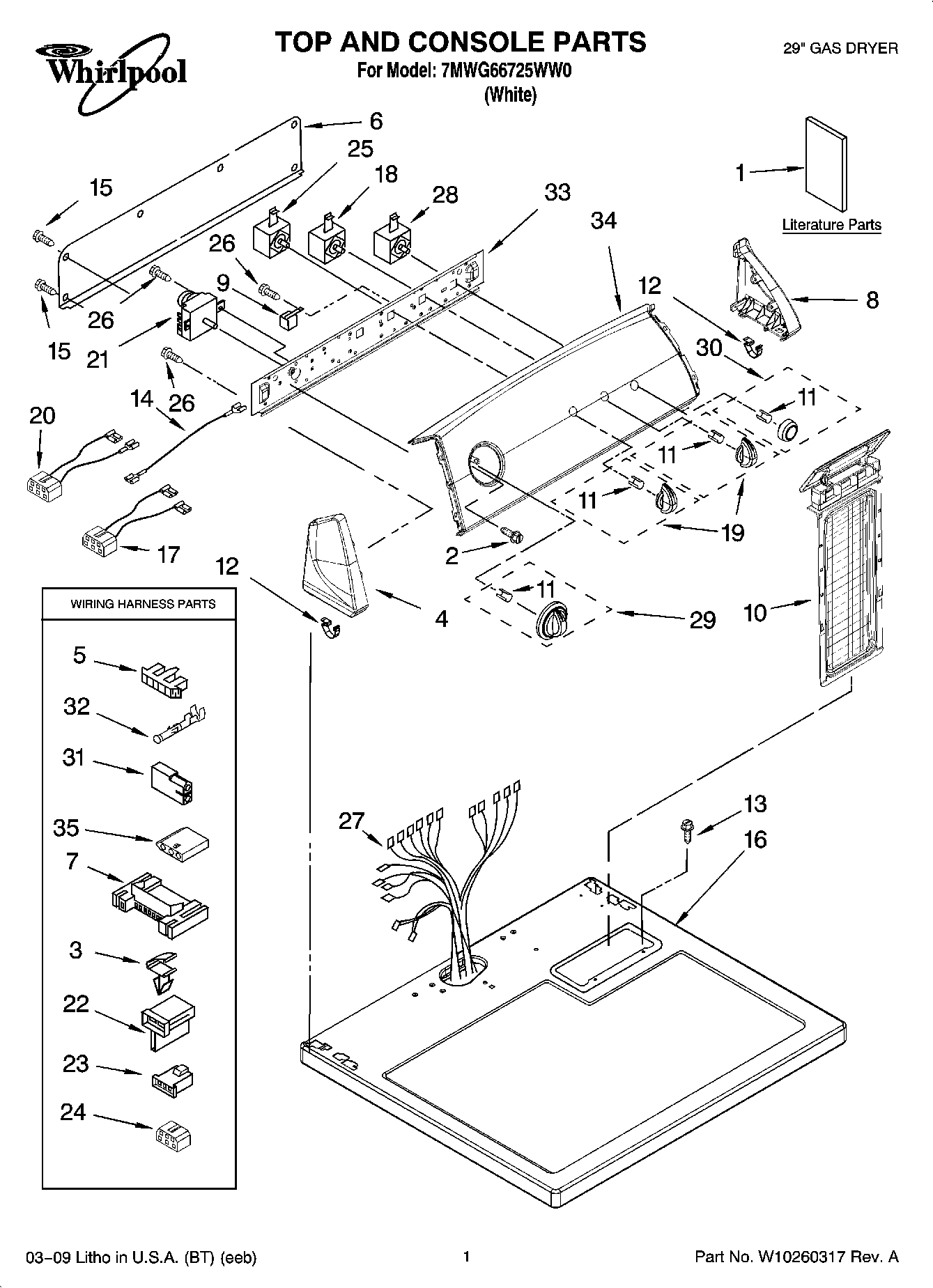

7MWG66725WW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Installation Instructions
1	Use And Care Guide
1	Wiring Diagram
1	WPL 677818
1	Sheet, Cycle Feature
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
4	WP8565957 Whirlpool Endcap Assembly
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	WP8565954 Whirlpool Endcap
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP8312709 Whirlpool Endcap Clip
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (Black)
15	WP693995 Whirlpool Screw
16	WP8563663 Whirlpool Top Assembly
17	8539893 Whirlpool Wire Harness
18	WP3405156 Whirlpool Switch
19	Knob, Control (3)
20	3397695 Whirlpool Wire Harness
21	WP8299766 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
24	Block, Disconnect
25	WP3399639 Whirlpool Switch
26	WP90767 Whirlpool Screw
27	8299879 Whirlpool Wire Harness
28	WP3398095 Whirlpool Dryer Start Relay
29	TIMER KNOB ASSEMBLY
30	WPW10034790 Whirlpool Knob
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	WP94614 Whirlpool Terminal
33	8566052 Whirlpool Bracket
34	Panel, Control
35	3936144 Whirlpool Connector
