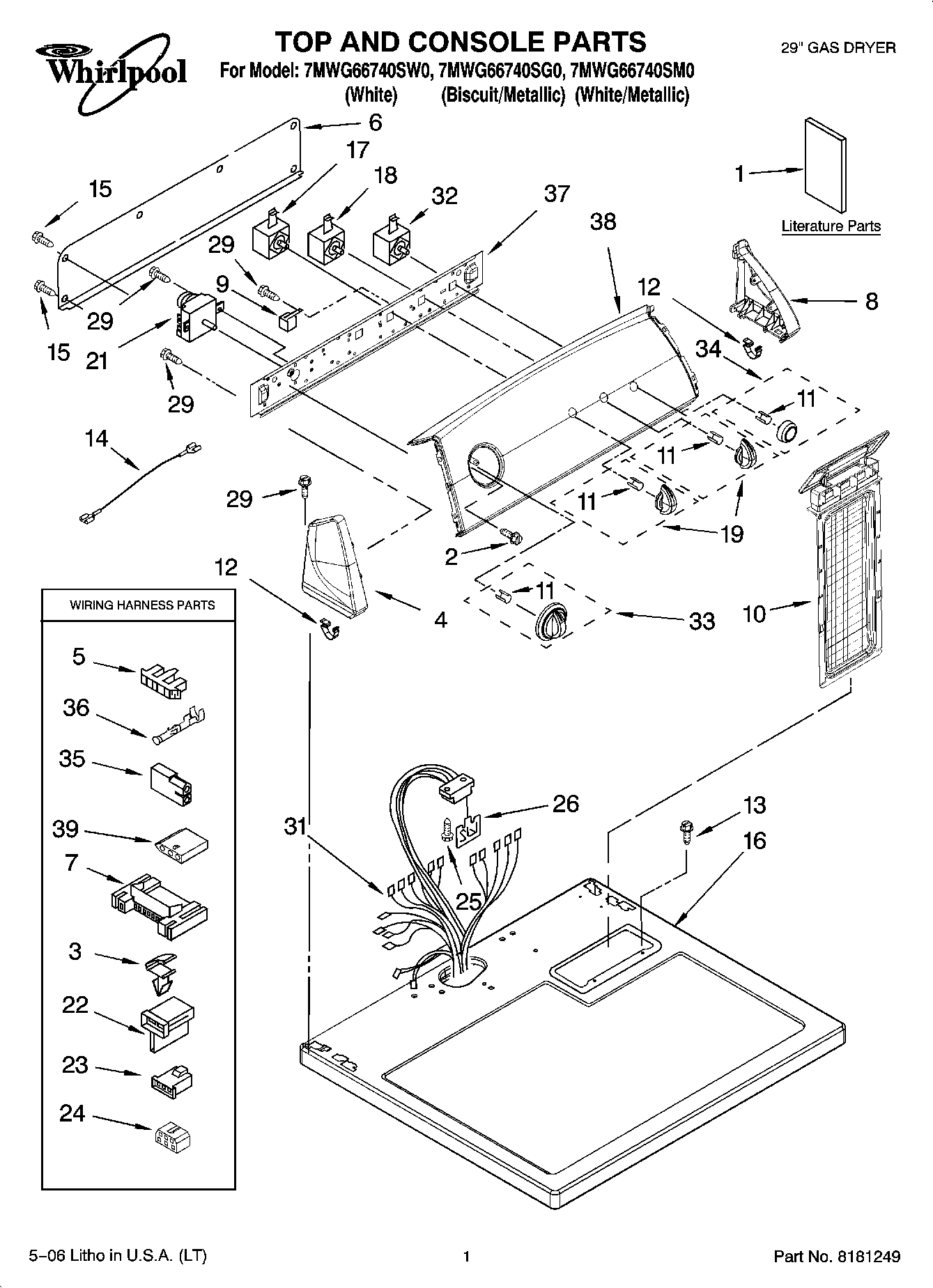

7MWG66740SG0 01 – TOP AND CONSOLE PARTS

7MWG66740SG0 01 – TOP AND CONSOLE PARTS

Written by

in

7MWG66740SG0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Installation Instructions
1Use And Care Guide
1Wiring Diagram
1Sheet, Cycle Feature
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (Biscuit)
4WP8565957 Whirlpool Endcap Assembly
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8WP8565954 Whirlpool Endcap
8Cap, End (R.H.) (Biscuit)
9WP694419 Whirlpool Buzzer Adjuster
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
14Wire, Jumper (Black)
15WP693995 Whirlpool Screw
16Top (Biscuit)
16WP8563663 Whirlpool Top Assembly
17W11106324 Whirlpool Switch
183405154 Whirlpool Primary Switch
19Knob, Control
19Knob, Control (B
21WP3406725 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24Block, Disconnect
25W11693756 Whirlpool Screw Assembly
26WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
29WP90767 Whirlpool Screw
31Harness, Wiring
32WP3398095 Whirlpool Dryer Start Relay
33WP8566061 Whirlpool Knob
33Timer Knob Assembly (Biscuit)
34WP8566073 Whirlpool Appliance Knob
348566076 Whirlpool Knob Assembly
35Receptacle, Latching (2-Way) (Uses Terminal 94614)
36WP94614 Whirlpool Terminal
378566052 Whirlpool Bracket
38Pa
38WPL 8543042
38WPL 8543043
393936144 Whirlpool Connector
