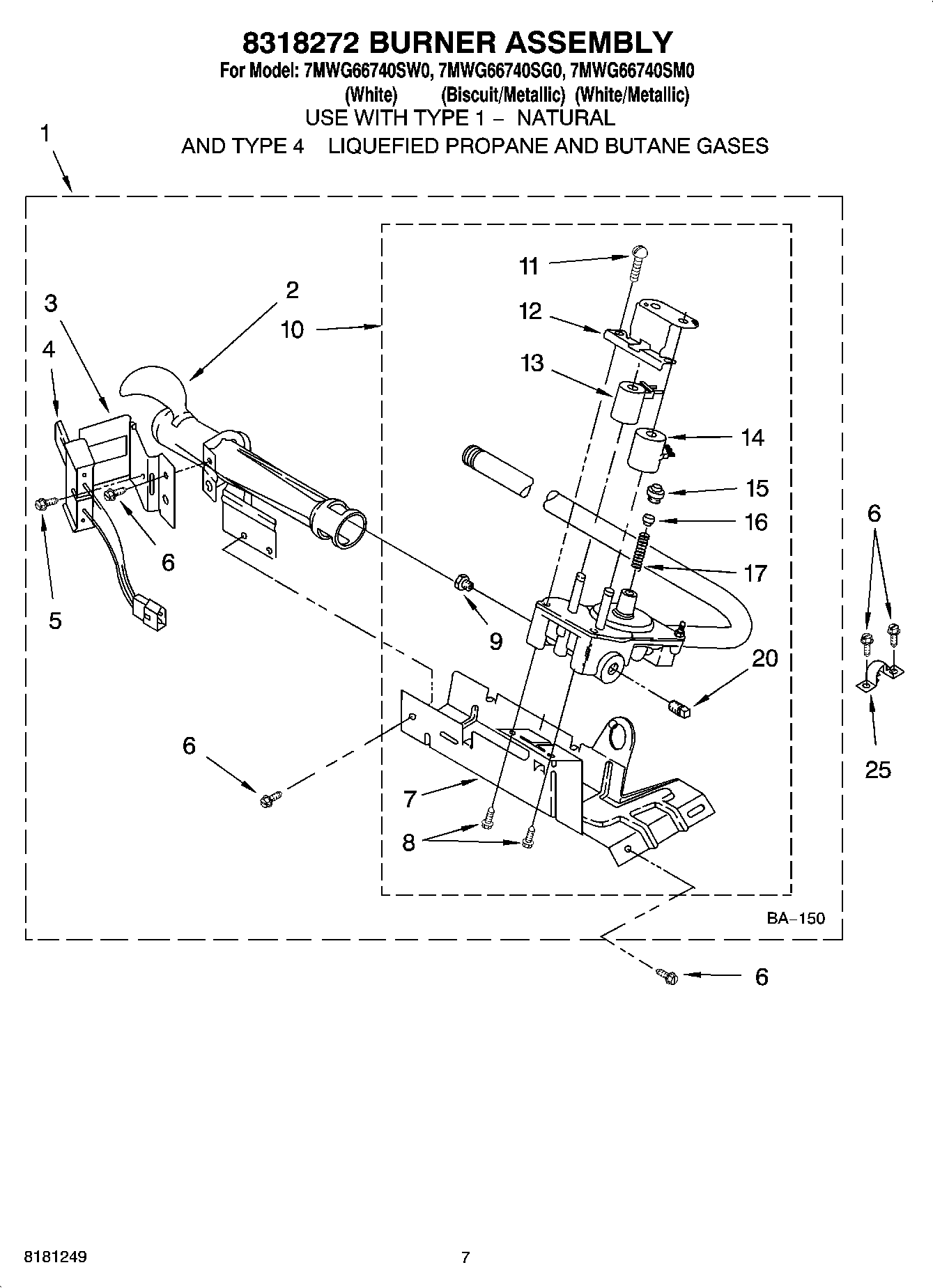

7MWG66740SW0 04 – 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

7MWG66740SW0 04 – 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

7MWG66740SW0 04 – 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
W11224254 Whirlpool Test Kit
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
3404351 Whirlpool Dryer Rack
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
4392065 Whirlpool Dryer Maintenance Kit
KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
ACCESSORY PARTS
1W10823508 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP234826 Whirlpool Gas Orifice
9WP234868 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
10WP8318277 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
25341029 Whirlpool Clamp
2549572A Whirlpool Dryer Propane Gas Conversion Kit
25Following Parts Not Illustrated
