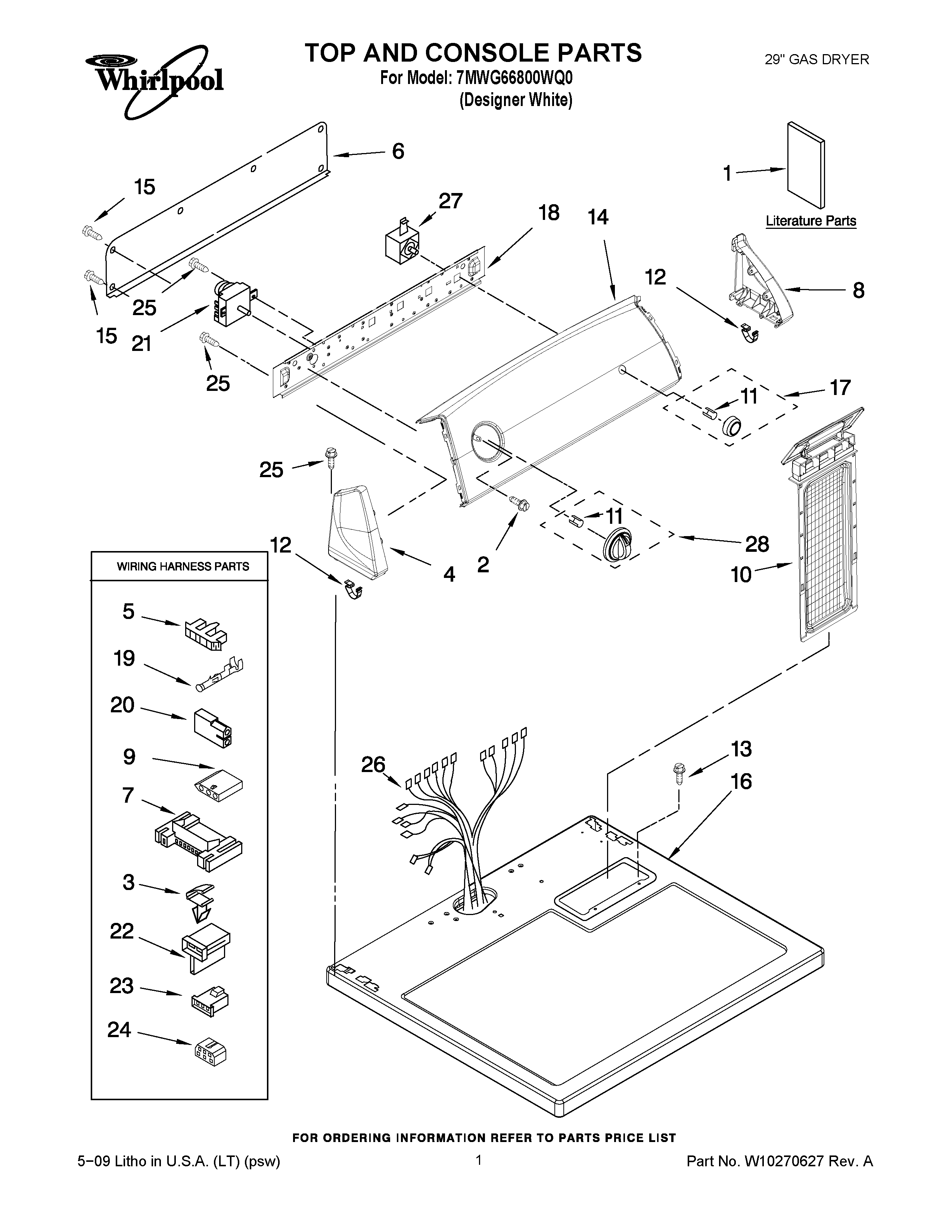

7MWG66800WQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1SHEET, CYCLE FEATURE
1Wiring Diagram
1Use And Care Guide
1Installation Instructions
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4WP8565957 Whirlpool Endcap Assembly
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8WP8565954 Whirlpool Endcap
93936144 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14PANEL, CONTROL
15WP693995 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WP8566065 Whirlpool Knob
188566052 Whirlpool Bracket
19WP94614 Whirlpool Terminal
20Receptacle, Latching (2-Way) (Uses Terminal 94614)
21WPW10185969 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24Block, Disconnect
25WP90767 Whirlpool Screw
26W10186074 Whirlpool Wire Harness
27WP3977456 Whirlpool Start Switch
28WP8566061 Whirlpool Knob
