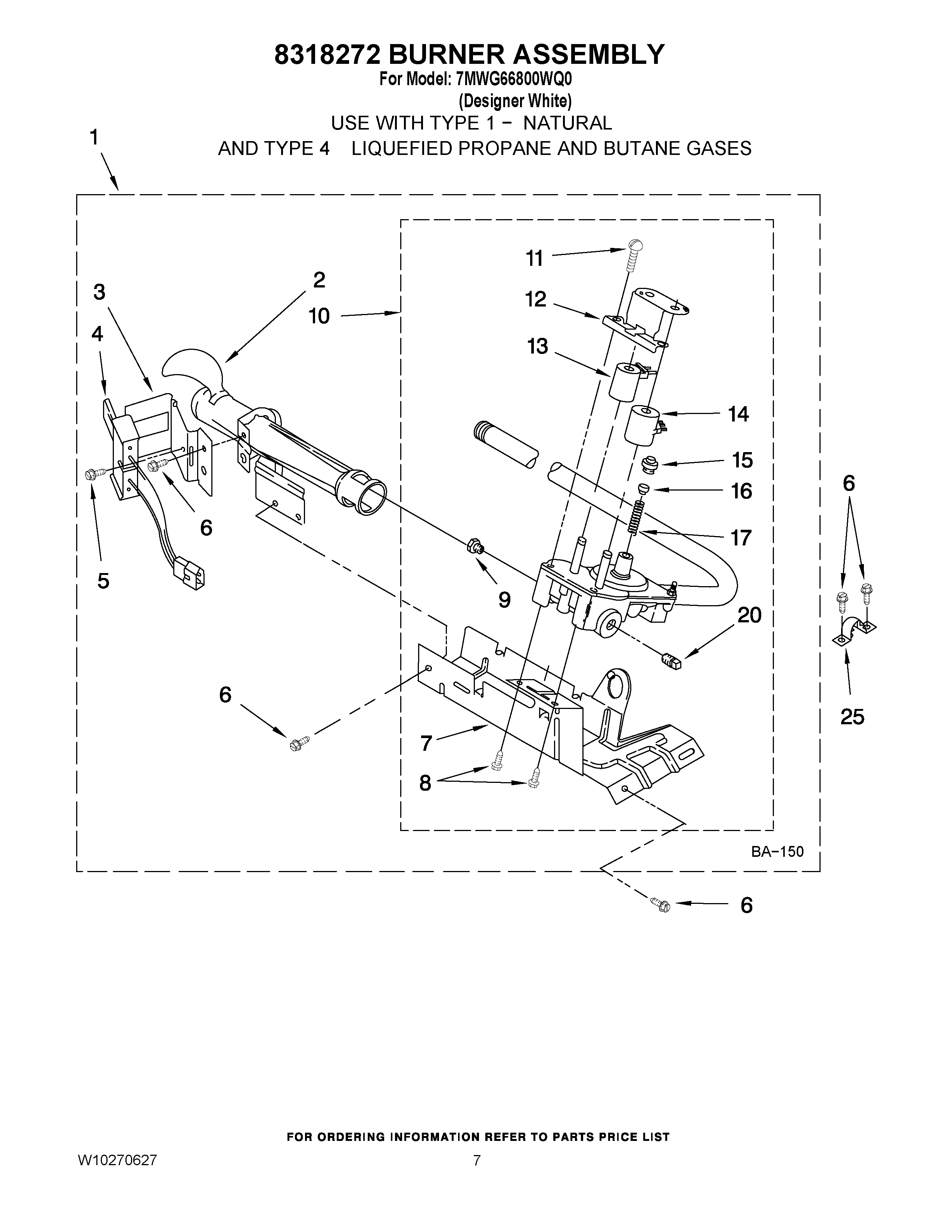

7MWG66800WQ0 04 – 8318272 BURNER ASSEMBLY

Products

Position	Product
NI	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
NI	49572A Whirlpool Dryer Propane Gas Conversion Kit
NI	4392065 Whirlpool Dryer Maintenance Kit
NI	799344 Whirlpool Refrigerator Paint
NI	72017 Whirlpool Appliance Touch-Up Paint White
NI	W11224254 Whirlpool Test Kit
NI	350938 Whirlpool Spray Gun
NI	3404351 Whirlpool Dryer Rack
NI	350930 Whirlpool White Spray Paint
1	W10823508 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP234826 Whirlpool Gas Orifice
9	WP234868 Whirlpool Gas Orifice
9	WP229742 Whirlpool Gas Orifice
10	WP8318277 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
20	W10295523 Whirlpool Plug
25	341029 Whirlpool Clamp
