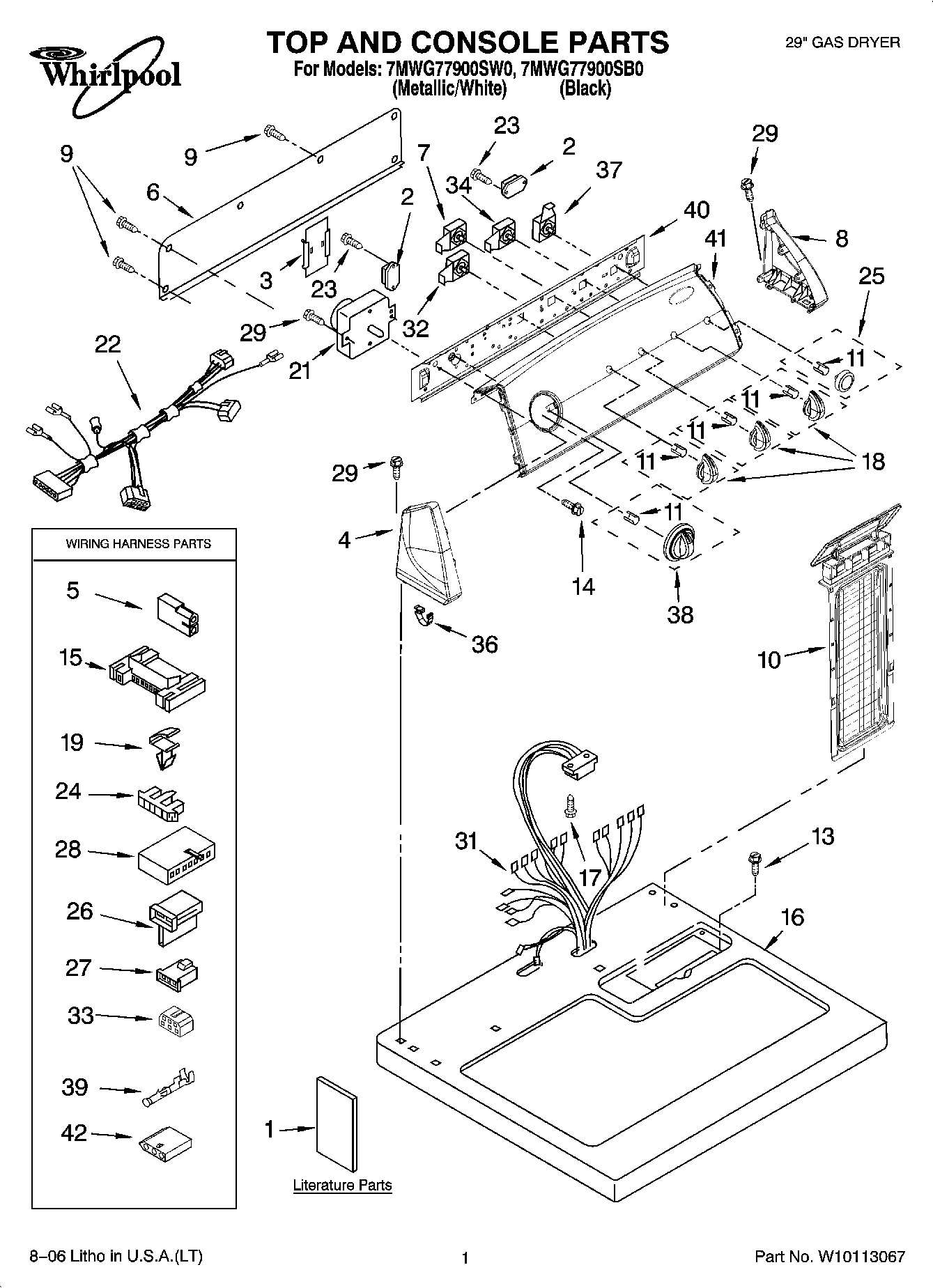

7MWG77900SW0 01 – TOP AND CONSOLE PARTS

7MWG77900SW0 01 – TOP AND CONSOLE PARTS

Written by

in

7MWG77900SW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Use & Care Guide
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Instructions, Installation
1Wiring Diagram
2WP3405281 Whirlpool Relay
3Control Board
4WP8565957 Whirlpool Endcap Assembly
4Cap, End (L.H.) (Includes Item 40) (Black)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
73405152 Whirlpool Switch Assembly
8WP8565954 Whirlpool Endcap
8WPL 8565956
9WP693995 Whirlpool Screw
10Screen, Lint (Black)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
16Top (Black)
17SCREW
18Knob, Control (3)
19WP3394427 Whirlpool Clip
21WP8299771 Whirlpool Timer
22Harness, Console
23WP3388228 Whirlpool Screw
24Connector, Timer
25W10034770 Whirlpool Knob Assembly
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
283936150 Whirlpool Connector
29WP90767 Whirlpool Screw
31Harness, Wiring
328299970 Whirlpool Switch Assembly
33Block, Disconnect
343405151 Whirlpool Switch
36WP8312709 Whirlpool Endcap Clip
37WP3977456 Whirlpool Start Switch
38TIMER KNOB ASSEMBLY
39WP94614 Whirlpool Terminal
408566052 Whirlpool Bracket
41Panel, Control
423936144 Whirlpool Connector
