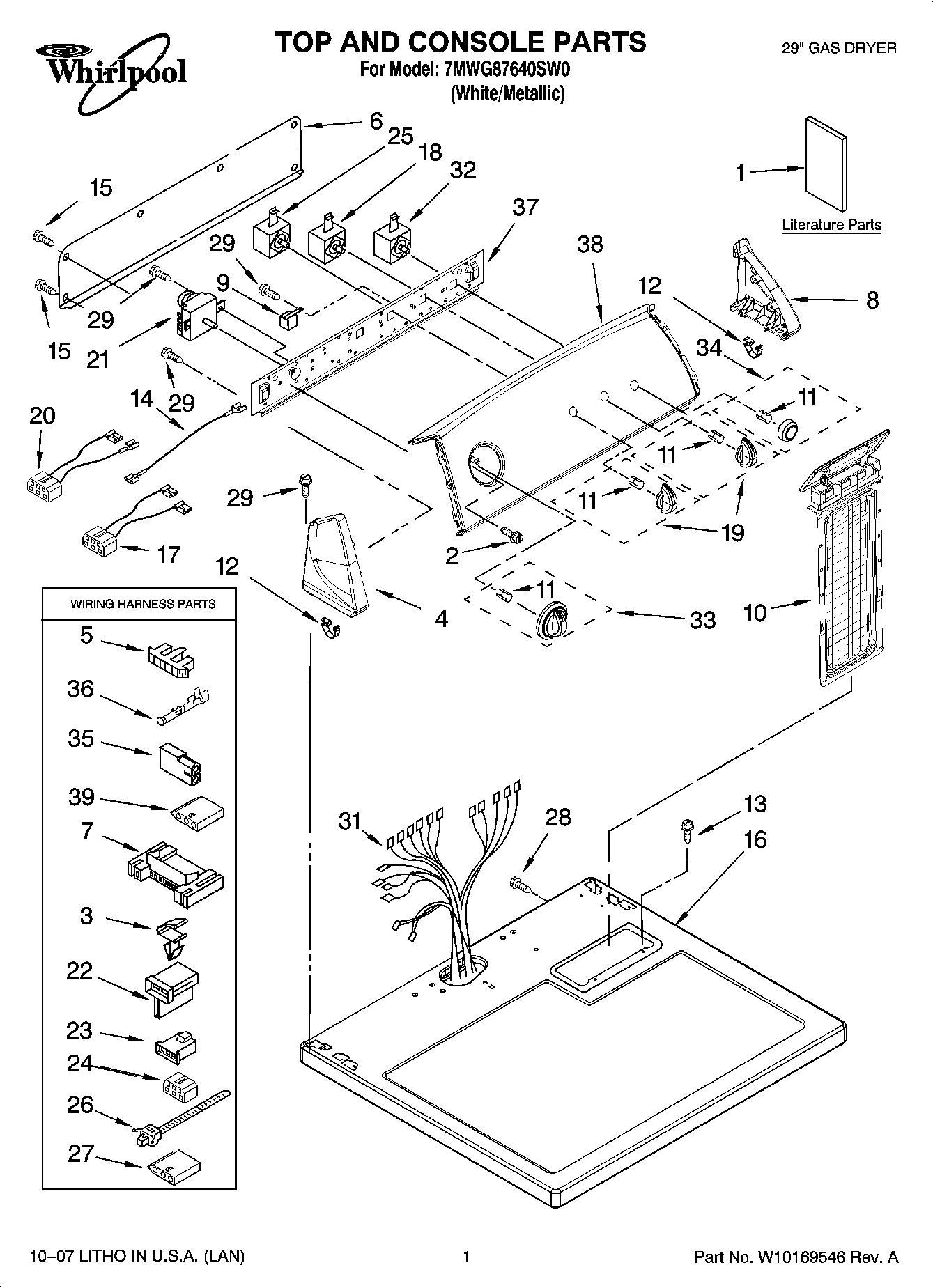

7MWG87640SW0 01 – TOP AND CONSOLE PARTS

7MWG87640SW0 01 – TOP AND CONSOLE PARTS

Written by

in

7MWG87640SW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation Instructions
1Use And Care Guide
1Wiring Diagram
1Sheet, Cycle Feature
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4WP8565957 Whirlpool Endcap Assembly
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8WP8565954 Whirlpool Endcap
9WP694419 Whirlpool Buzzer Adjuster
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
14Wire, Jumper (Black)
15WP693995 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
178539893 Whirlpool Wire Harness
18WP3405156 Whirlpool Switch
19Knob, Control
203397695 Whirlpool Wire Harness
21WP8299766 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24Block, Disconnect
25WP3399639 Whirlpool Switch
26Tie, Cable
273401144 Whirlpool Connector
28W11693756 Whirlpool Screw Assembly
29WP90767 Whirlpool Screw
318299879 Whirlpool Wire Harness
32WP3398095 Whirlpool Dryer Start Relay
33WP8566061 Whirlpool Knob
34WP8566073 Whirlpool Appliance Knob
35Receptacle, Latching (2-Way) (Uses Terminal 94614)
36WP94614 Whirlpool Terminal
378566052 Whirlpool Bracket
38Panel, Control
393936144 Whirlpool Connector
