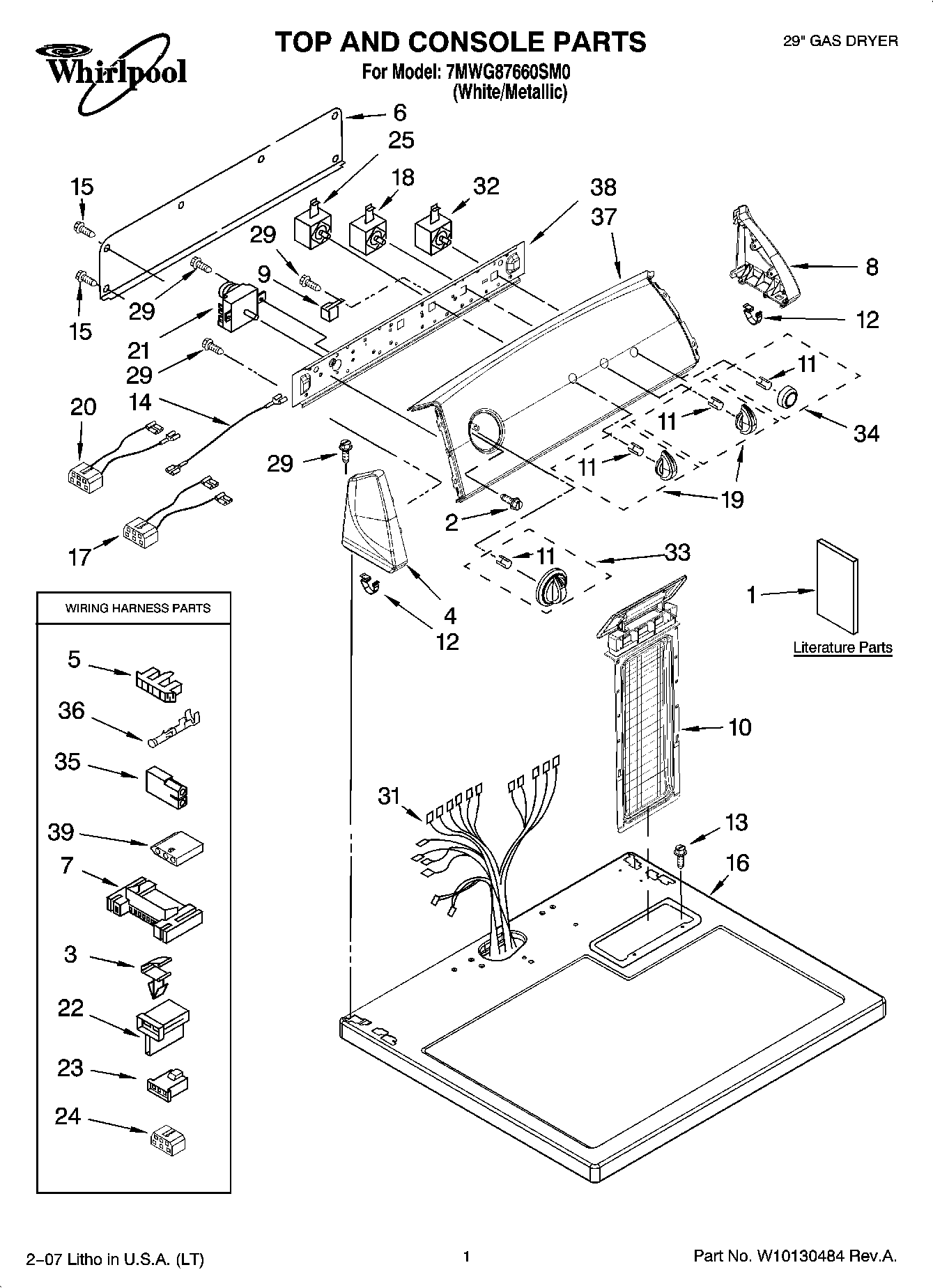

7MWG87660SM0 01 – TOP AND CONSOLE PARTS
Written by
in
7MWG87660SM0 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
Installation Instructions
1
WPL 677818
1
Sheet, Cycle Feature
1
Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1
Wiring Diagram
1
Use And Care Guide
2
3400859 Whirlpool Screw
3
WP3394427 Whirlpool Clip
4
WP8565957 Whirlpool Endcap Assembly
5
Connector, Timer
6
W10103406 Whirlpool Rear Panel
7
3395683 Whirlpool Connector
8
WP8565954 Whirlpool Endcap
9
WP694419 Whirlpool Buzzer Adjuster
10
WPW10717210 Whirlpool Dryer Lint Screen Filter
11
WP8536939 Whirlpool Spring Clip
12
WP8312709 Whirlpool Endcap Clip
13
W11693756 Whirlpool Screw Assembly
14
Wire, Jumper (Black)
15
WP693995 Whirlpool Screw
16
WP8563663 Whirlpool Top Assembly
17
8539893 Whirlpool Wire Harness
18
WP3405156 Whirlpool Switch
19
Knob, Control
20
3397695 Whirlpool Wire Harness
21
WP8299766 Whirlpool Timer Assembly
22
WP3403499 Whirlpool Connector
23
WP3403498 Whirlpool Connector
24
Block, Disconnect
25
WP3399639 Whirlpool Switch
29
WP90767 Whirlpool Screw
31
8299879 Whirlpool Wire Harness
32
WP3398095 Whirlpool Dryer Start Relay
33
WP8566061 Whirlpool Knob
34
WP8566073 Whirlpool Appliance Knob
35
Receptacle, Latching (2-Way) (Uses Terminal 94614)
36
WP94614 Whirlpool Terminal
37
8566052 Whirlpool Bracket
38
Panel, Control
39
3936144 Whirlpool Connector
←
