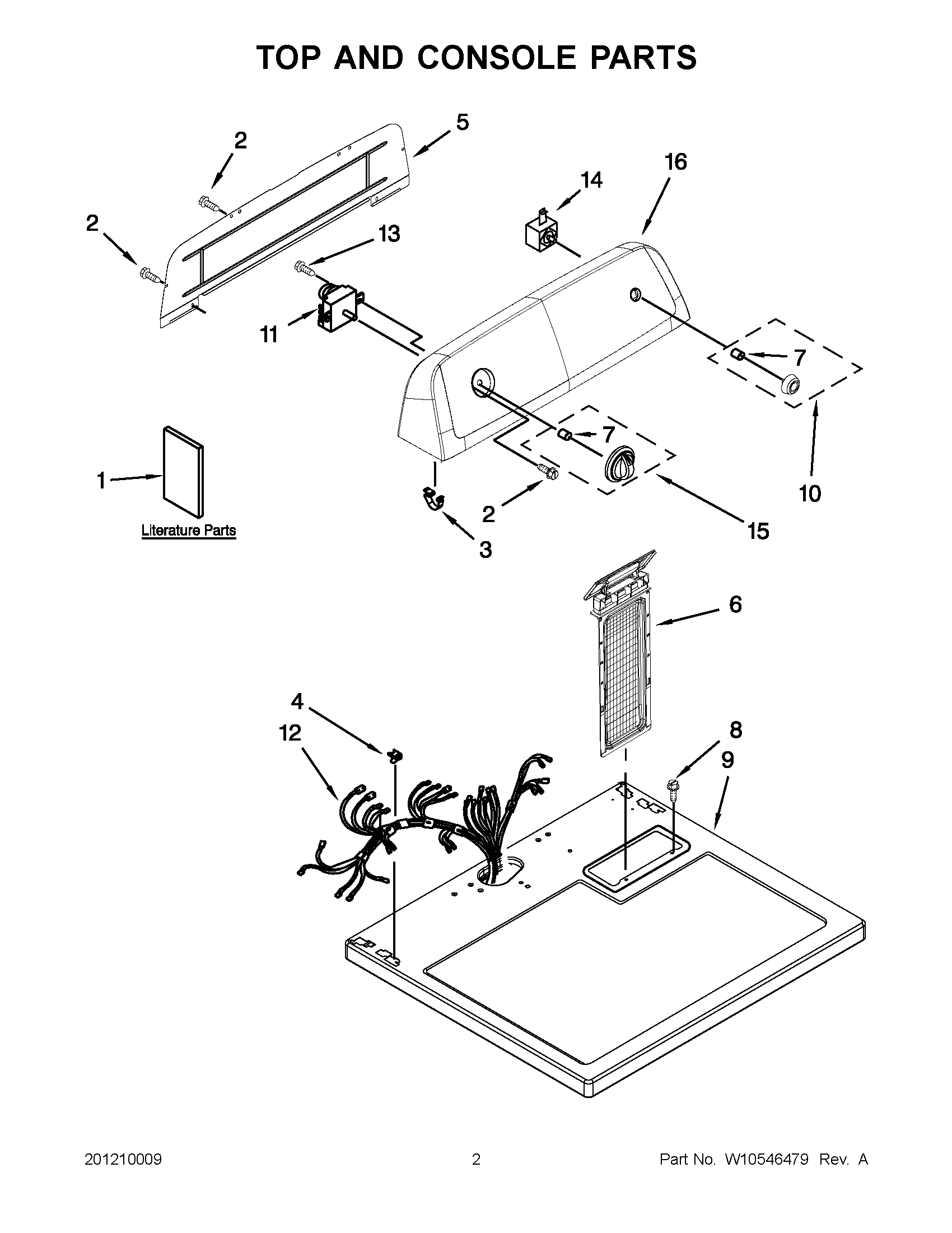

7MWGD1500AQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	INSTRUCTIONS, INSTALLATION
1	USE AND CARE GUIDE
2	WP693995 Whirlpool Screw
3	WP8312709 Whirlpool Endcap Clip
4	W11213336 Whirlpool Nut
5	WPW10416486 Whirlpool Rear Panel
6	WPW10717210 Whirlpool Dryer Lint Screen Filter
7	WP8536939 Whirlpool Spring Clip
8	W11693756 Whirlpool Screw Assembly
9	WP8563663 Whirlpool Top Assembly
10	WPW10453948 Whirlpool Knob
11	W10857611 Whirlpool Timer
12	W10450287 Whirlpool Wire Harness
13	WP90767 Whirlpool Screw
14	WPW10420741 Whirlpool Dryer Start Switch
15	WPW10711289 Whirlpool Washer Control Knob Dryer
16	CONSOLE (WHITE)
