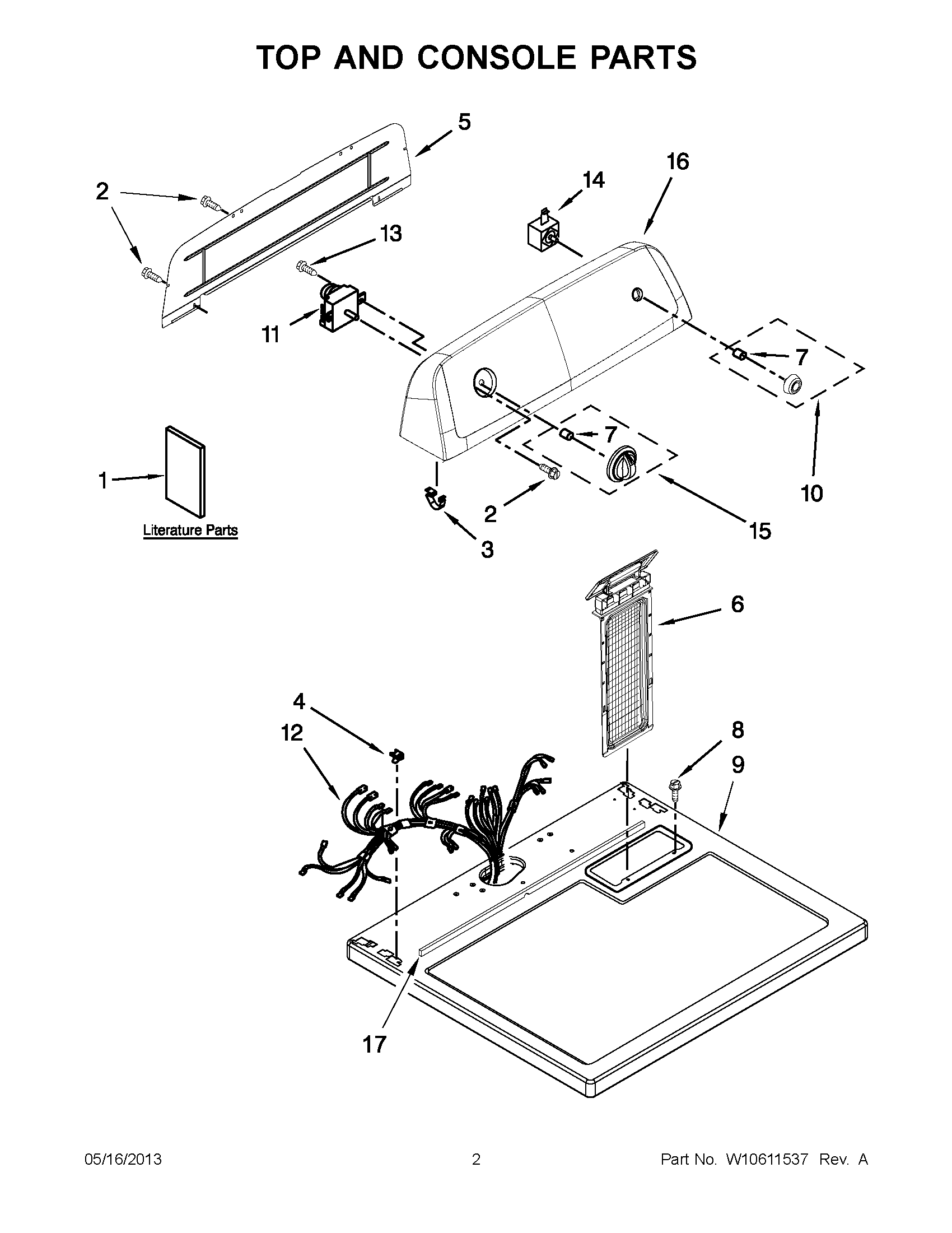

7MWGD1500AQ2 01 – TOP AND CONSOLE PARTS

7MWGD1500AQ2 01 – TOP AND CONSOLE PARTS

Written by

in

7MWGD1500AQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1WIRING DIAGRAM
1INSTRUCTIONS, INSTALLATION
2WP693995 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4W11213336 Whirlpool Nut
5WPW10416486 Whirlpool Rear Panel
6WPW10717210 Whirlpool Dryer Lint Screen Filter
7WP8536939 Whirlpool Spring Clip
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10WPW10453948 Whirlpool Knob
11W10857611 Whirlpool Timer
12W10450287 Whirlpool Wire Harness
13WP90767 Whirlpool Screw
14WPW10420741 Whirlpool Dryer Start Switch
15WPW10711289 Whirlpool Washer Control Knob Dryer
16CONSOLE (WHITE)
17W10316616 Whirlpool Seal
