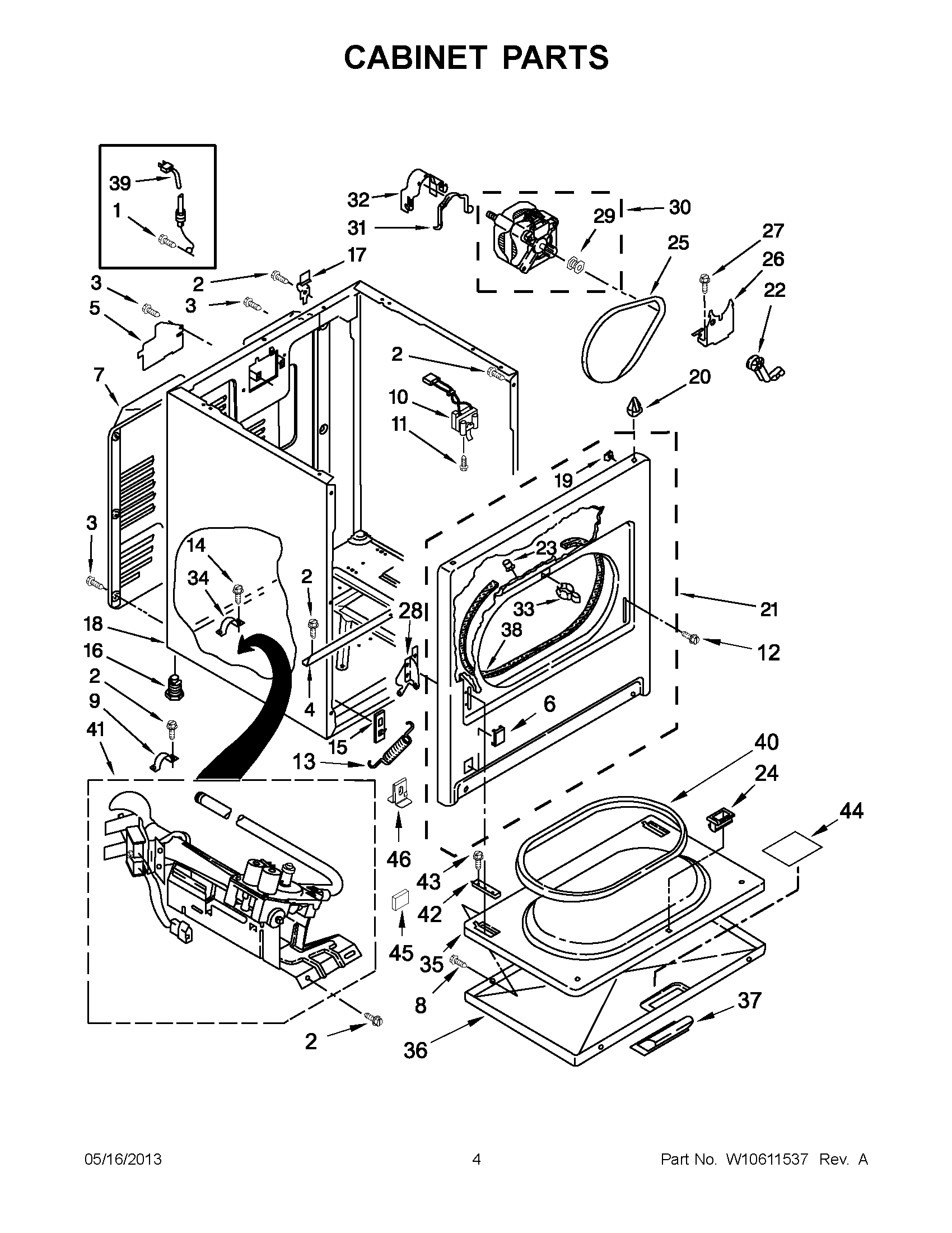

7MWGD1500AQ2 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	W10811916 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	341029 Whirlpool Clamp
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	Screw, 10-32 x 1/2
13	WPW10041960 Whirlpool Door Spring
14	WP3390631 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	WP8066217 Whirlpool Hinge
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	279740 Whirlpool Panel Primary with O/S2
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	341241 Whirlpool Dryer Drum Belt
26	WP348780 Whirlpool Base
27	3400500 Whirlpool Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
29	WP8066184 Whirlpool Dryer Motor Pulley
30	279827 Whirlpool Dryer Drive Motor
31	CLAMP
32	WP3404162 Whirlpool Clamp
33	279570 Whirlpool Dryer Door Latch Kit
35	WP695737 Whirlpool Door
36	WP3393549 Whirlpool Door Assembly
37	W10877261 Whirlpool Handle Assembly
38	W11035878 Whirlpool Bearing and Seal
39	W11222083 Whirlpool Power Cord
40	W10906683 Whirlpool Door Seal
41	W10823508 Whirlpool Gas Burner
42	W11252547 Whirlpool Clip Assembly
43	WP308685 Whirlpool Microwave Screw
44	W10595510 Whirlpool Pad
45	3389682 Whirlpool Spacer
46	W10575896 Whirlpool Clip
