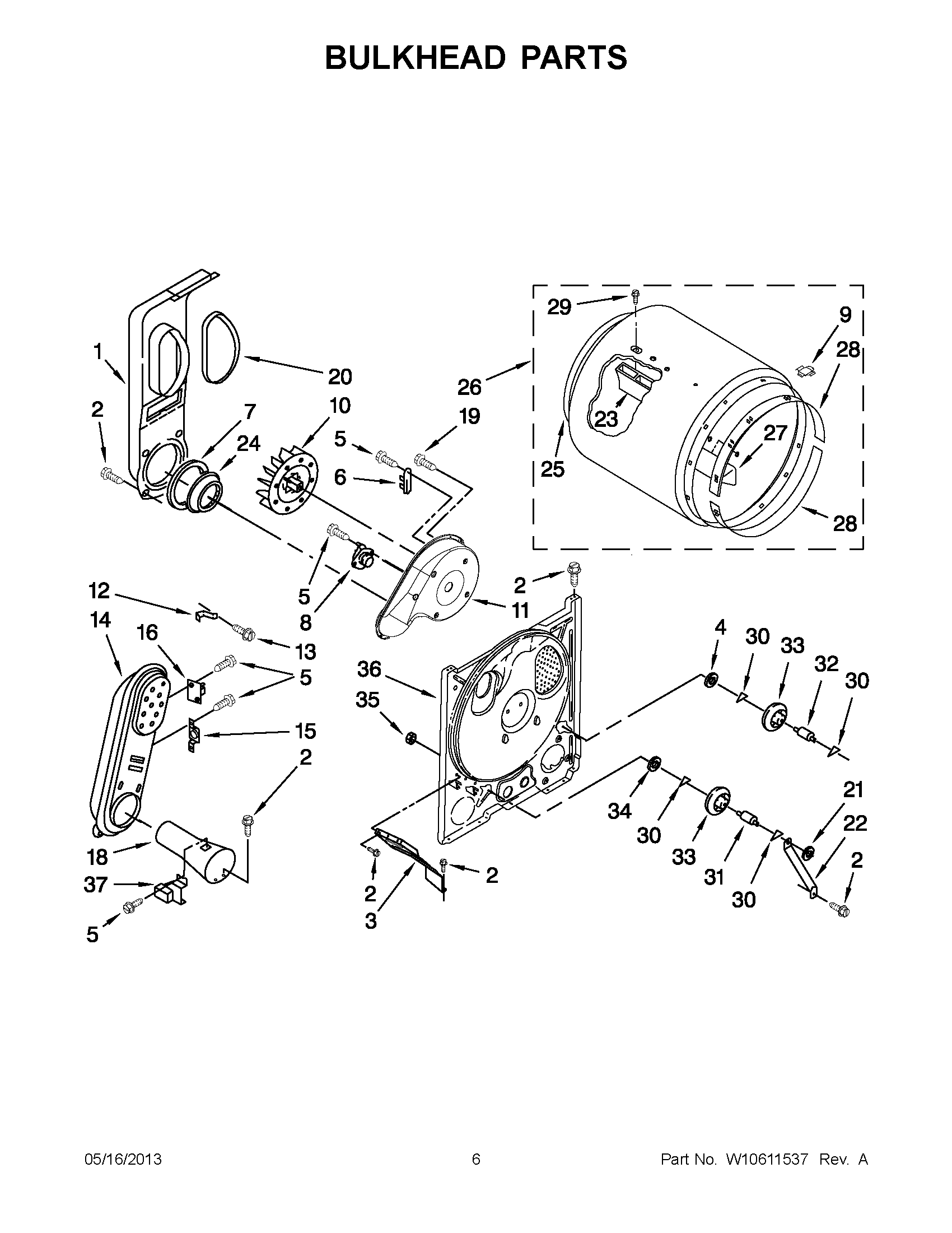

7MWGD1500AQ2 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	SCREW
3	W11398682 Whirlpool Bracket
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	W11050897 Whirlpool Dryer High Limit Thermostat
9	8066086 Whirlpool Plug
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	WP489463 Whirlpool Refrigerator Screw
14	279980 Whirlpool Box
15	WP3387134 Whirlpool Dryer Cycling Thermostat
16	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
18	WP8066049 Whirlpool Funnel Assembly
19	WP488729 Whirlpool Refrigerator Door Screw
20	SEAL
21	WP90296 Whirlpool Clip
22	W11684613 Whirlpool Bracket
23	BAFFLE-DRM
24	W11233063 Whirlpool Shield Assembly
25	W10612022 Whirlpool Felt Seal
26	W10899578 Whirlpool Dryer Drum Assembly
27	WP3403636 Whirlpool Drum Baffle
28	279441 Whirlpool Front Bearing Ring
29	W10853898 Whirlpool Screw
30	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31	SHAFT SUPPORT ROLLER DRYER
32	SHAFT SUPPORT ROLLER DRYER
33	349241T Whirlpool Dryer Drum Support Roller Kit
34	WP348197 Whirlpool Washer Assembly
35	W11229607 Whirlpool Nut
36	W11178667 Whirlpool Bulkhead Assembly
37	WP338906 Whirlpool Dryer Gas Sensor
