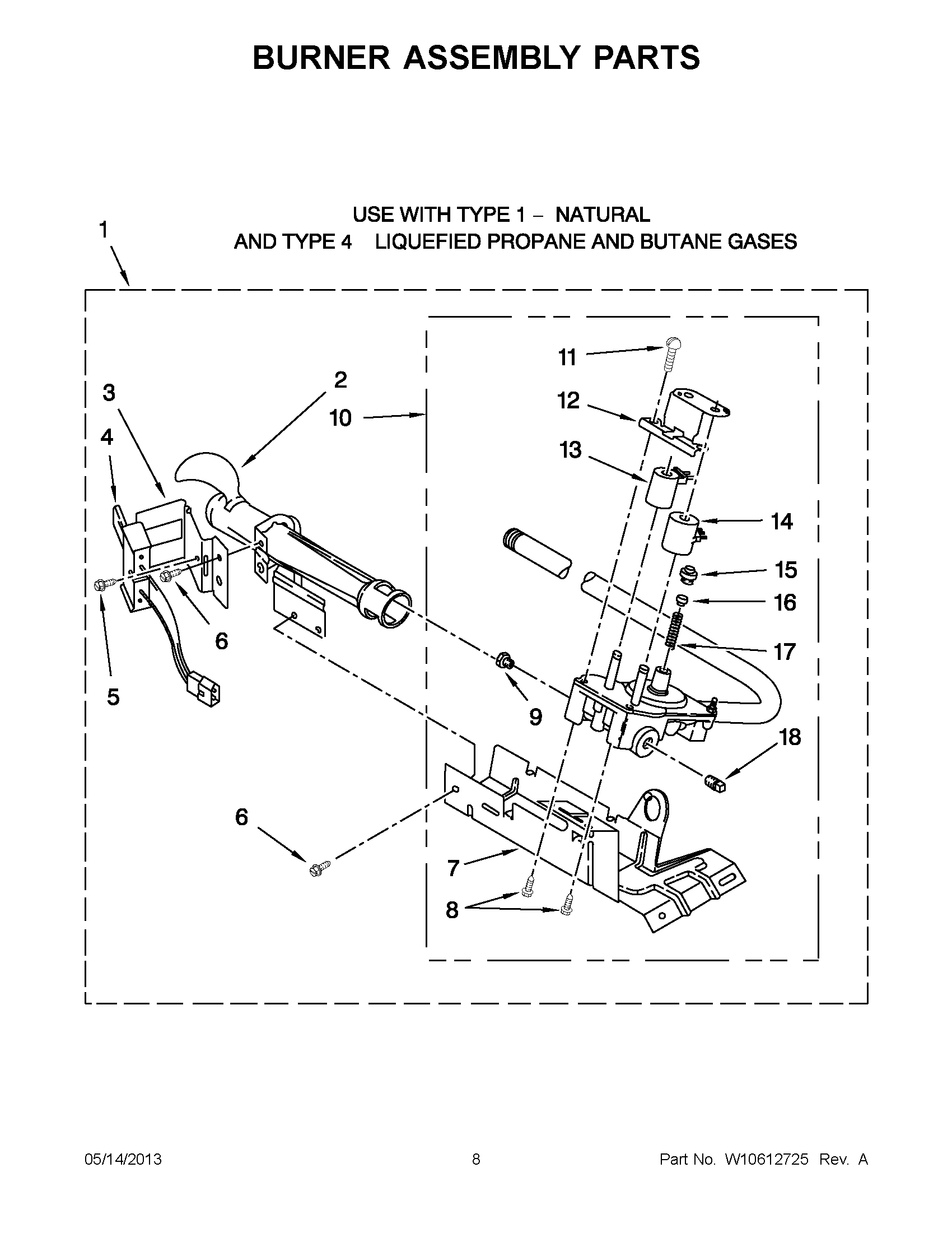

7MWGD1600BM1 04 – BURNER ASSEMBLY PARTS

7MWGD1600BM1 04 – BURNER ASSEMBLY PARTS

Written by

in

7MWGD1600BM1 04 – BURNER ASSEMBLY PARTS

Products

PositionProduct
NI49572A Whirlpool Dryer Propane Gas Conversion Kit
NICABINET (NOT A SERVICEABLE PART)
1W10823508 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP234868 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
9WP234826 Whirlpool Gas Orifice
10WP8318277 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
18W10295523 Whirlpool Plug
