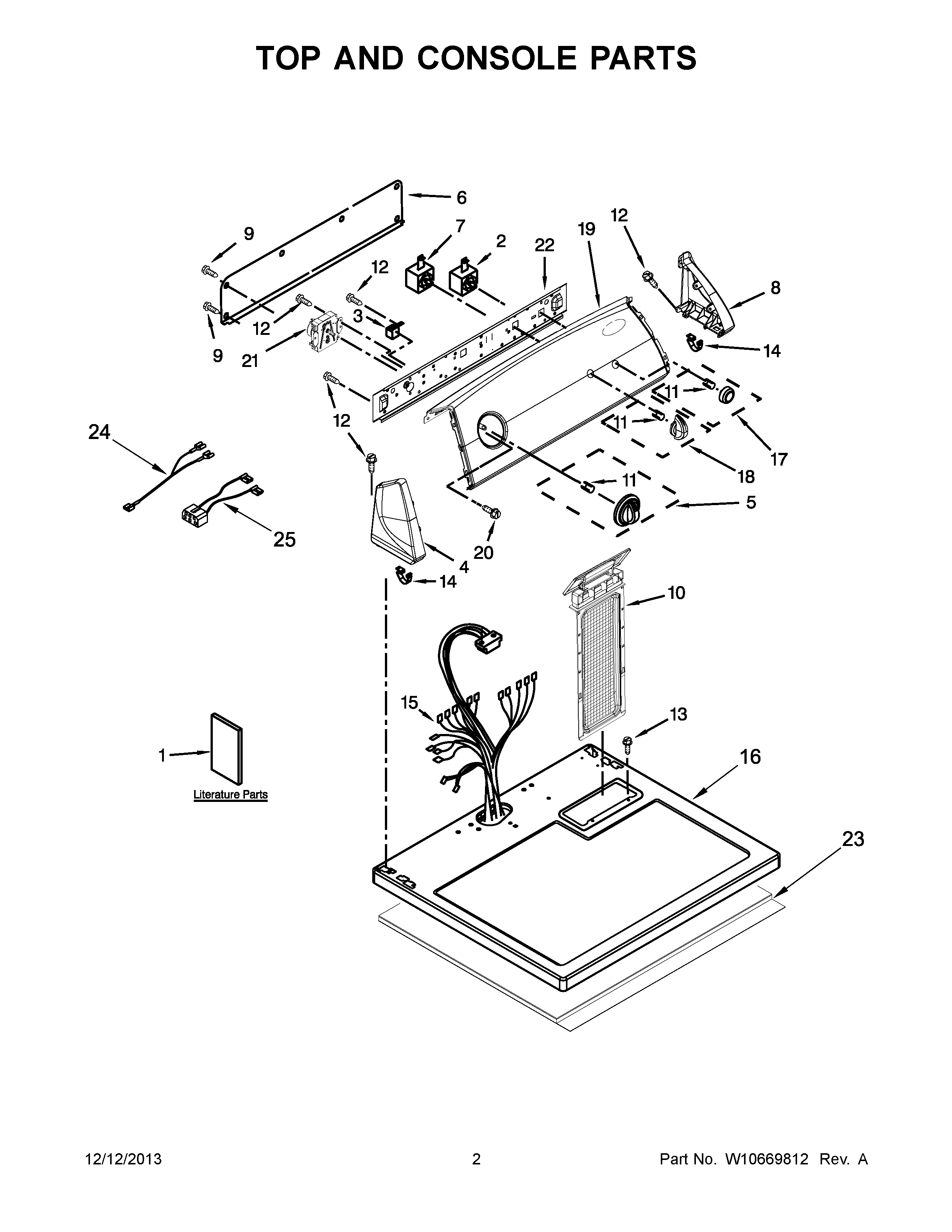

7MWGD1600BM2 02 – TOP AND CONSOLE PARTS

7MWGD1600BM2 02 – TOP AND CONSOLE PARTS

Written by

in

7MWGD1600BM2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1INSTRUCTIONS, INSTALLATION
1USE AND CARE GUIDE
2WP3977456 Whirlpool Start Switch
3WP694419 Whirlpool Buzzer Adjuster
4WP8565957 Whirlpool Endcap Assembly
5TIMER KNOB ASSEMBLY
6W10103406 Whirlpool Rear Panel
73405152 Whirlpool Switch Assembly
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP8312709 Whirlpool Endcap Clip
15HARNESS, WIRING
16WP8563663 Whirlpool Top Assembly
17W10034770 Whirlpool Knob Assembly
18Knob, Control (3)
19PANEL, CONTROL
20WP3390631 Whirlpool Screw
21W11043385 Whirlpool Timer
228566052 Whirlpool Bracket
23W10123956 Whirlpool Sound Absorber
