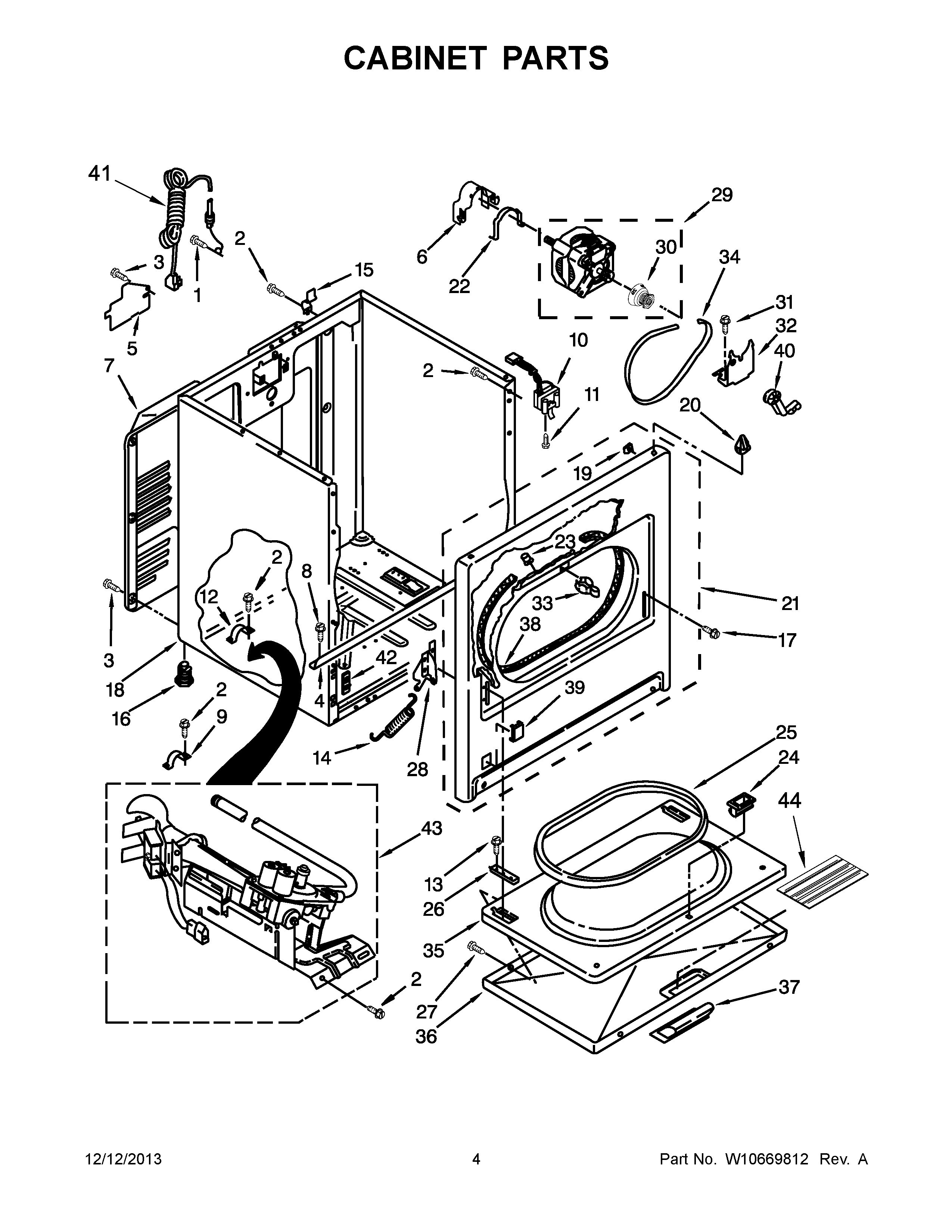

7MWGD1600BM2 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	WP488729 Whirlpool Refrigerator Door Screw
9	341029 Whirlpool Clamp
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	WP8066217 Whirlpool Hinge
17	Screw, 10-32 x 1/2
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	279740 Whirlpool Panel Primary with O/S2
22	CLAMP
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP488627 Whirlpool Refrigerator Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
29	279827 Whirlpool Dryer Drive Motor
30	WP8066184 Whirlpool Dryer Motor Pulley
31	3400500 Whirlpool Screw
32	WP348780 Whirlpool Base
33	279570 Whirlpool Dryer Door Latch Kit
34	341241 Whirlpool Dryer Drum Belt
35	WP695737 Whirlpool Door
36	WP3393549 Whirlpool Door Assembly
37	W10877261 Whirlpool Handle Assembly
38	W11035878 Whirlpool Bearing and Seal
39	W10811916 Whirlpool Plug
40	WP691366 Whirlpool Dryer Idler Pulley Assembly
41	W11222083 Whirlpool Power Cord
42	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
43	W10823508 Whirlpool Gas Burner
44	W10595510 Whirlpool Pad
