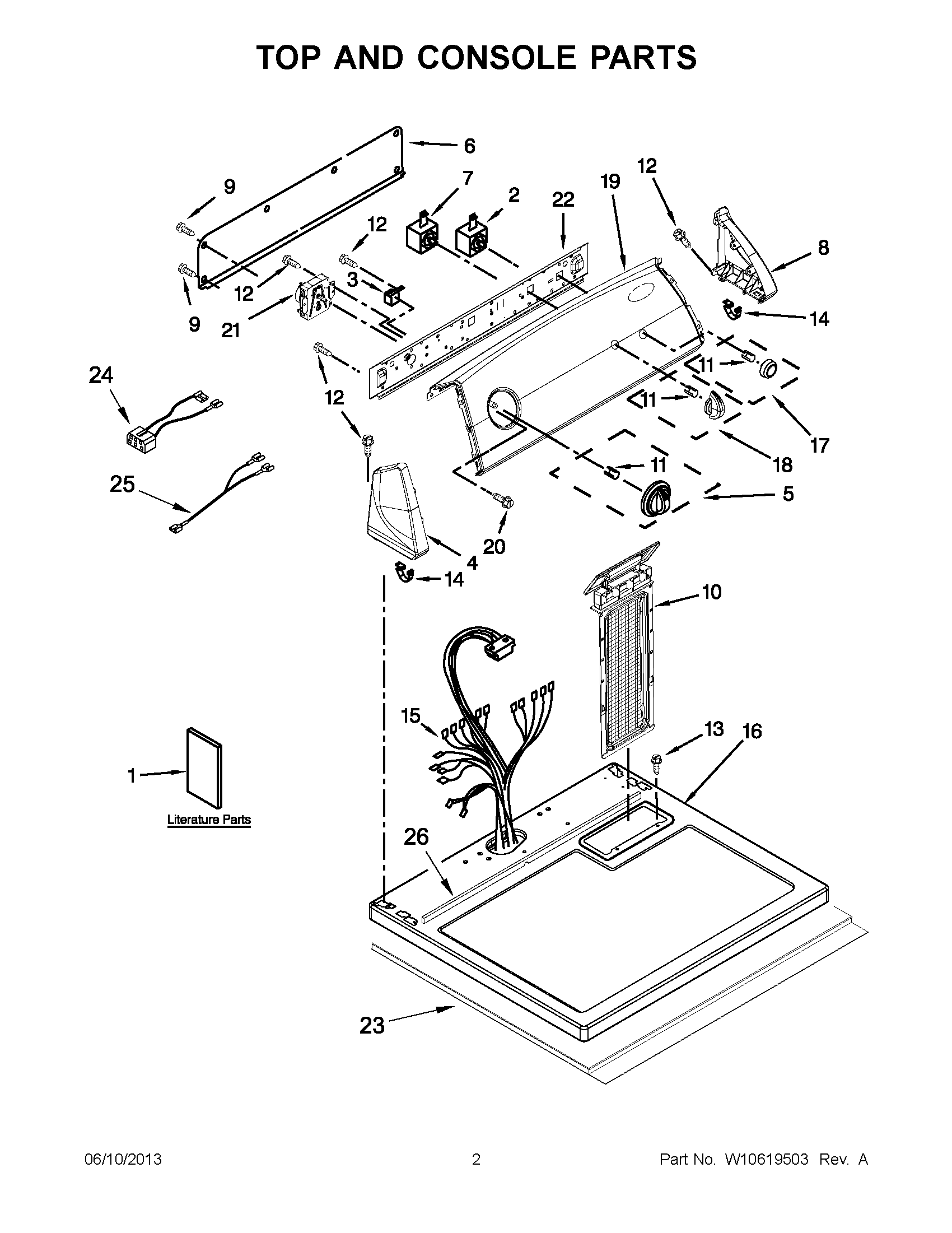

7MWGD1601AW2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	INSTRUCTIONS, INSTALLATION
1	USE & CARE GUIDE
2	WP3977456 Whirlpool Start Switch
3	WP694419 Whirlpool Buzzer Adjuster
4	WP8565957 Whirlpool Endcap Assembly
5	WP8566061 Whirlpool Knob
6	W10103406 Whirlpool Rear Panel
7	3405152 Whirlpool Switch Assembly
8	WP8565954 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	WP8312709 Whirlpool Endcap Clip
15	Harness, Wiring
16	WP8563663 Whirlpool Top Assembly
17	WP8566065 Whirlpool Knob
18	Knob, Control
19	CONSOLE (WHITE)
20	WP3390631 Whirlpool Screw
21	WP3977678 Whirlpool Timer Assembly
22	8566052 Whirlpool Bracket
23	W10123956 Whirlpool Sound Absorber
24	3401695 Whirlpool Wire Harness
25	JUMPER, PUSH-TO-START
26	W10316616 Whirlpool Seal
