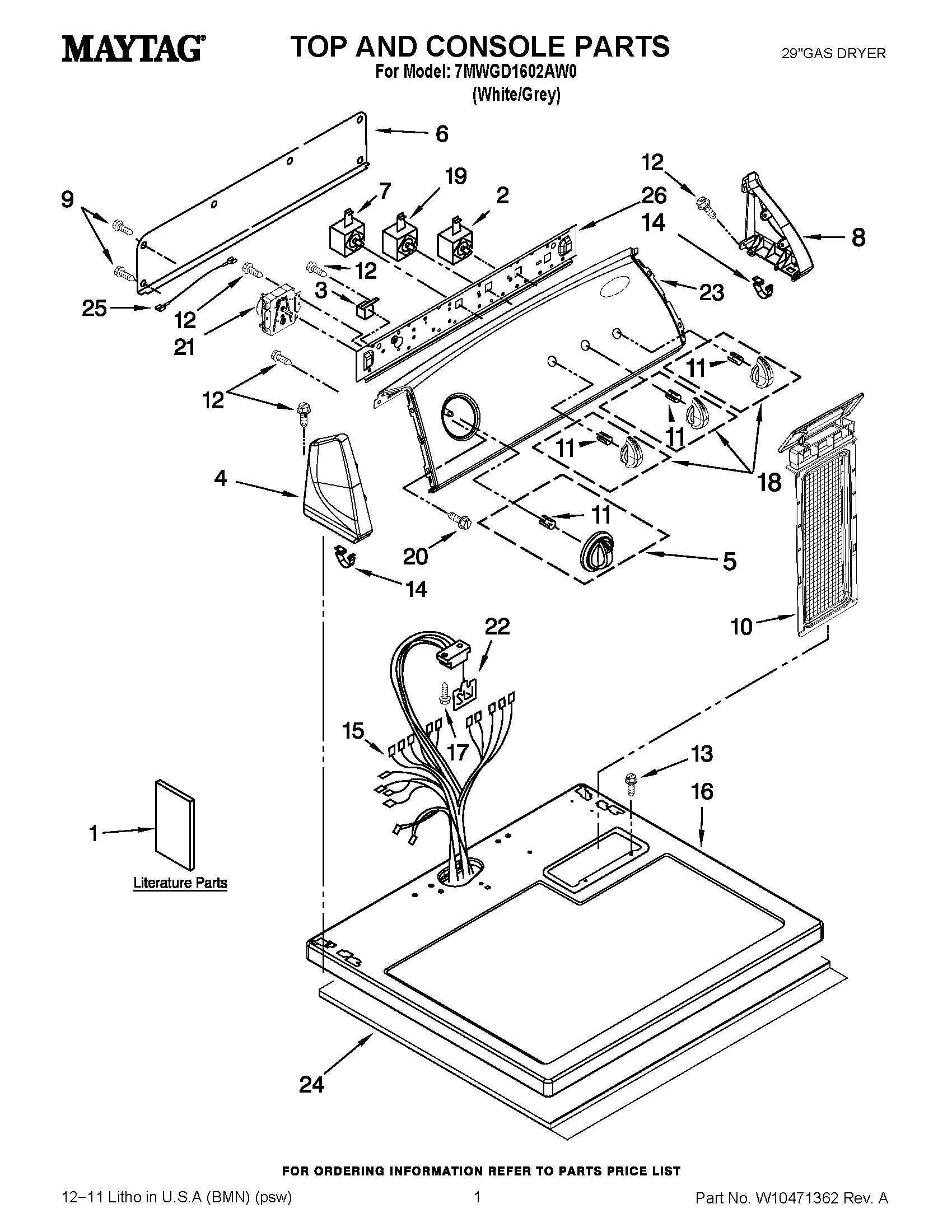

7MWGD1602AW0 01 – TOP AND CONSOLE PARTS
Written by
in
7MWGD1602AW0 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
MAY W10454973
1
MAY 8578889
1
MAY W10329763
2
MAY W10117655
3
MAY 694419
4
END CAP (L.H.) (WHITE)
5
KNOB, TIMER (WHITE/METALLIC)
6
MAY W10103406
7
Switch, Rotary Temperature
8
END CAP (R.H.) (WHITE)
9
Screw
10
LINT SCREEN WHITE
11
CLIP, SPRING
12
MAY 3348629
13
SCREW
14
MAY 8312709
15
MAY W10450282
16
MAY 8559800
17
MAY 359625
18
KNOB, CONTROL (WHITE/METALLIC)
19
MAY 3405156
20
SCREW
21
TIMER ASSEMBLY (60 HZ.)
22
MAY 8558178
23
MAY W10452090
24
MAY W10123956
25
WIRE, JUMPER (BUZZER)
26
BRACKET,CONTROL
←
