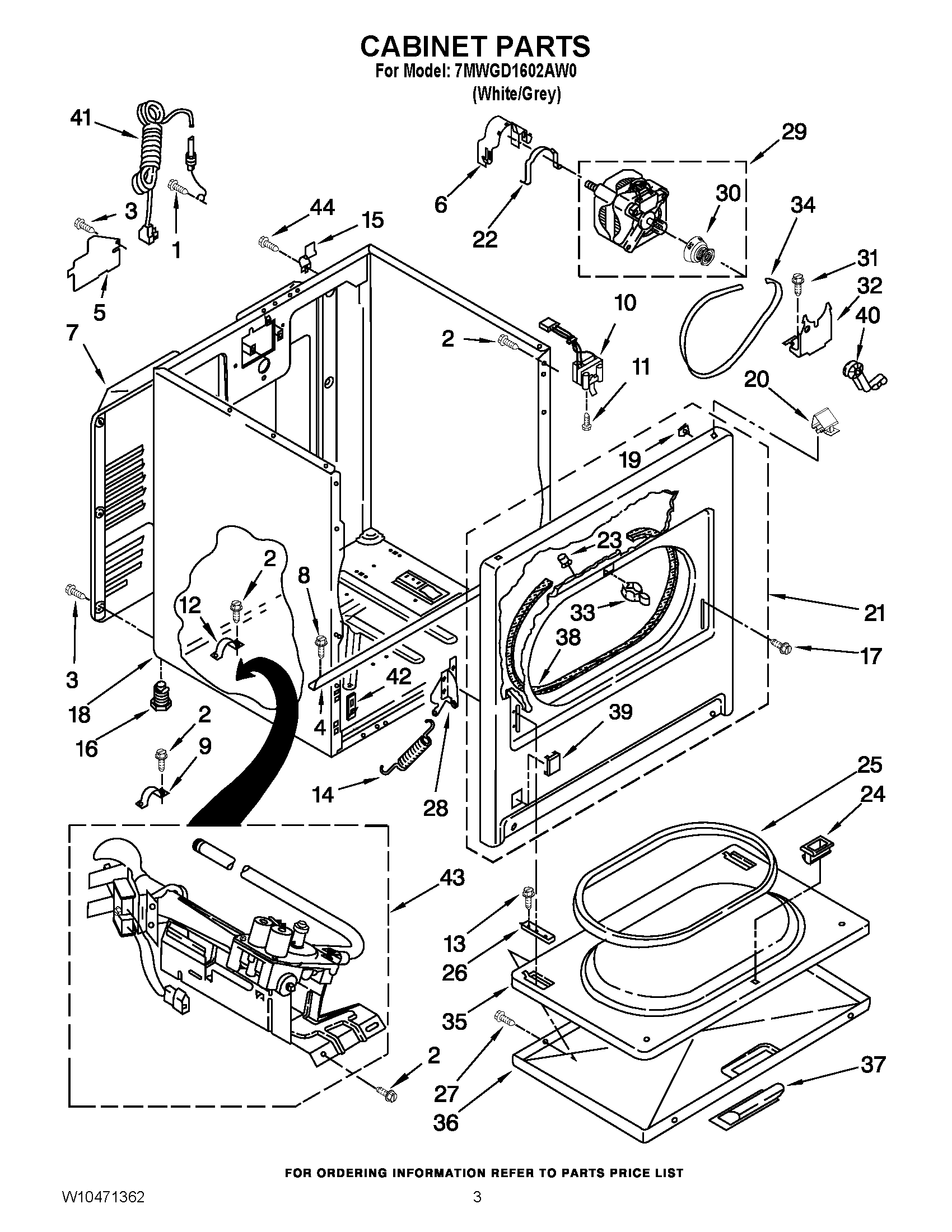

7MWGD1602AW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8533974
2	SCREW
3	Screw
4	MAY W10236073
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	SCREW
9	MAY 3980175
10	MAY 3406109
11	SCREW
12	MAY 341029
13	SCREW
14	MAY W10041960
15	Hinge, Top
16	MAY 3392100
17	MAY 342043
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	Panel Front (White)
22	CLAMP, MOTOR MOUNT
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3390731
26	MAY 337189
27	MAY 342055
28	HINGE ASSEMBLY (LEFT SIDE)
28	HINGE ASSEMBLY (RIGHT SIDE)
29	MAY 8066206
30	Pulley, Motor
31	BOLT
32	MAY 348780
33	MAY 696144
34	MAY W10131364
35	MAY 695737
36	Door, Front (White)
37	MAY W10095180
38	MAY 3406129
39	PLUG, FRONT PANEL (WHITE)
40	IDLER ASSEMBLY
41	MAY W10440460
42	MAY 3394083
43	MAY W10336852
44	SCREW
