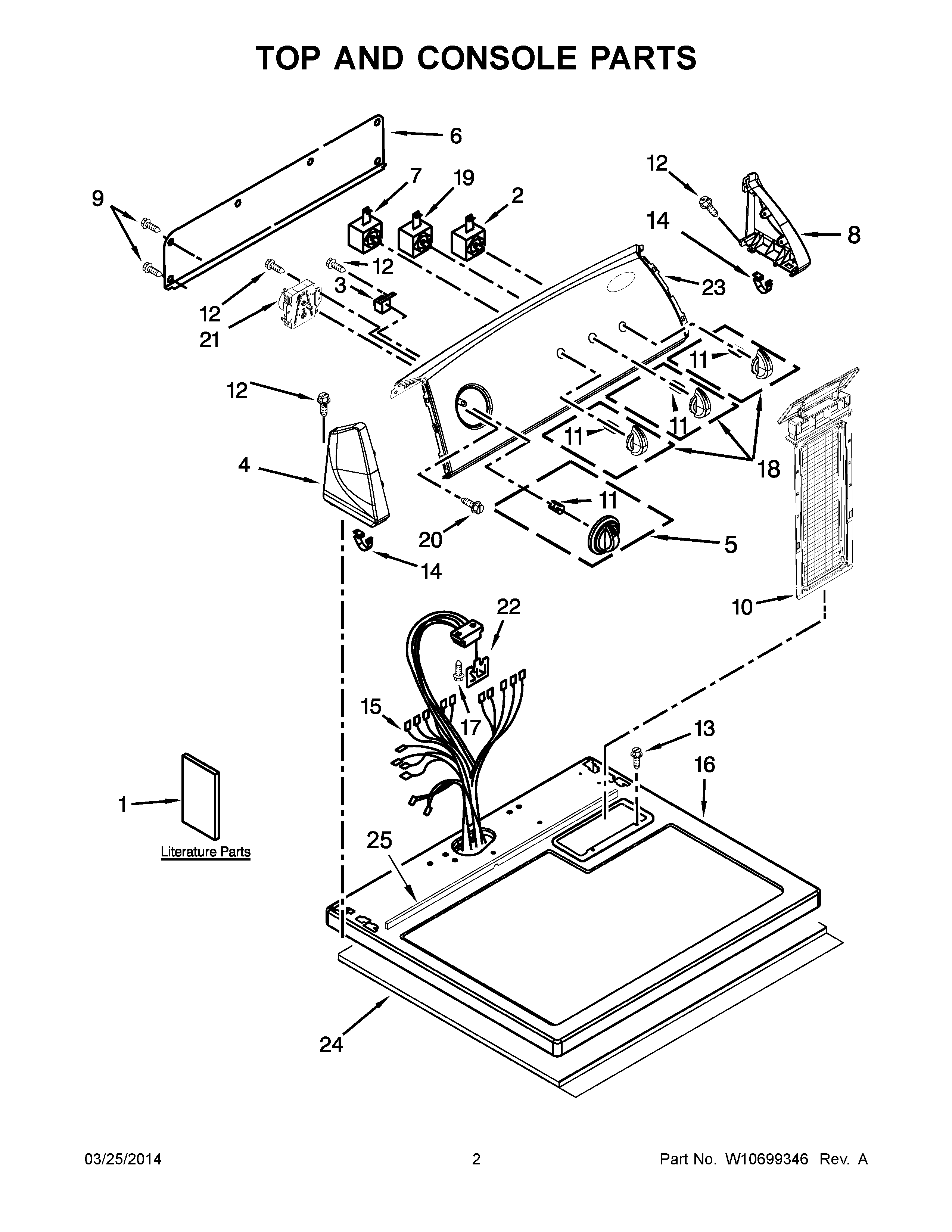

7MWGD1705YM4 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	INSTRUCTIONS, INSTALLATION
1	WIRING DIAGRAM
2	WPW10117655 Whirlpool Dryer Start Switch
3	WP694419 Whirlpool Buzzer Adjuster
4	WP8565957 Whirlpool Endcap Assembly
5	TIMER KNOB ASSEMBLY
6	W10103406 Whirlpool Rear Panel
7	8530169 Whirlpool Switch
8	WP8565954 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
14	WP8312709 Whirlpool Endcap Clip
15	HARNESS, WIRING
16	WP8563663 Whirlpool Top Assembly
17	W11693756 Whirlpool Screw Assembly
18	Knob, Control (3)
19	WP3405156 Whirlpool Switch
20	WP3400818 Whirlpool Screw
21	TIMER
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	ASSEMBLY, PANEL AND BRACKET
24	W10123956 Whirlpool Sound Absorber
25	W10316616 Whirlpool Seal
