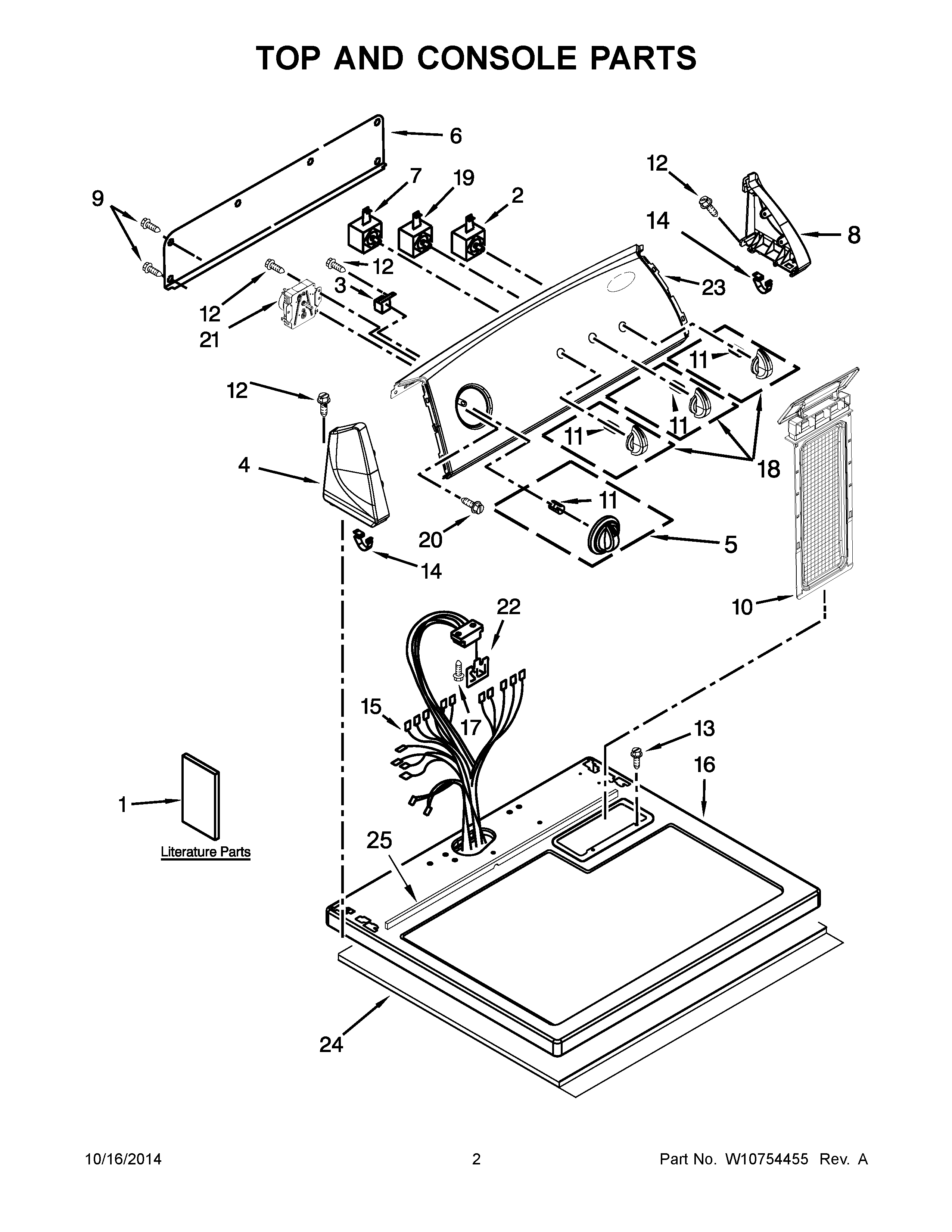

7MWGD1705YM5 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AUSE & CARE GUIDE
1INSTRUCTIONS, INSTALLATION
1BWIRING DIAGRAM
2WPW10117655 Whirlpool Dryer Start Switch
3WP694419 Whirlpool Buzzer Adjuster
4WP8565957 Whirlpool Endcap Assembly
5TIMER KNOB ASSEMBLY
6W10103406 Whirlpool Rear Panel
78530169 Whirlpool Switch
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15HARNESS, WIRING
16WP8563663 Whirlpool Top Assembly
17W11693756 Whirlpool Screw Assembly
18Knob, Control (3)
19WP3405156 Whirlpool Switch
20WP3400818 Whirlpool Screw
21TIMER
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23ASSEMBLY, PANEL AND BRACKET
24W10123956 Whirlpool Sound Absorber
25W10316616 Whirlpool Seal
