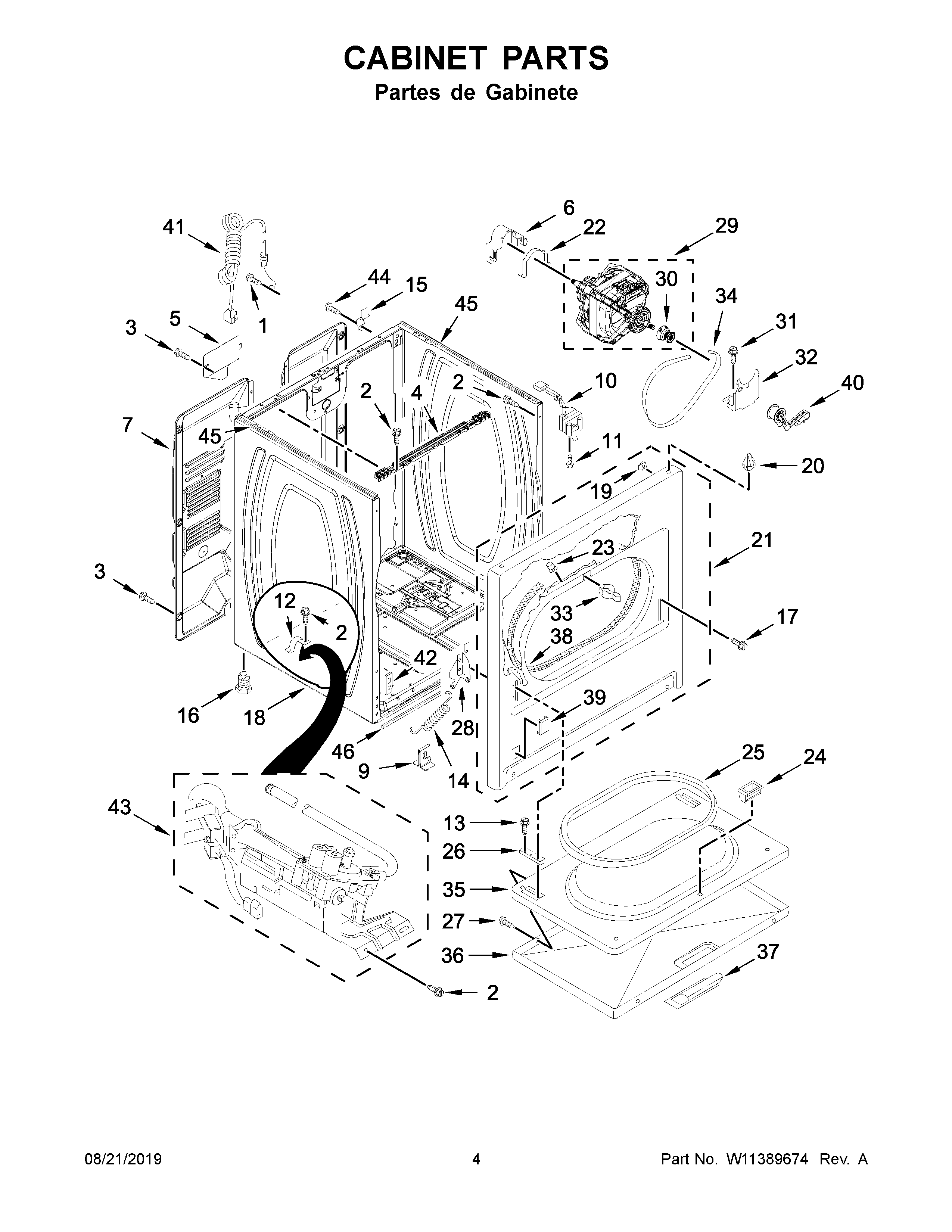

7MWGD1730JQ0 03 – CABINET PARTS

7MWGD1730JQ0 03 – CABINET PARTS

Written by

in

7MWGD1730JQ0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
4W10641295 Whirlpool Bracket
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9W10575896 Whirlpool Clip
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12341029 Whirlpool Clamp
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
15W11715722 Whirlpool Hinge
16W10813918 Whirlpool Leveling Feet
17Screw, 10-32 x 1/2
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP8066092 Whirlpool Panel Clip
21279740 Whirlpool Panel Primary with O/S2
22CLAMP
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27WP488627 Whirlpool Refrigerator Screw
28AWP8066057 Whirlpool Door Hinge
28WP8066056 Whirlpool Door Hinge
29279827 Whirlpool Dryer Drive Motor
30WP8066184 Whirlpool Dryer Motor Pulley
313400500 Whirlpool Screw
32WP348780 Whirlpool Base
33279570 Whirlpool Dryer Door Latch Kit
34341241 Whirlpool Dryer Drum Belt
35WP695737 Whirlpool Door
36W10861223 Whirlpool Door Appliance
37W10861225 Whirlpool Dryer White Door Handle
38W11035878 Whirlpool Bearing and Seal
39W10811916 Whirlpool Plug
40WP691366 Whirlpool Dryer Idler Pulley Assembly
41W11222083 Whirlpool Power Cord
42W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
43W10823508 Whirlpool Gas Burner
44WP3390631 Whirlpool Screw
45WPW10157932 Whirlpool Seal Foam
46W11596046 Whirlpool Seal
