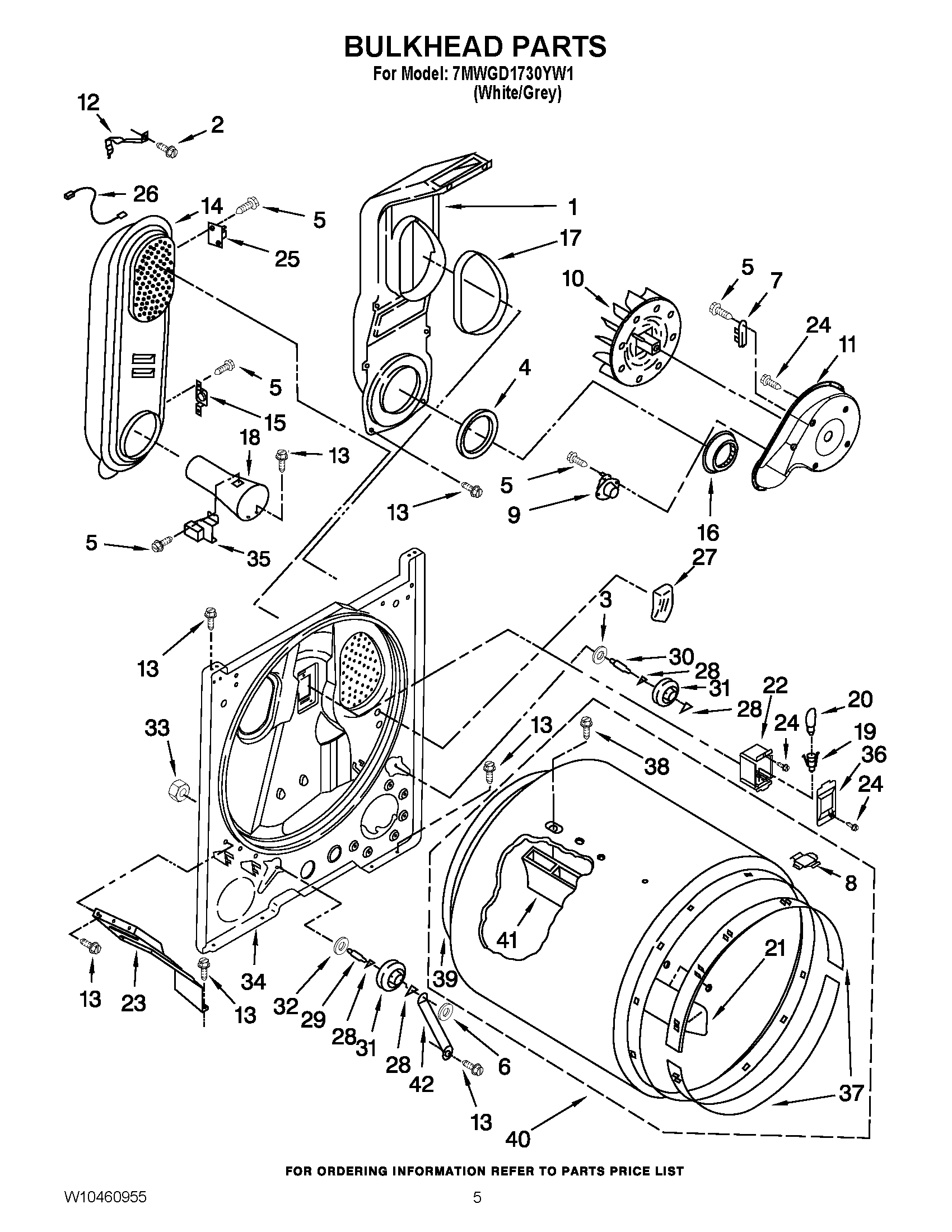

7MWGD1730YW1 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	NUT, PUSH ON
7	Fuse, Thermal (91 C)
8	Plug, Drum Hole
9	MAY 8318268
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	MAY W10423382
16	MAY 696302
17	MAY 339956
18	FUNNEL, BURNER LIGHT
19	MAY W10214261
20	MAY 3406124
21	BAFFLE, DRUM (SHORT)
22	MAY 3977373
23	BRACKET, BULKHEAD CHUTE
24	SCREW
25	MAY 280010
26	WIRE JUMPER
27	MAY 3976479
28	WASHER, TRI RING
29	MAY W10359270
30	MAY W10359269
31	MAY 3397590
32	WASHER
33	MAY W10298789
34	MAY 3403414
35	MAY 338906
36	MAY 3402841
37	Bearing, Ring
38	MAY W10219342
39	MAY W10352407
40	MAY 695587
41	BAFFLE, DRUM (LONG)
42	MAY 3976434
