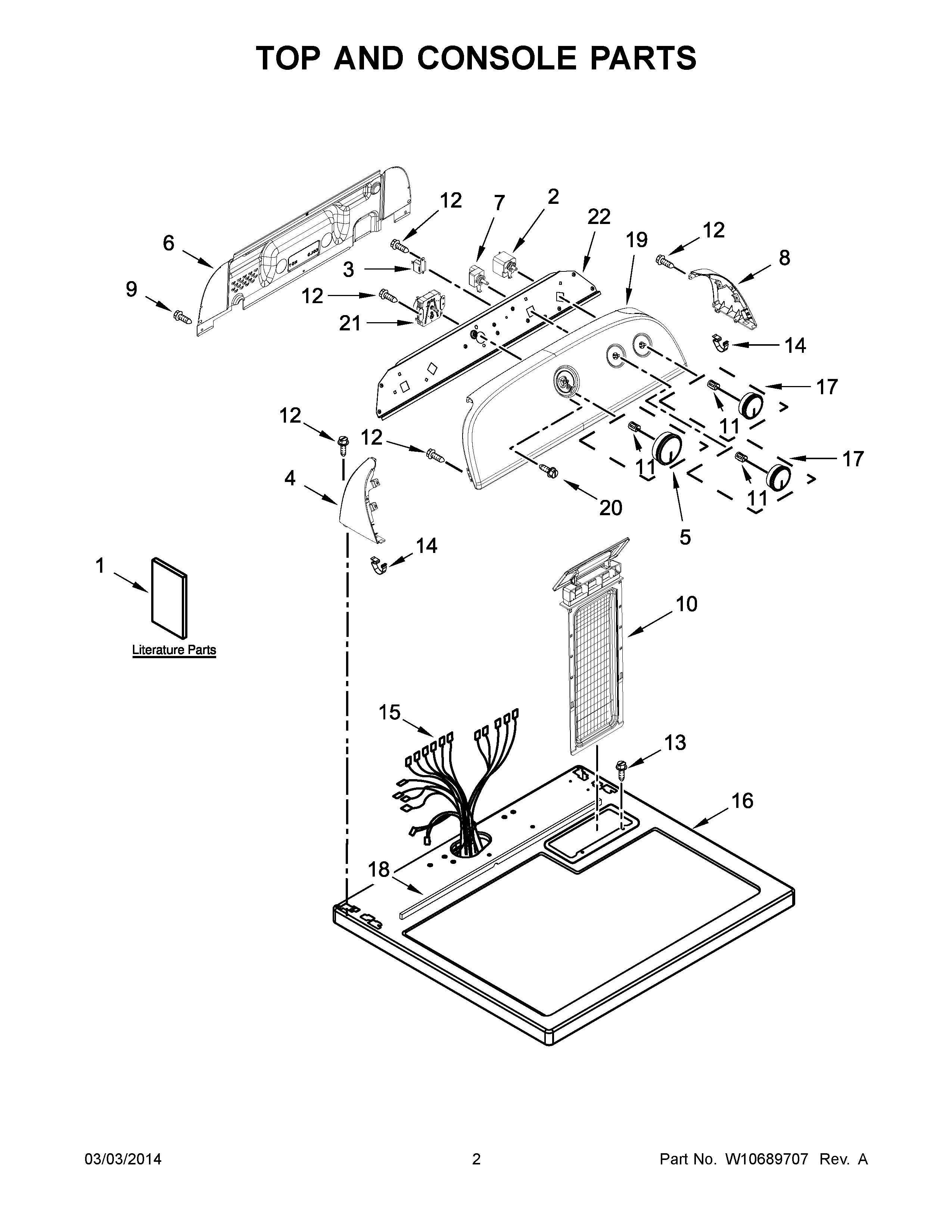

7MWGD1800DM0 02 – TOP AND CONSOLE PARTS

7MWGD1800DM0 02 – TOP AND CONSOLE PARTS

Written by

in

7MWGD1800DM0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1WIRING DIAGRAM
2WPW10117655 Whirlpool Dryer Start Switch
3WP694419 Whirlpool Buzzer Adjuster
4WPW10520782 Whirlpool Panel
5W10756270 Whirlpool Dryer Timer Knob
6W10556829 Whirlpool Rear Panel
7WP3399640 Whirlpool Switch
8WPW10520780 Whirlpool Panel
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP8312709 Whirlpool Endcap Clip
15W10640701 Whirlpool Wire Harness
16WP8563663 Whirlpool Top Assembly
18W10316616 Whirlpool Seal
19CONSOLE (WHITE)
20WP3400818 Whirlpool Screw
21WPW10185981 Whirlpool Timer
22BRACKET, CONTROL
