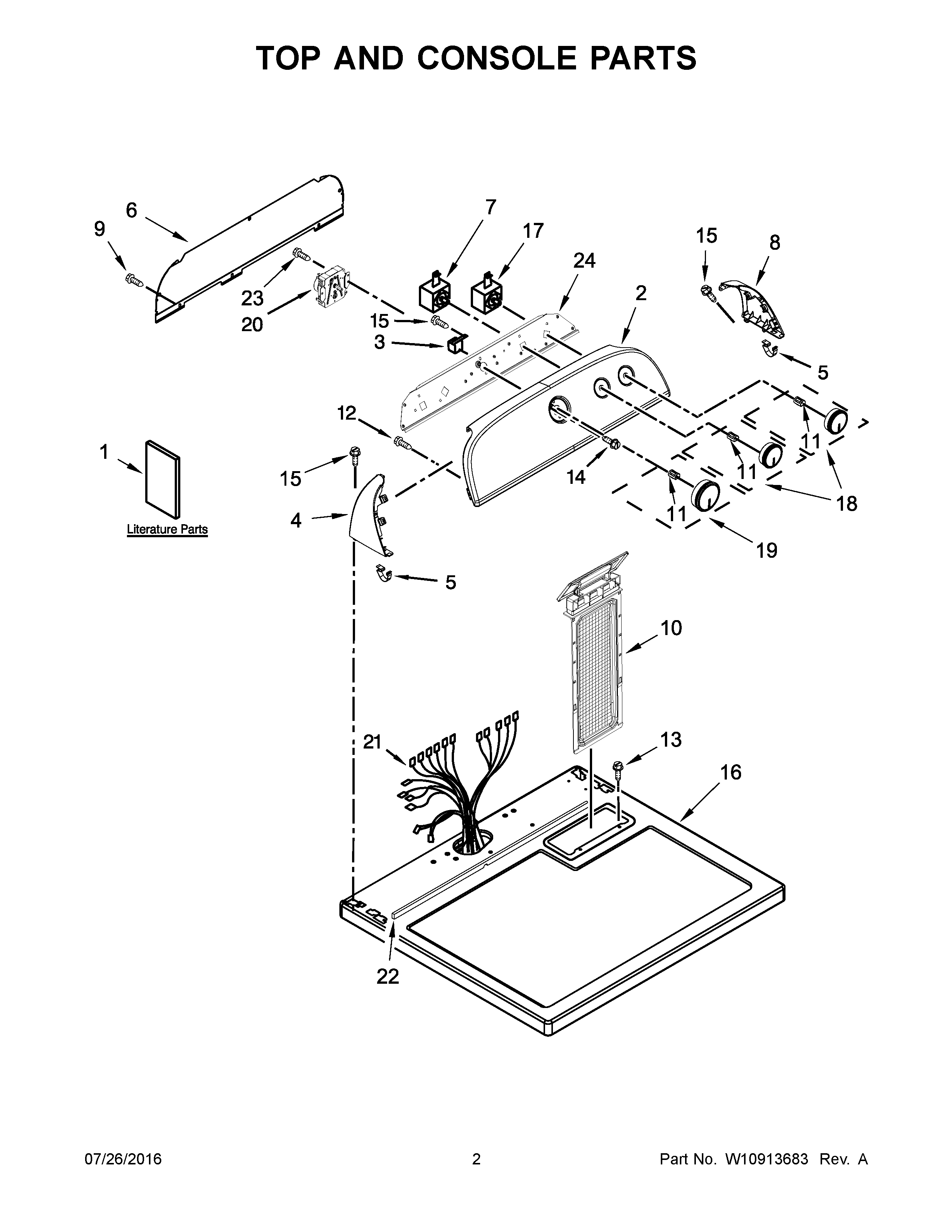

7MWGD1800EM1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1B	WIRING DIAGRAM
1A	USE AND CARE GUIDE
2	CONSOLE (WHITE)
3	WP694419 Whirlpool Buzzer Adjuster
4	WPW10520782 Whirlpool Panel
5	WP8312709 Whirlpool Endcap Clip
6	W10556829 Whirlpool Rear Panel
7	W11050715 Whirlpool Switch
8	WPW10520780 Whirlpool Panel
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP693995 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	WP90767 Whirlpool Screw
16	WPW10225059 Whirlpool Top
17	WPW10117655 Whirlpool Dryer Start Switch
19	W10756270 Whirlpool Dryer Timer Knob
20	WPW10185981 Whirlpool Timer
21	W11523105 Whirlpool Wire Harness
22	W10316616 Whirlpool Seal
23	WP3400818 Whirlpool Screw
24	BRACKET, CONTROL
