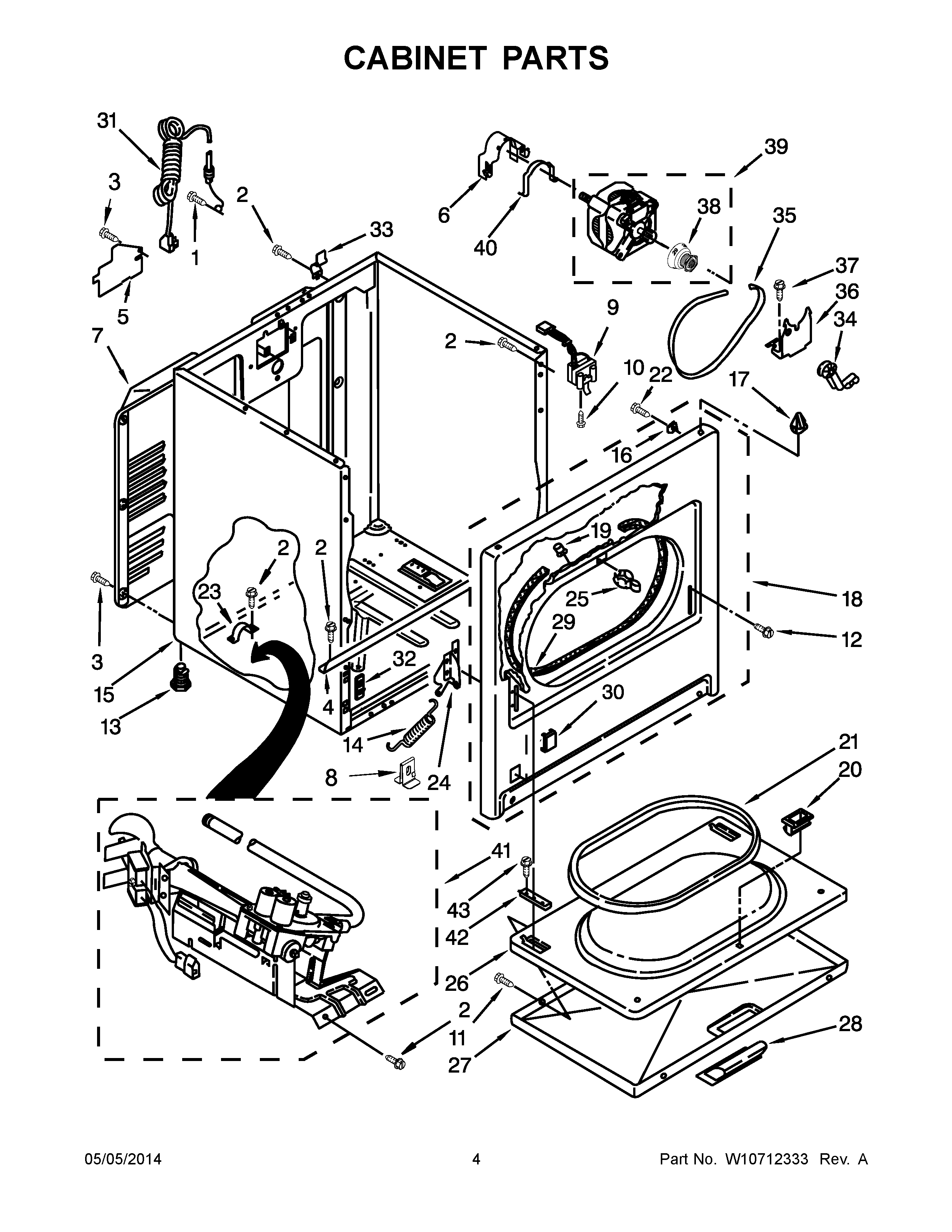

7MWGD1900DW1 03 – CABINET PARTS

7MWGD1900DW1 03 – CABINET PARTS

Written by

in

7MWGD1900DW1 03 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4BRACKET, CABINET
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
8W10575896 Whirlpool Clip
9WP3406107 Whirlpool Dryer Door Switch
10WP3395530 Whirlpool Screw
11WP488627 Whirlpool Refrigerator Screw
12Screw, 10-32 x 1/2
13FEET-LVLNG (SET OF 4)
14WPW10041960 Whirlpool Door Spring
158533643 Whirlpool Dryer White Cabinet
16WP98234 Whirlpool Nut
17WP8066092 Whirlpool Panel Clip
18279740 Whirlpool Panel Primary with O/S2
19279220 Whirlpool Clip
20WP3389441 Whirlpool Door Catch
21W10906683 Whirlpool Door Seal
22SCREW
23341029 Whirlpool Clamp
24WP8066056 Whirlpool Door Hinge
24WP8066057 Whirlpool Door Hinge
25279570 Whirlpool Dryer Door Latch Kit
26WP695737 Whirlpool Door
27WP3393549 Whirlpool Door Assembly
28W10877261 Whirlpool Handle Assembly
29W11035878 Whirlpool Bearing and Seal
30W10811916 Whirlpool Plug
31W11222083 Whirlpool Power Cord
32W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33WP8066217 Whirlpool Hinge
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35341241 Whirlpool Dryer Drum Belt
36WP348780 Whirlpool Base
373400500 Whirlpool Screw
38WP8066184 Whirlpool Dryer Motor Pulley
39279827 Whirlpool Dryer Drive Motor
40CLAMP
41W10823508 Whirlpool Gas Burner
42W11252547 Whirlpool Clip Assembly
43WP308685 Whirlpool Microwave Screw
