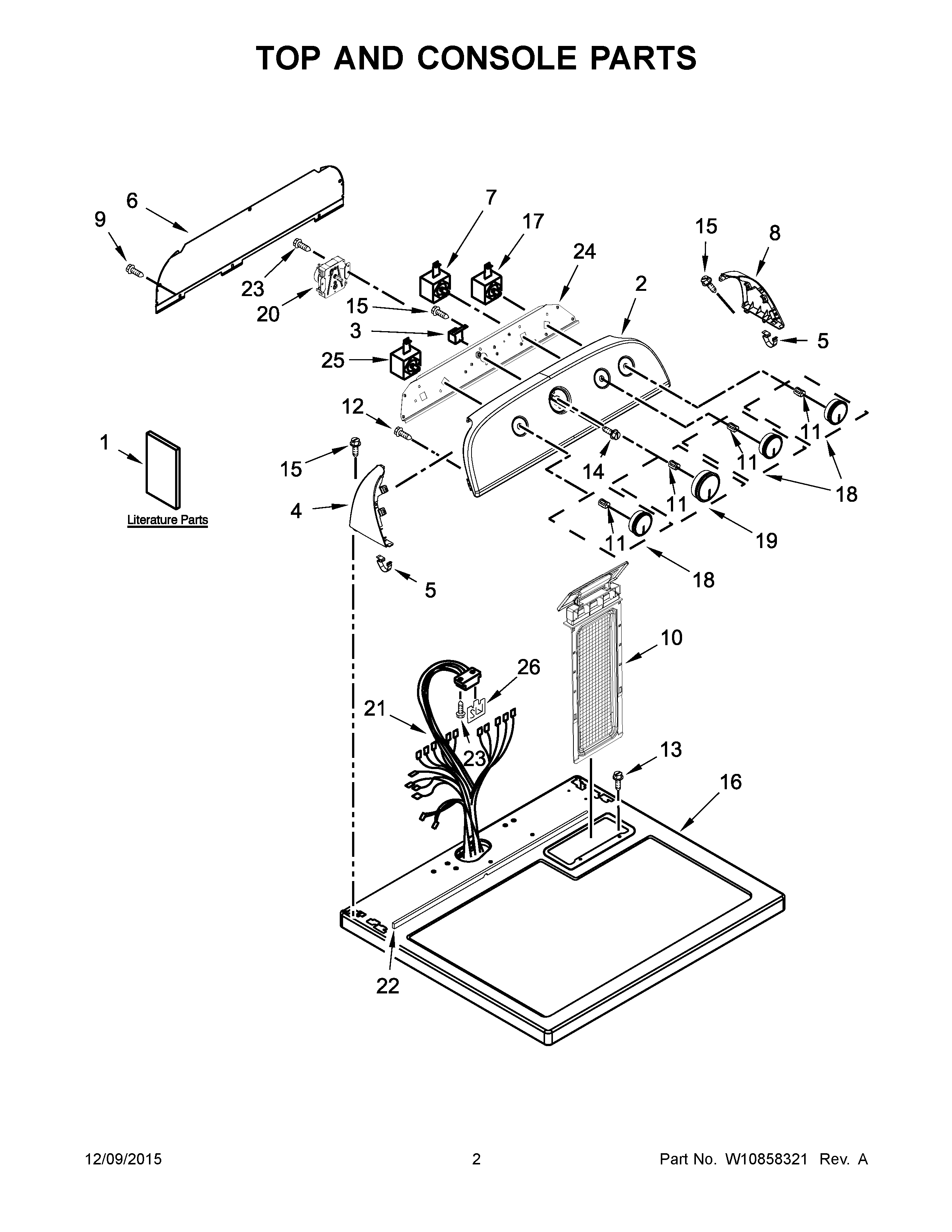

7MWGD1900EW0 02 – TOP AND CONSOLE PARTS

7MWGD1900EW0 02 – TOP AND CONSOLE PARTS

Written by

in

7MWGD1900EW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BDIAGRAM, WIRING
1AUSE AND CARE GUIDE
2CONSOLE (WHITE)
3WP694419 Whirlpool Buzzer Adjuster
4WPW10520782 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10556829 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8WPW10520780 Whirlpool Panel
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP693995 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WPW10225059 Whirlpool Top
17WPW10117655 Whirlpool Dryer Start Switch
19W10756270 Whirlpool Dryer Timer Knob
20TIMER
21W10640708 Whirlpool Wire Harness
22W10316616 Whirlpool Seal
23WP3400818 Whirlpool Screw
24BRACKET, CONTROL
25WP3405156 Whirlpool Switch
26WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
