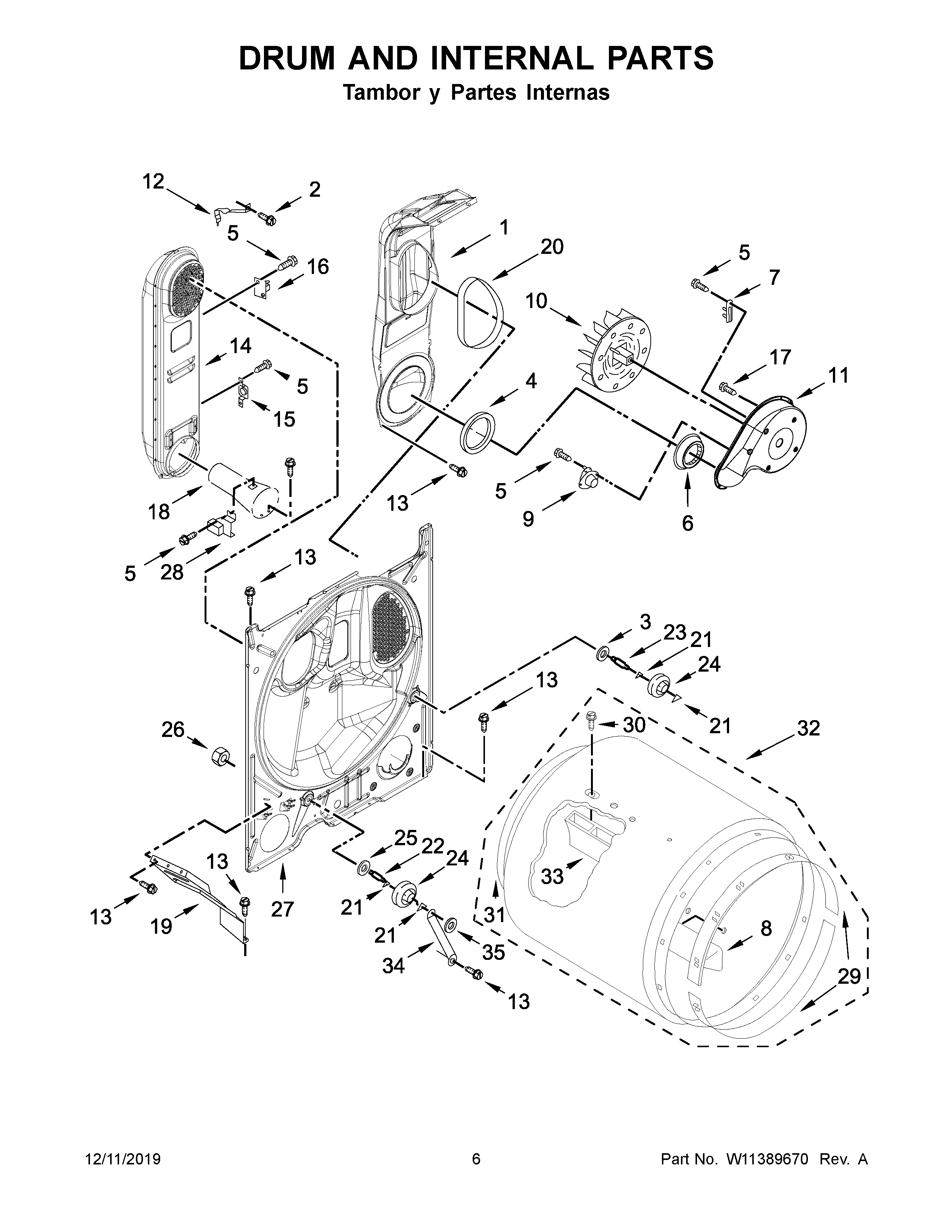

7MWGD1930JM0 04 – DRUM AND INTERNAL PARTS

7MWGD1930JM0 04 – DRUM AND INTERNAL PARTS

Written by

in

7MWGD1930JM0 04 – DRUM AND INTERNAL PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3403636 Whirlpool Drum Baffle
9WP3387134 Whirlpool Dryer Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13WP3390631 Whirlpool Screw
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
17WP488729 Whirlpool Refrigerator Door Screw
18WP8066049 Whirlpool Funnel Assembly
19W11398682 Whirlpool Bracket
20SEAL
21WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
22SHAFT SUPPORT ROLLER DRYER
23SHAFT SUPPORT ROLLER DRYER
24WPW10314173 Whirlpool Dryer Drum Support Wheel
25WP348197 Whirlpool Washer Assembly
26W11229607 Whirlpool Nut
27W11178668 Whirlpool Bulkhead
28WP338906 Whirlpool Dryer Gas Sensor
29279441 Whirlpool Front Bearing Ring
30W10853898 Whirlpool Screw
31W10612022 Whirlpool Felt Seal
32W10899578 Whirlpool Dryer Drum Assembly
33BAFFLE-DRM
34W11684613 Whirlpool Bracket
35WP90296 Whirlpool Clip
