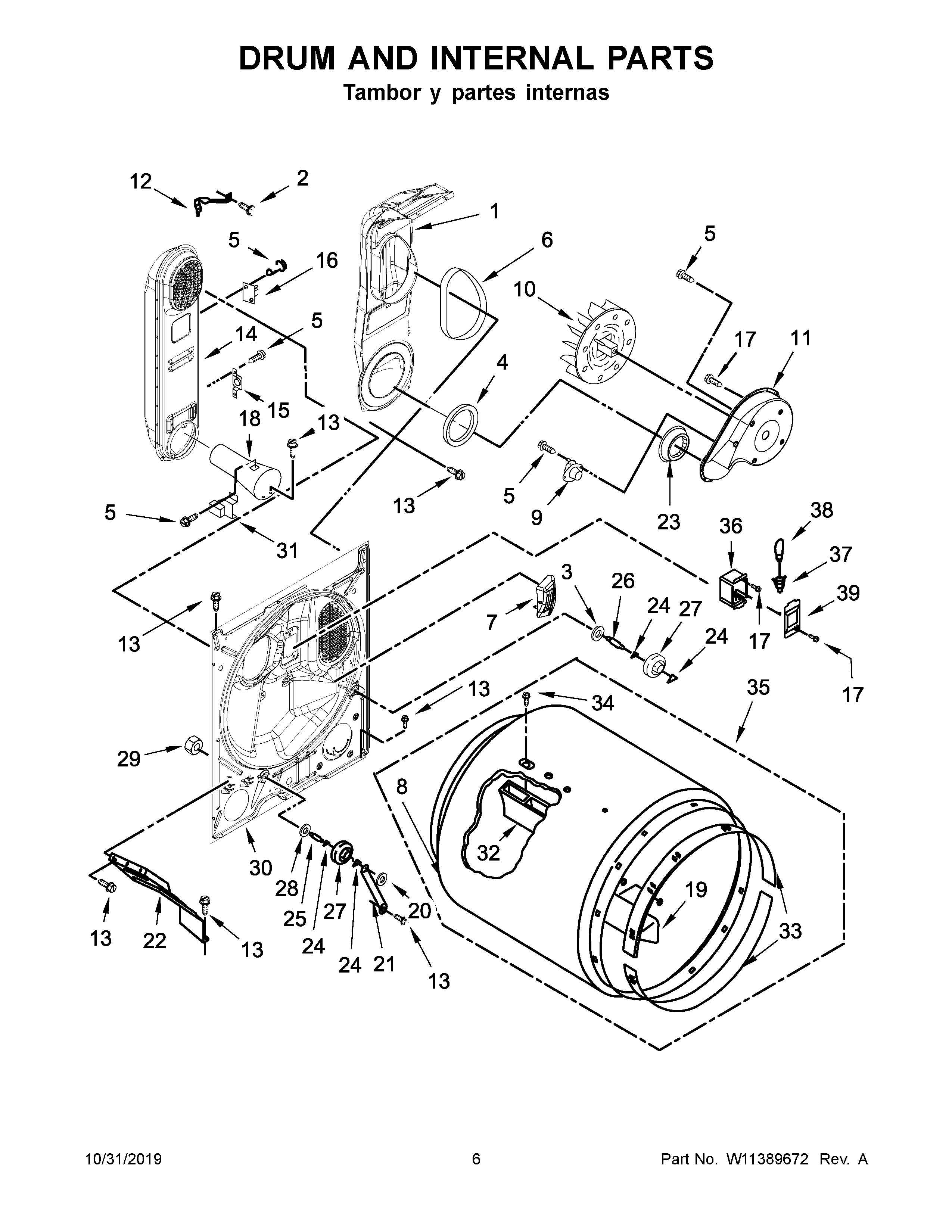

7MWGD2040JM0 04 – DRUM AND INTERNAL PARTS

7MWGD2040JM0 04 – DRUM AND INTERNAL PARTS

Written by

in

7MWGD2040JM0 04 – DRUM AND INTERNAL PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6SEAL
7W10853313 Whirlpool Sensor
8W10612022 Whirlpool Felt Seal
9WP3387134 Whirlpool Dryer Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13WP3390631 Whirlpool Screw
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
17WP488729 Whirlpool Refrigerator Door Screw
18WP8066049 Whirlpool Funnel Assembly
19WP3403636 Whirlpool Drum Baffle
20WP90296 Whirlpool Clip
21W11684613 Whirlpool Bracket
22W11398682 Whirlpool Bracket
23W11233063 Whirlpool Shield Assembly
24WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25SHAFT SUPPORT ROLLER DRYER
26SHAFT SUPPORT ROLLER DRYER
27WPW10314173 Whirlpool Dryer Drum Support Wheel
28WP348197 Whirlpool Washer Assembly
29W11229607 Whirlpool Nut
30W10828905 Whirlpool Bulkhead OS1
31WP338906 Whirlpool Dryer Gas Sensor
32BAFFLE-DRM
33279441 Whirlpool Front Bearing Ring
34W10853898 Whirlpool Screw
35W10899578 Whirlpool Dryer Drum Assembly
368578825 Whirlpool Bracket
37W11222979 Whirlpool Socket
38WP22002263 Whirlpool Dryer 10W Light Bulb
39W11226088 Whirlpool Lens Assembly
