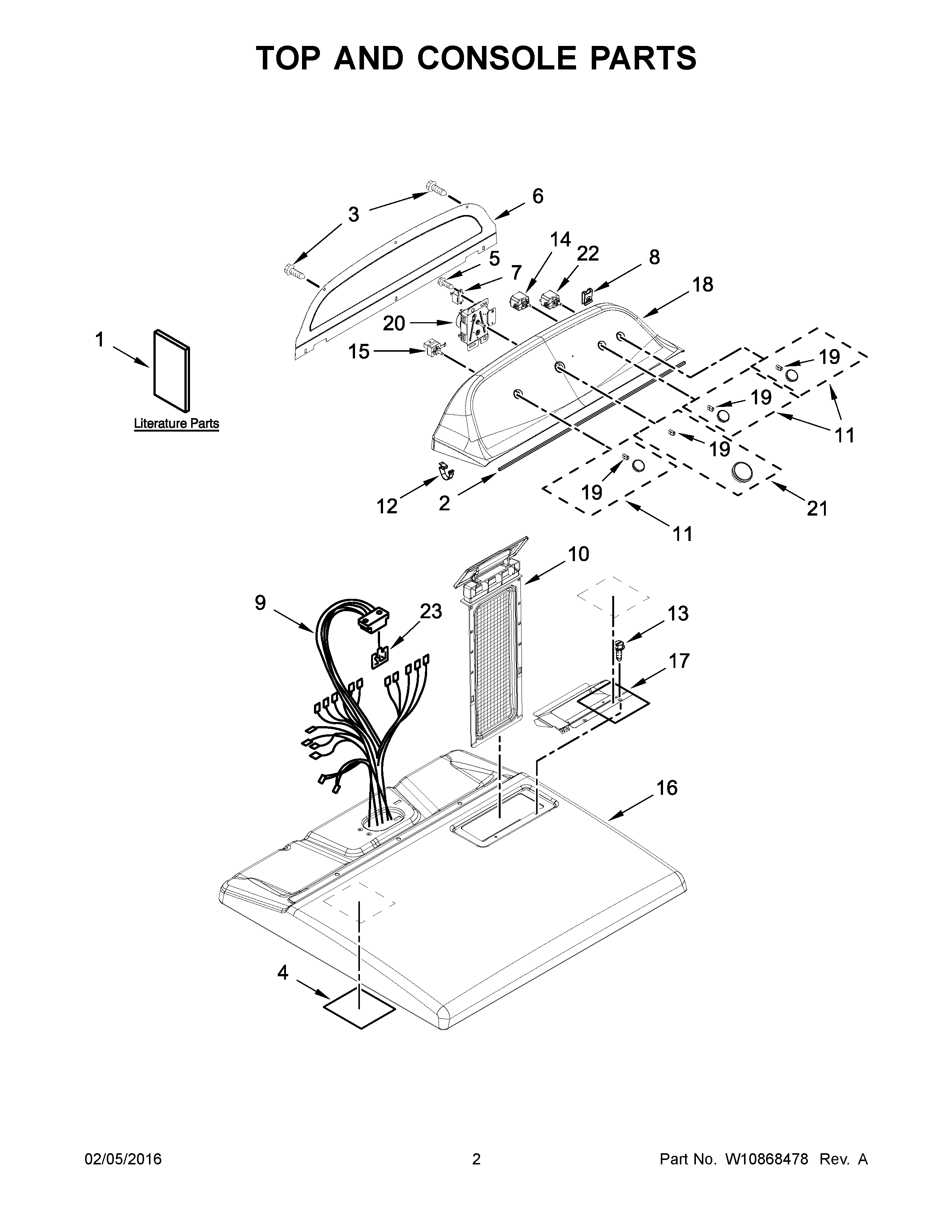

7MWGD2150EN0 02 – TOP AND CONSOLE PARTS

7MWGD2150EN0 02 – TOP AND CONSOLE PARTS

Written by

in

7MWGD2150EN0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
2W11721376 Whirlpool Seal Assembly
3WP693995 Whirlpool Screw
4W10123956 Whirlpool Sound Absorber
5WP9740848 Whirlpool Dishwasher Screw
6W10756582 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8W11213336 Whirlpool Nut
9HARNESS, WIRING
10SCREEN
11W10875172 Whirlpool Knob
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14WPW10446920 Whirlpool Switch Start
15W10562713 Whirlpool Switch Assembly
16W11222514 Whirlpool Top Assembly
17W10662472 Whirlpool Cover Assembly
18ASSEMBLY, CONSOLE (WHITE)
19WP8536939 Whirlpool Spring Clip
20W11399035 Whirlpool Timer
21W10875170 Whirlpool Knob
22W10648614 Whirlpool Switch Assembly
23WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
