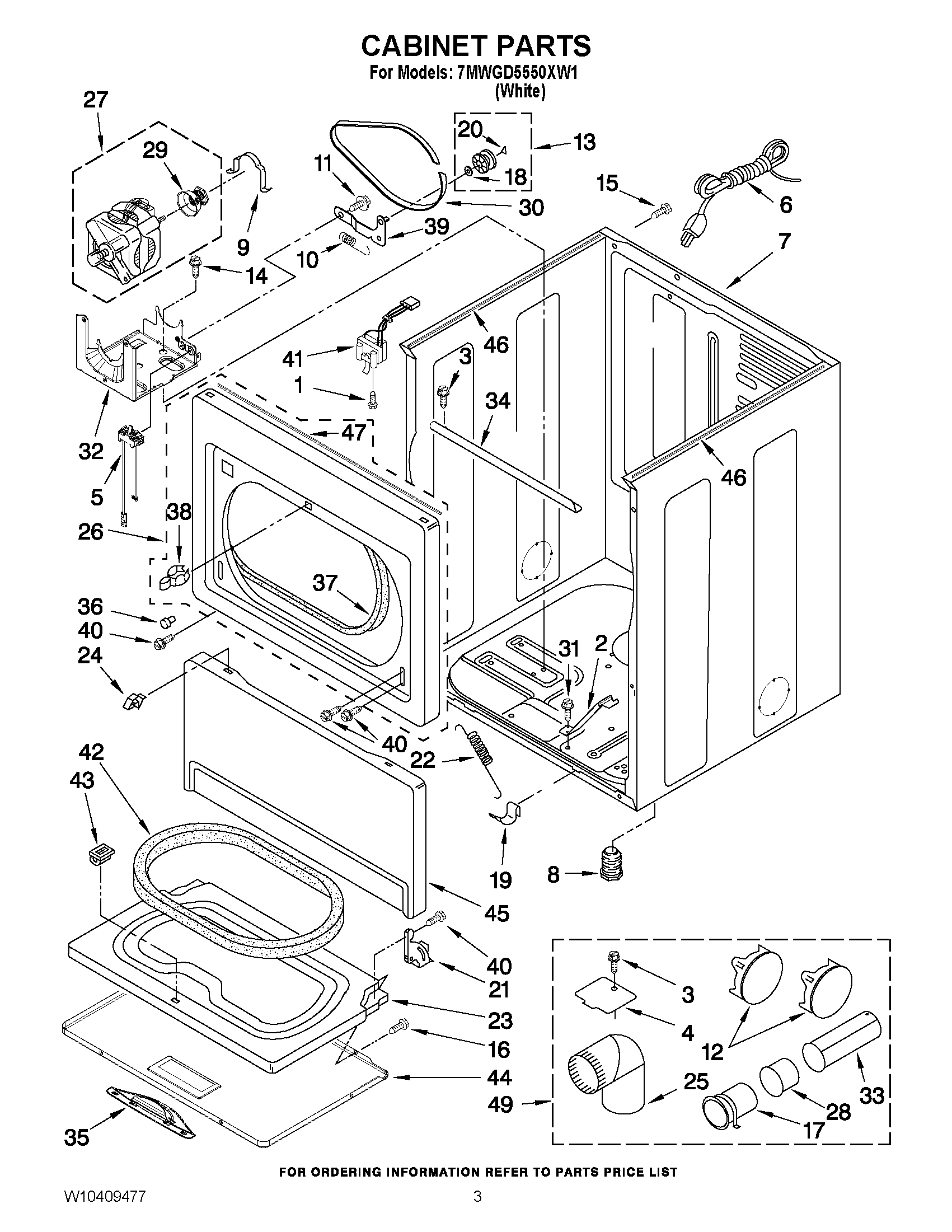

7MWGD5550XW1 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
NI	W10331132 Whirlpool Plug
1	WP3395530 Whirlpool Screw
2	W10181903 Whirlpool Bracket
3	WP488729 Whirlpool Refrigerator Door Screw
4	WPW10354249 Whirlpool Cover
5	WPW10411937 Whirlpool Switch
6	W11222083 Whirlpool Power Cord
7	W11417441 Whirlpool Cabinet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	SCREW
15	WP90767 Whirlpool Screw
16	WP488627 Whirlpool Refrigerator Screw
17	WP8563747 Whirlpool Exhaust Pipe
18	WPW10121334 Whirlpool Washer
19	WPW10291934 Whirlpool Clip
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WP3387560 Whirlpool Door Hinge
21	WP3387559 Whirlpool Door Hinge
22	WP3387565 Whirlpool Door Spring
23	WP8066045 Whirlpool Door Assembly
24	WP3388229 Whirlpool Dryer Spring Clip
25	WPW10416072 Whirlpool Elbow
26	PANEL, FRONT (WHITE)
27	279787 Whirlpool Dryer Drive Motor
28	WPW10331278 Whirlpool Exhaust Pipe
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	WP693995 Whirlpool Screw
32	W11481730 Whirlpool Bracket
33	WP8563749 Whirlpool Exhaust Pipe
34	W10236068 Whirlpool Bracket
35	WPW10284093 Whirlpool Handle
36	693152 Whirlpool Bumper
37	WP3387242 Whirlpool Seal
39	W10837240 Whirlpool Dryer Idler Pulley
40	WP308685 Whirlpool Microwave Screw
41	WP3406107 Whirlpool Dryer Door Switch
42	W10325058 Whirlpool Door Seal
43	279570 Whirlpool Dryer Door Latch Kit
44	DOOR, OUTER (WHITE)
45	WP3406797 Whirlpool Toe Panel
46	W10336128 Whirlpool Seal
47	W10312811 Whirlpool Seal
