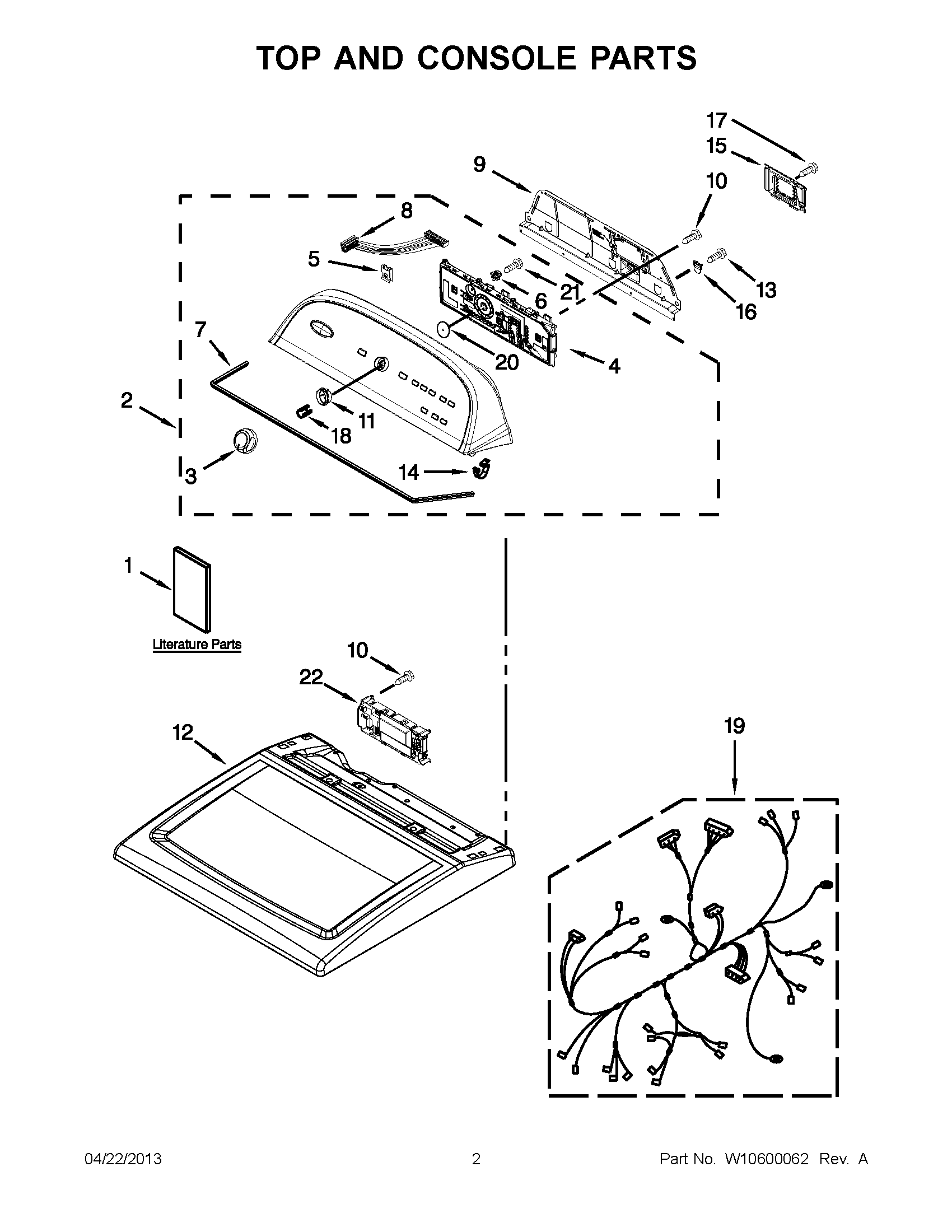

7MWGD5600BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1TECH SHEET
1OWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
2WPW10572892 Whirlpool Control Panel
3WPW10251392 Whirlpool Knob
4WPW10269624-includeCORE Whirlpool WPW10269624 Refrigerator Electronic Control Board + Core
5W11213336 Whirlpool Nut
6W10274524 Whirlpool Grommet
7W10280079 Whirlpool Seal
8W10285495 Whirlpool Wire Harness
9W10550615 Whirlpool Rear Panel
11W10325119 Whirlpool Spacer
12TOP (WHITE)
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15COVER, TERMINAL BLOCK
16W10279552 Whirlpool Plug
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253982 Whirlpool Wire Harness
20W10323092 Whirlpool Seal
21W10853898 Whirlpool Screw
22WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
