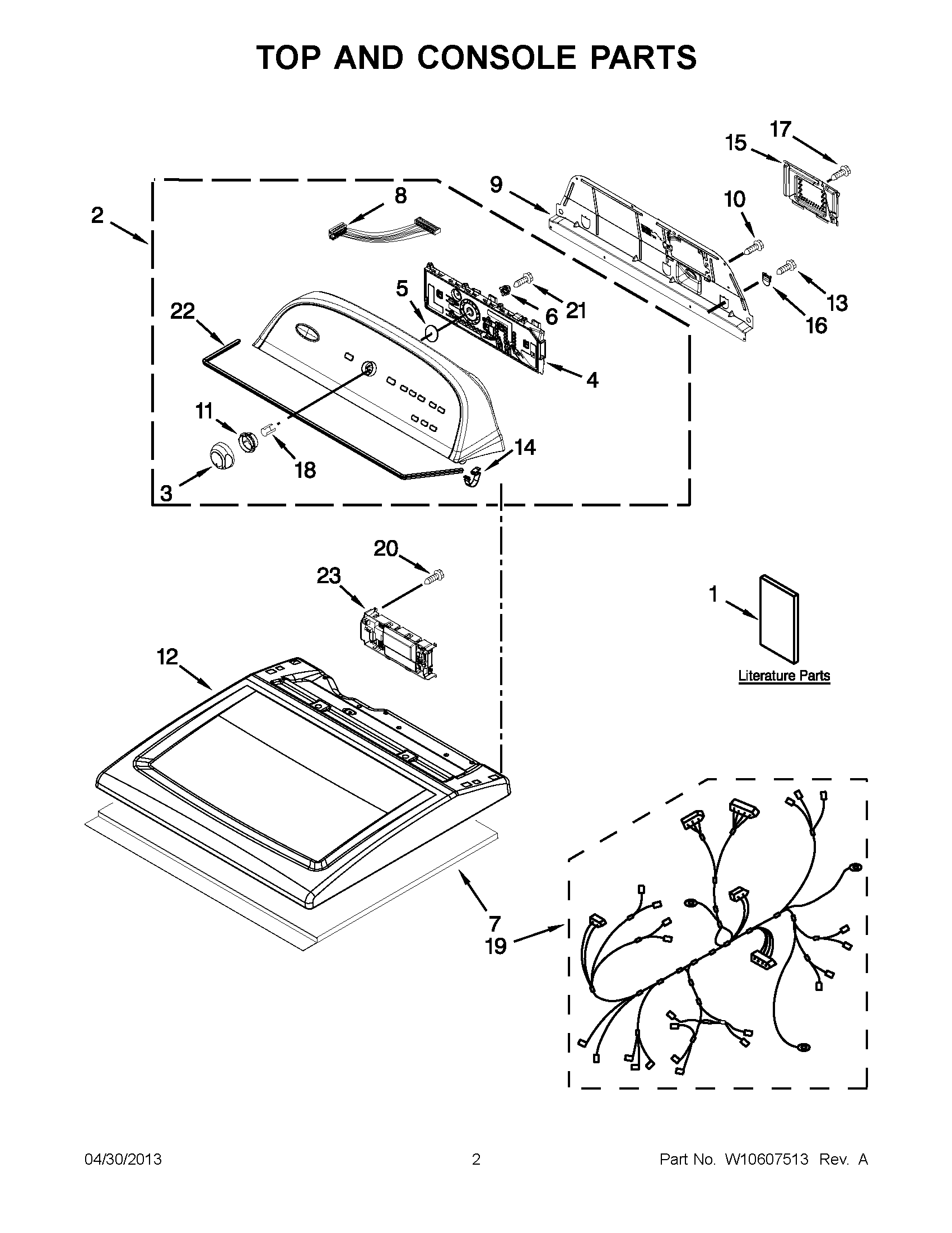

7MWGD5700BC0 01 – TOP AND CONSOLE PARTS

7MWGD5700BC0 01 – TOP AND CONSOLE PARTS

Written by

in

7MWGD5700BC0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1OWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
1WIRING DIAGRAM
2ASSEMBLY, CONSOLE (CHROME SHADOW)
3WPW10251394 Whirlpool Knob
4ASSEMBLY, USER INTERFACE
5W10323092 Whirlpool Seal
6W10274524 Whirlpool Grommet
7W10123956 Whirlpool Sound Absorber
8CABLE, USER INTERFACE
9W10550615 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11W10325119 Whirlpool Spacer
12W11641122 Whirlpool Top
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15COVER, TERMINAL BLOCK
16W10279552 Whirlpool Plug
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10287253 Whirlpool Wire Harness
20W11213336 Whirlpool Nut
21W10853898 Whirlpool Screw
22W10280079 Whirlpool Seal
23WPW10214008-includeCORE Whirlpool WPW10214008 Washer Electronic Control Board + Core
