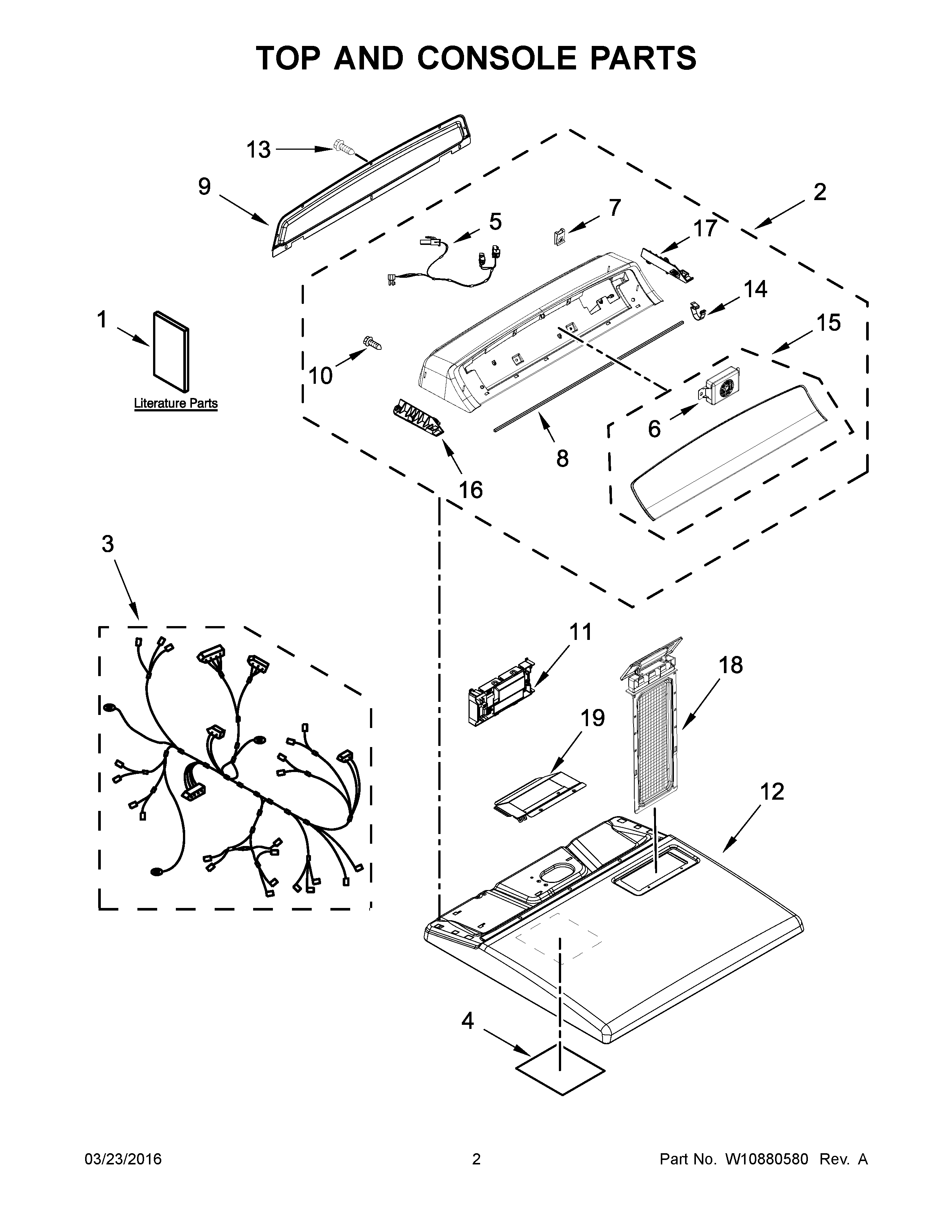

7MWGD7000EW0 02 – TOP AND CONSOLE PARTS

7MWGD7000EW0 02 – TOP AND CONSOLE PARTS

Written by

in

7MWGD7000EW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BQUICKSTART GUIDE
1DWIRING DIAGRAM
1CTECH SHEET
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
2CONSOLE ASSEMBLY (COMPLETE) (WHITE)
3W10706065 Whirlpool Wire Harness
4W11668653 Whirlpool Sound Panel
5W10634454 Whirlpool Wire Harness User Interface
6W11123146 Whirlpool Speaker
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10775189 Whirlpool Rear Panel
10WP9740848 Whirlpool Dishwasher Screw
11WPW10691552-includeCORE Whirlpool WPW10691552 Washer Electronic Control Board + Core
12W11222514 Whirlpool Top Assembly
13WP90767 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15FASCIA
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18SCREEN
19W10662472 Whirlpool Cover Assembly
