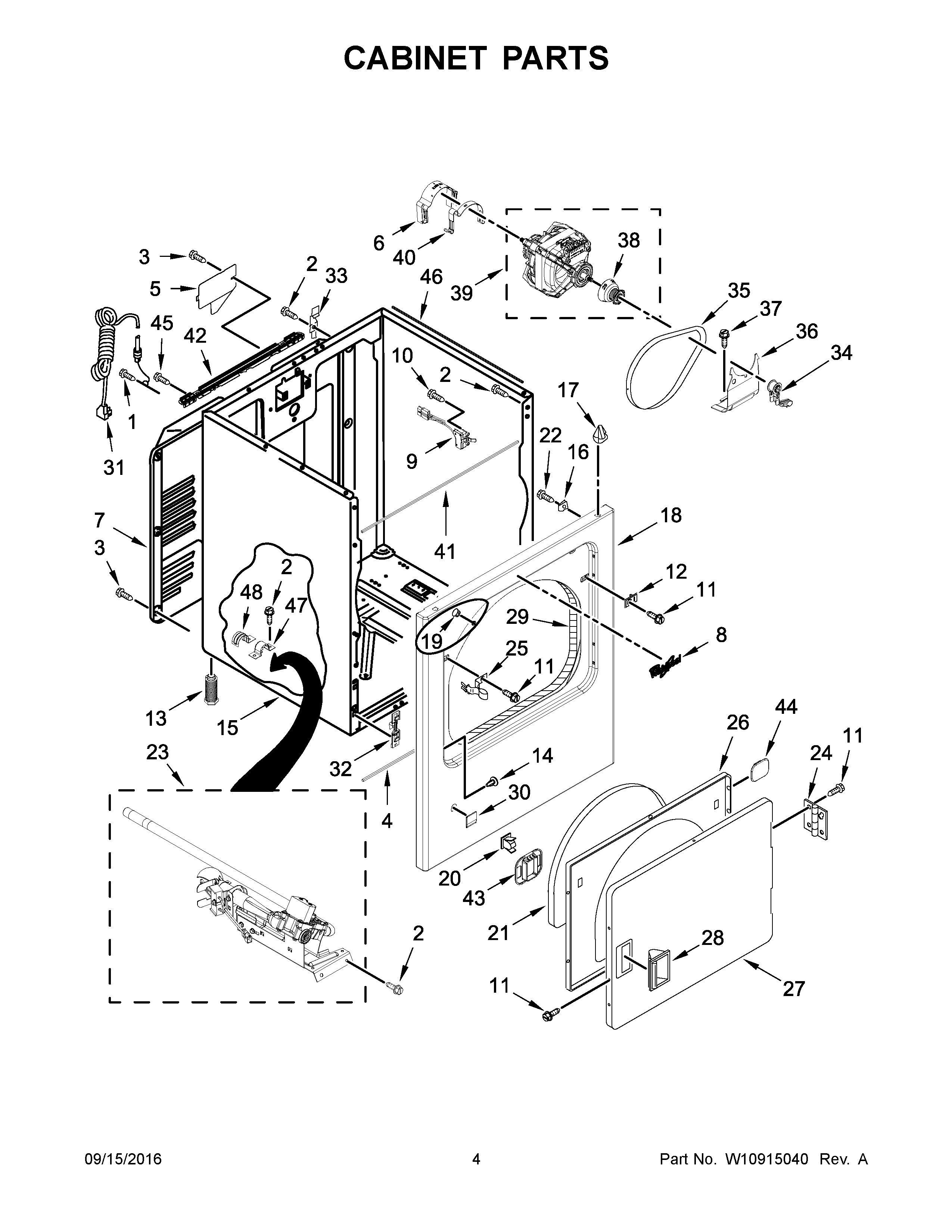

7MWGD7000EW1 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10850756 Whirlpool Screw
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	W11596046 Whirlpool Seal
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	W11178521 Whirlpool Dishwasher Nameplate
9	WP3406107 Whirlpool Dryer Door Switch
10	WP3395530 Whirlpool Screw
11	WP488627 Whirlpool Refrigerator Screw
12	W11684591 Whirlpool Dryer Plug
14	WP3404413 Whirlpool Plug
15	8533643 Whirlpool Dryer White Cabinet
16	WP98234 Whirlpool Nut
17	WP8066092 Whirlpool Panel Clip
18	W10248059 Whirlpool Panel
19	279220 Whirlpool Clip
20	W11429587 Whirlpool Catch Assembly
21	SEAL-DOOR DRYER
22	SCREW
23	W10823508 Whirlpool Gas Burner
24	WPW10362431 Whirlpool Hinge Assembly
25	W11429589 Whirlpool Strike
26	WPW10463967 Whirlpool Door Assembly
27	W10861224 Whirlpool Door
28	W10861225 Whirlpool Dryer White Door Handle
29	W11035878 Whirlpool Bearing and Seal
30	W10811916 Whirlpool Plug
31	W11222083 Whirlpool Power Cord
32	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33	W11715722 Whirlpool Hinge
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	W11025122 Whirlpool Belt
36	WP348780 Whirlpool Base
37	3400500 Whirlpool Screw
38	WP8066184 Whirlpool Dryer Motor Pulley
39	279827 Whirlpool Dryer Drive Motor
40	CLAMP
41	W10316619 Whirlpool Seal
42	W10641295 Whirlpool Bracket
43	WPW10529197 Whirlpool Catch Assembly
44	W11173656 Whirlpool Cover
45	W11693756 Whirlpool Screw Assembly
46	WPW10157932 Whirlpool Seal Foam
47	341029 Whirlpool Clamp
48	CLAMP, PIPE
