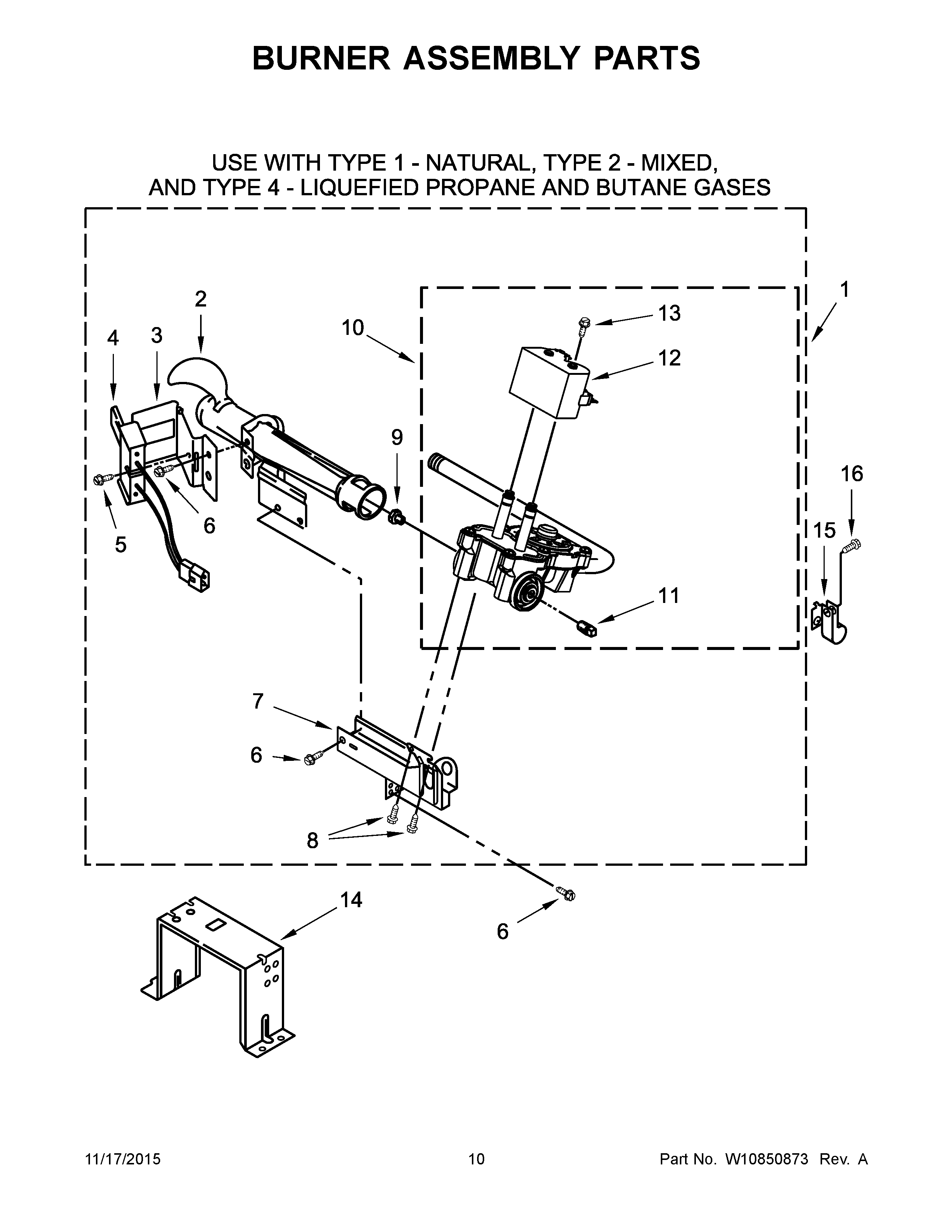

7MWGD72HEDW1 06 – BURNER ASSEMBLY PARTS

Products

PositionProduct
NIW11581317 Whirlpool LP Gas Connector
NICABINET (NOT A SERVICEABLE PART)
1280119 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP15418 Whirlpool Gas Orifice
10W10622154 Whirlpool Gas Valve
11W10295523 Whirlpool Plug
12WPW10328463 Whirlpool Valve Coil
13326049536 Whirlpool Screw
14Bracket, Support
153978776 Whirlpool Bracket
16WP488729 Whirlpool Refrigerator Door Screw
