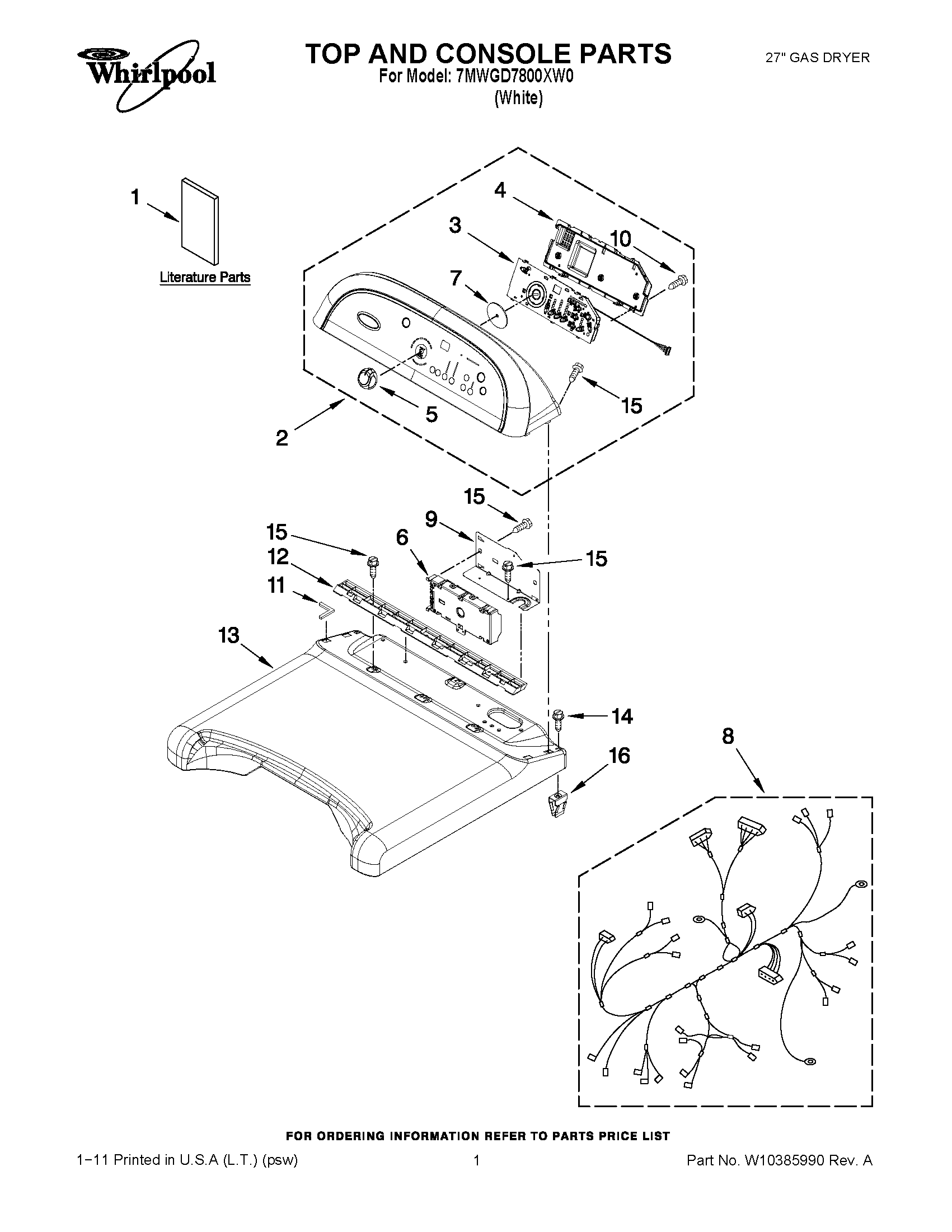

7MWGD7800XW0 01 – TOP AND CONSOLE PARTS

7MWGD7800XW0 01 – TOP AND CONSOLE PARTS

Written by

in

7MWGD7800XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1TECH, SHEET
1INSTALLATION INSTRUCTION
2PANEL, CONSOLE (WHITE)
3WPW10298625 Whirlpool Electronic Control Board
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6CONTROL ELECTRONIC
7SEAL, USER INTERFACE
8W10319805 Whirlpool Wire Harness
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10185554 Whirlpool Seal Assembly
12Bracket, Console
13TOP
14W10131402 Whirlpool Screw
15WP33001882 Whirlpool Screw
16W10112673 Whirlpool Clip
