7MWGD8000EW1 05 – DOOR PARTS

7MWGD8000EW1 05 – DOOR PARTS

Written by

in

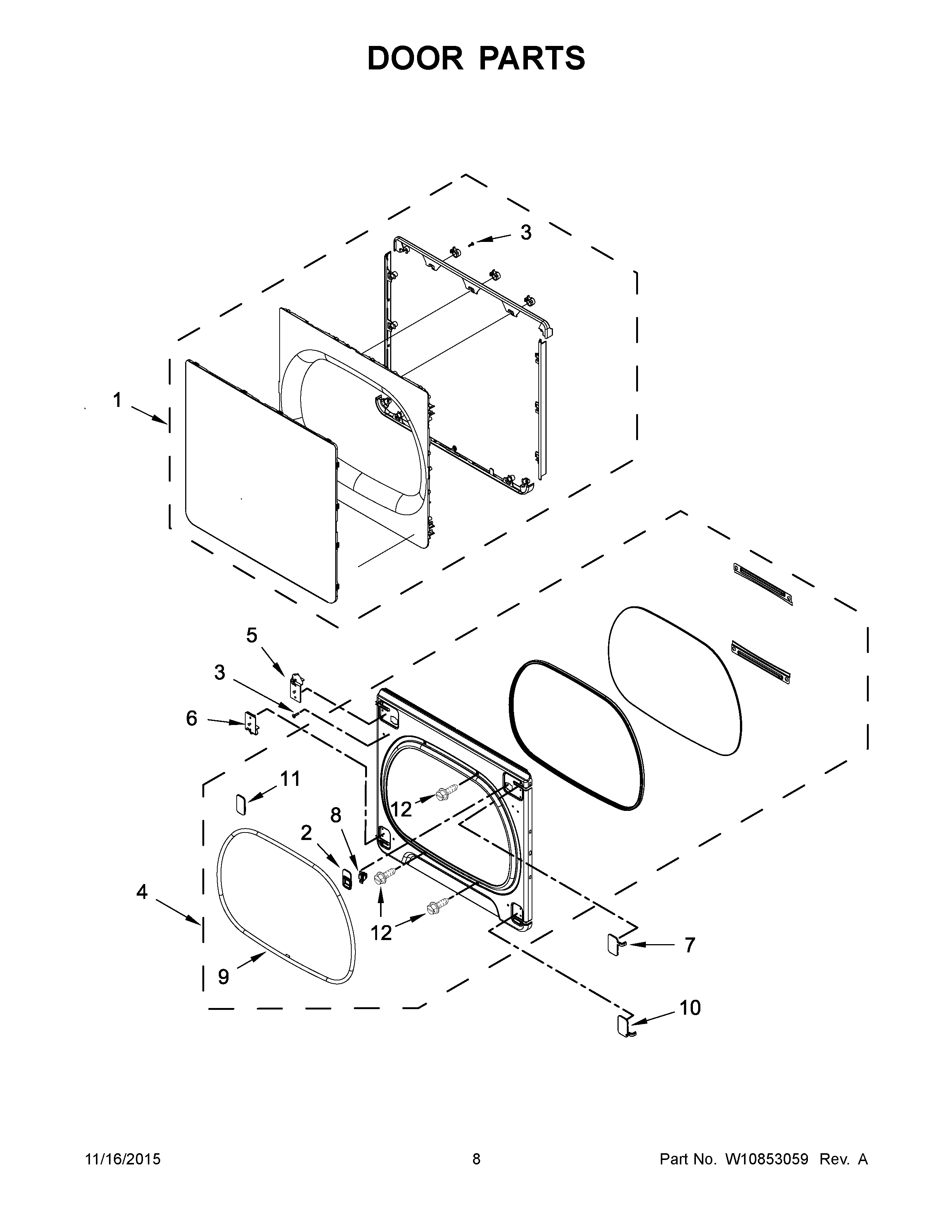

7MWGD8000EW1 05 – DOOR PARTS

Products

PositionProduct
1W10614976 Whirlpool Door
2W11103932 Whirlpool Bezel Assembly
3SCREW
4W10614997 Whirlpool Door
5W10850024 Whirlpool Hinge Assembly
6W10850044 Whirlpool Hinge
7W10631395 Whirlpool Cover Assembly
8W11429587 Whirlpool Catch Assembly
9W10763835 Whirlpool Door Seal Assembly
10W10631396 Whirlpool Cover
11W10631410 Whirlpool Plate
12WP488627 Whirlpool Refrigerator Screw
